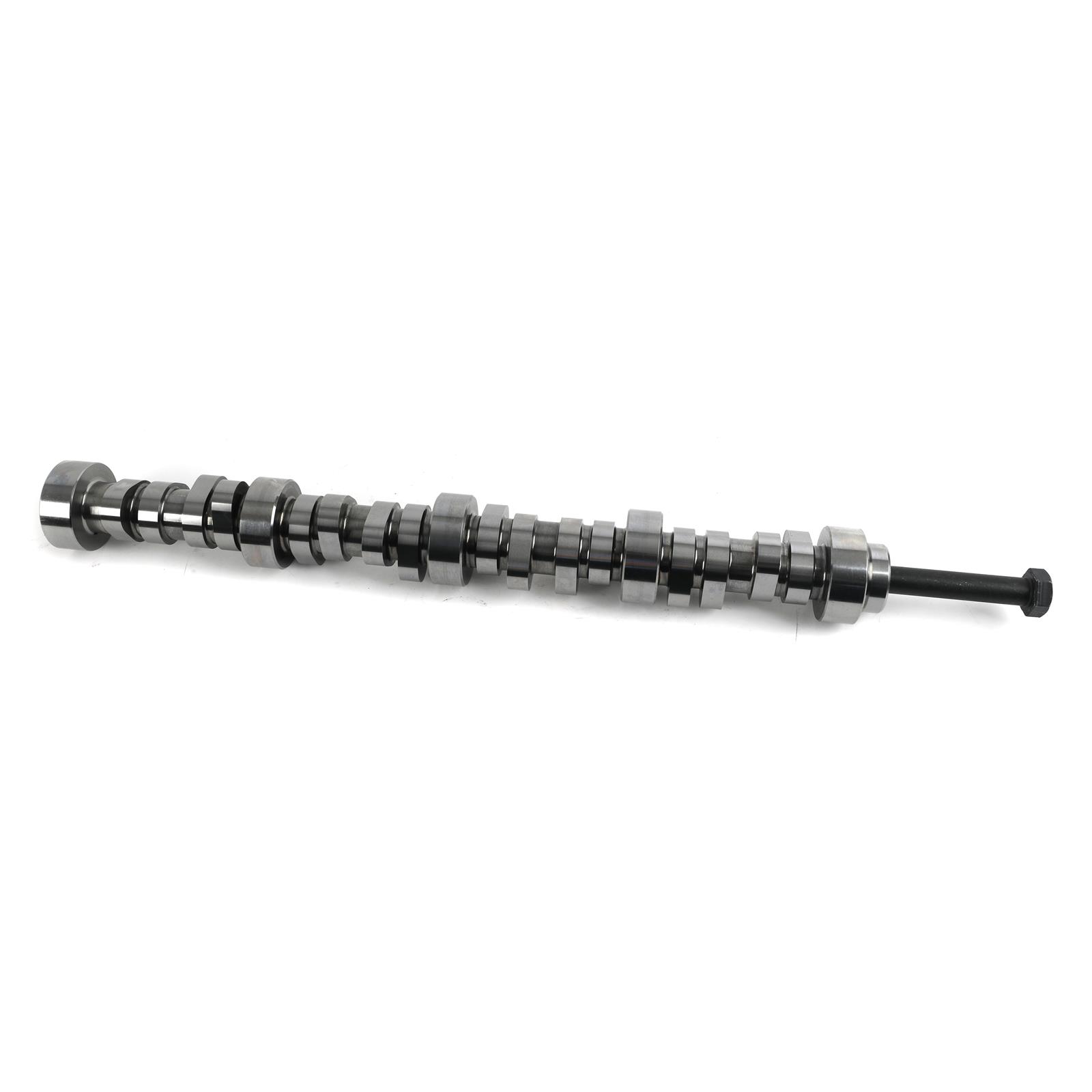

COMP Cams Camshaft GM Gen IV LS2/LS3 AFM LAFME264
COMP Cams Camshaft GM Gen IV LS2/LS3 AFM LAFME264
A$1,478.65
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
FSL Cams for the GM Gen III/IV three-bolt and GEN IV single-bolt applications can produce a 30 to 47 HP increase in peak power, without requiring a valve spring upgrade or tuning. The best part of these new FSL cams is the incredible power gains that come without the risk of non-compliance with emissions regulations.
Product Overview
FSL Cams for the GM Gen III/IV three-bolt and GEN IV single-bolt applications can produce a 30 to 47 HP increase in peak power, without requiring a valve spring upgrade or tuning. The best part of these new FSL cams is the incredible power gains that come without the risk of non-compliance with emissions regulations.
Product Details
| Advertised Exhaust Duration Deactivation Cylinders: | 273 |
|---|---|
| Advertised Exhaust Duration Non-Deactivation Cylinders: | 264 |
| Advertised Intake Duration Deactivation Cylinders: | 286 |
| Advertised Intake Duration Non-Deactivation Cylinders: | 274 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1700-6900 |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | Single-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | FSL |
| Description: | FSL 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV |
| Engine Family: | Gen IV AFM ONLY EO Camshafts |
| Exhaust Duration at .050 inch Lift Deactivation Cylinders: | 224 |
| Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: | 222 |
| Exhaust Valve Lift Deactivation Cylinders: | 0.541 |
| Exhaust Valve Lift Non-Deactivation Cylinders: | 0.541 |
| Grind Number: | LAFME264 |
| Intake Duration at .050 Inch Lift Deactivation Cylinders: | 212 |
| Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: | 210 |
| Intake Valve Lift Deactivation Cylinders: | 0.541 |
| Intake Valve Lift Non-Deactivation Cylinders: | 0.541 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 116 |
| Part Number: | cca646-201-13 |
| Recommended Cam Install Kit: | 5623 |
| Title: | FSL 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV |
| VVT Limiter Required?: | No |
| Valve Springs Required: | 26906 |
Application Summary
GM LS GEN IV Engines without VVT, but WITH AFM/DOD
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 646-201-13
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams FSL Hydraulic Roller Camshafts
- Product Attributes - UPC
- 00036584405603
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Works with stock components and tune, can produce 47+ HP increase in peak power.
- Product Attributes - Basic Operating RPM Range
- 1,700-6,900
- Product Attributes - Intake Duration at 050 inch Lift
- 210
- Product Attributes - Exhaust Duration at 050 inch Lift
- 222
- Product Attributes - Duration at 050 inch Lift
- 210 int./222 exh.
- Product Attributes - Advertised Intake Duration
- 264
- Product Attributes - Advertised Exhaust Duration
- 274
- Product Attributes - Advertised Duration
- 264 int./274 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.541 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.541 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.541 int./0.541 exh.
- Product Attributes - Lobe Separation (degrees)
- 116
- Product Attributes - Camshaft Gear Attachment
- 1-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- LAFME264
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits applications with AFM and without VVT.
- Product Attributes - CARB EO Number(s)
- D-279-13
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca646-201-13 |
| SFX Item ID | 4118171 |
| Supplier Item Code | 4118171 |
| Manufacturer SKU | 646-201-13 |
| Manufacturer UPC | 36584405603 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
Brochures
Compatibility
GM LS GEN IV Engines without VVT, but WITH AFM/DOD
