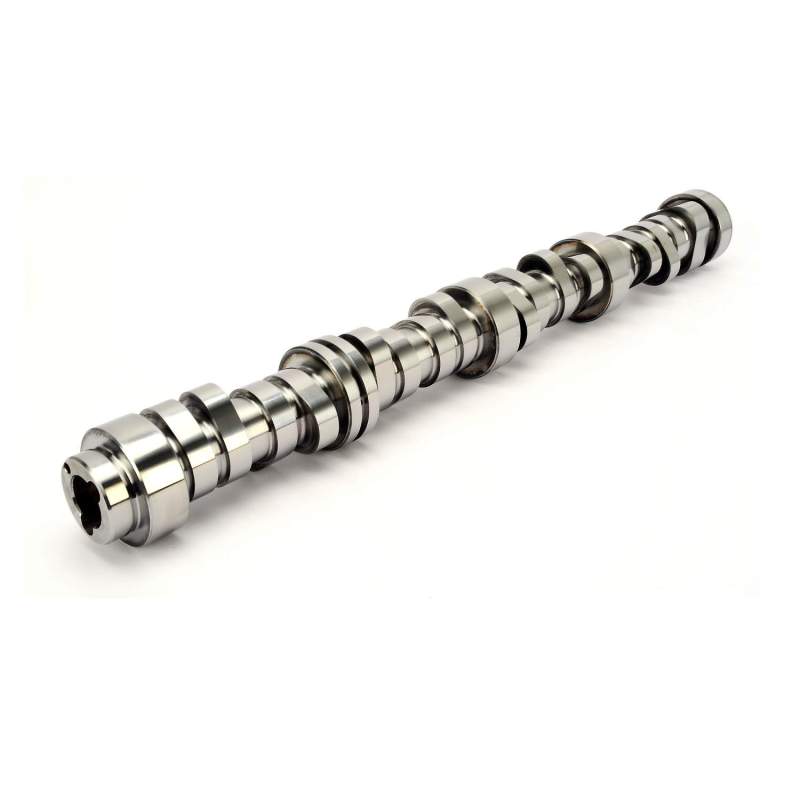

COMP Cams Camshaft GM Gen V LT1 Ltav 27

SKU: CCA624-536-13

Camshafts

CCA Camshafts...

Limited Availability from MFR Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.

We accept

Description

Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM's Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications.

Product Overview

Chevrolet: Silverado 2500 17 - 18 5.3 L Engine, GMC: Yukon 15 - 19 5.3 L Engine, Chevrolet: Tahoe 18 - 19 6.2 L Engine, GMC: Sierra 1500 14 - 18 6.2 L Engine, Cadillac: Escalade ESV 15 - 19 6.2 L Engine, GMC: Yukon 15 - 19 6.2 L Engine, Chevrolet: Silverado 1500 14 - 18 6.2 L Engine, GMC: Sierra 1500 Limited 19 - 19 5.3 L Engine, Chevrolet: Tahoe 15 - 19 5.3 L Engine, GMC: Sierra 17 - 18 6.2 L Engine, Chevrolet: Silverado 1500 14 - 18 5.3 L Engine, Cadillac: CTS 16 - 19 6.2 L Engine, Cadillac: Escalade 15 - 19 6.2 L Engine, Chevrolet: Camaro 16 - 19 6.2 L Engine, Chevrolet: Corvette 14 - 19 6.2 L Engine, GMC: Sierra 17 - 18 5.3 L Engine, Chevrolet: Cheyenne 17 - 18 5.3 L Engine, GMC: Yukon XL 15 - 18 6.2 L Engine, Chevrolet: Suburban 15 - 19 5.3 L Engine, Chevrolet: Silverado 1500 LD 19 - 19 5.3 L Engine, Chevrolet: Cheyenne 17 - 18 6.2 L Engine, GMC: Sierra 1500 14 - 18 5.3 L Engine, Chevrolet: Suburban 19 - 19 6.2 L Engine, GMC: Yukon XL 15 - 18 5.3 L Engine

Product Details

Advertised Exhaust Duration:	286
Advertised Intake Duration:	274
Amazon ASIN:	B00N6LQ9YG
Assembly Lubricant Included:	No
Basic Operating RPM Range:	2,000-7,100
C.A.R.B. E.O. Number:	N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?:	No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:	Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason:	N/A
California Proposition 65:	WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type:	Hydraulic Roller
Camshaft Material:	Billet Steel
Camshaft Series:	XFI AFM
Description:	XFI AFM 224/236 D, 222/234 N Hydraulic Roller Cam for GM LT1 GEN V
Engine Family:	GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)
Exhaust Duration @ .050 in.:	234
Exhaust Duration at .050 inch Lift:	234
Exhaust Duration:	286
Exhaust Valve Lift(in):	0.529
Exhaust Valve Lift:	0.529
Grind Number:	274PIIHR18
Intake Duration @ .050 in.:	222
Intake Duration at .050 Inch Lift:	222
Intake Duration:	274
Intake Valve Lift(in):	0.572
Intake Valve Lift:	0.572
Lifter Type:	Hydraulic Roller
Lifters Included:	No
Lobe Separation:	118
Part Number:	cca624-536-13
RPM Range:	2000-7000
Title:	XFI AFM 224/236 D, 222/234 N Hydraulic Roller Cam for GM LT1 GEN V
Usage:	Street/Performance
Valve Springs Required:	Yes

Application Summary

Part Type

Engine Camshaft

Data: v4.2 - Upd: 2026-10-13 17:46:11

Specifications

Product Attributes - Brand: COMP Cams
Product Attributes - Manufacturer's Part Number: 624-536-13
Product Attributes - Part Type: Camshafts
Product Attributes - Product Line: COMP Cams XFI AFM GM Gen V Camshafts
Product Attributes - UPC: 036584267041
Product Attributes - Cam Style: Hydraulic roller, OE roller
Product Attributes - Camshaft Use: Street/Strip
Product Attributes - Basic Operating RPM Range: 2,000-7,100
Product Attributes - Intake Duration at 050 inch Lift: 222
Product Attributes - Exhaust Duration at 050 inch Lift: 234
Product Attributes - Duration at 050 inch Lift: 222 int./234 exh.
Product Attributes - Advertised Intake Duration: 274
Product Attributes - Advertised Exhaust Duration: 286
Product Attributes - Advertised Duration: 274 int./286 exh.
Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio: 0.572 in.
Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.529 in.
Product Attributes - Valve Lift with Factory Rocker Arm Ratio: 0.572 int./0.529 exh.
Product Attributes - Lobe Separation (degrees): 118
Product Attributes - Remanufactured: No
Product Attributes - Computer-Controlled Compatible: Yes
Product Attributes - Grind Number: 274PIIHR18
Product Attributes - Valve Springs Required: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Designed to fit L83/L86 engines only. Requires COMP Cams phaser limiter kit and computer tuning.

Reference Information

Brand Name/s	Comp Cams
StreetFX SKU	cca624-536-13
SFX Item ID	4120941
Supplier Item Code	4120941
Manufacturer SKU	624-536-13
Manufacturer UPC	36584267041
Alternative References	LT1, lt4;
