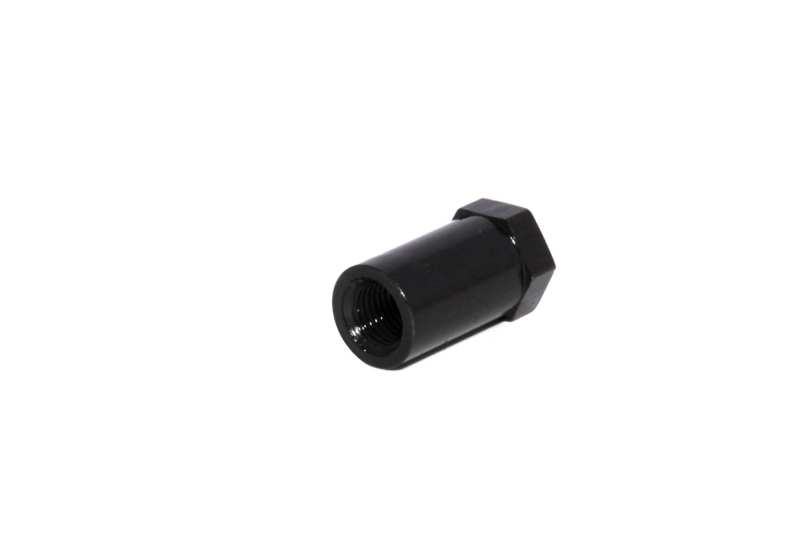

COMP Cams Poly Lock 7/16in Magnum
COMP Cams Poly Lock 7/16in Magnum
Sale ends in Calculating...
A$21.24
A$94.11
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
7/16" Magnum Poly Lock-1
Product Overview
*Rocker Arm Adjusting Nuts*
Many of the popular engine families utilize a positive stop type of rocker arm attachment, which does not allow for any adjustment, and consequently there is no consideration for different cam sizes or other modifications to the engine block and heads. For that reason, COMP has designed a kit to convert this setup to a fully adjustable valve train.
* Tapered for extra strength in locking areas
* High Energy and Magnum Polylocks are best for moderate lift and spring pressure applications
* Hi-Tech Polylocks work well in all high end race applications
* Stud girdle polylocks are precision ground for minimum runout
*Rocker Arm Studs*
COMP Cams takes pride in having the finest rocker arm studs available on the market. The High Energy and Magnum series studs work well in applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required, as with high RPM roller cam applications, the Hi-Tech Race Stud is the answer. This stud has a thin jam nut for rocker clearance, rolled threads for maximum contact and a ground-flat top so that accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams® studs have generous radii and a black oxide finish.
Product Details
| Adjusting Nut Height: | 1.3 |
|---|---|
| Amazon ASIN: | B001G8IZQQ |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | Magnum Polylock for 7/16" Rocker Stud |
| Part Number: | cca4603-1 |
| Rocker Arm Adjusting Nut Series: | Magnum |
| Stud Diameter: | 7/16" |
| Title: | Magnum Polylock for 7/16" Rocker Stud |
Part Type
Engine Rocker Arm Adjusting Nut
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 4603-1
- Product Attributes - Part Type
- Rocker Arm Nuts
- Product Attributes - Product Line
- COMP Cams Rocker Arm Adjusting Nuts
- Product Attributes - UPC
- 036584390398
- Product Attributes - Rocker Arm Style
- Full roller
- Product Attributes - Rocker Arm Nut Style
- Polylock
- Product Attributes - Rocker Stud Thread Diameter
- 7/16-20 in.
- Product Attributes - Overall Height (in.)
- 1.30 in.
- Product Attributes - Shank Diameter (in.)
- 0.68
- Product Attributes - For Use with Stud Girdle
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca4603-1 |
| SFX Item ID | 4120103 |
| Supplier Item Code | 4120103 |
| Manufacturer SKU | 4603-1 |
| Manufacturer UPC | 36584390398 |
| Alternative References | 7/16in |
