Description
IMPORTANT NOTICE: Will not fit factory Ford FE solid lifter engine blocks.
Hydraulic: Strong torque, excellent throttle response, heavy towing in 428 with Gears.
Product Overview
*Xtreme Energy Camshafts*
* Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
* More vacuum allows an increase in duration for improved performance and assists power brakes
* Excellent performance in street carbureted applications
* Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Details
| Advertised Exhaust Duration: | 270 |
|---|---|
| Advertised Intake Duration: | 262 |
| Amazon ASIN: | B002DFQ3QK |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 1,300-5,600 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Cam and Lifter Kit Upgrade: | CL33-238-4 |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Xtreme Energy |

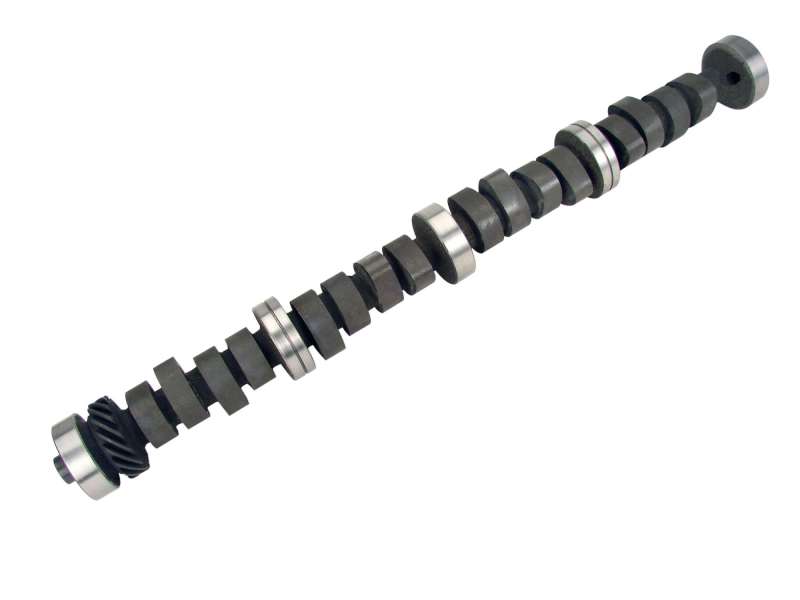

| Description: | Xtreme Energy 218/224 Hydraulic Flat Cam for Ford 352-428 |
| Engine Family: | Ford 352-428 c.i. 8 Cylinder (1963-1977) |
| Exhaust Duration @ .050 in.: | 224 |
| Exhaust Duration at .050 inch Lift: | 224 |
| Exhaust Duration: | 270 |
| Exhaust Valve Lift(in): | 0.52 |
| Exhaust Valve Lift: | 0.52 |
| Grind Number: | XE262H |
| Intake Duration @ .050 in.: | 218 |
| Intake Duration at .050 Inch Lift: | 218 |
| Intake Duration: | 262 |
| Intake Valve Lift(in): | 0.513 |
| Intake Valve Lift: | 0.513 |
| K-Kit Upgrade: | K33-238-4 |
| Lifter Type: | Hydraulic Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca33-238-4 |
| RPM Range: | 1000-7000 |
| SK-Kit Upgrade: | SK33-238-4 |
| Title: | Xtreme Energy 218/224 Hydraulic Flat Cam for Ford 352-428 |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Fits Ford FE 352, 360, 390, 406, 410, 427 and 428
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 33-238-4
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Camshafts
- Product Attributes - UPC
- 036584080299
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,300-5,600
- Product Attributes - Intake Duration at 050 inch Lift
- 218
- Product Attributes - Exhaust Duration at 050 inch Lift
- 224
- Product Attributes - Duration at 050 inch Lift
- 218 int./224 exh.
- Product Attributes - Advertised Intake Duration
- 262
- Product Attributes - Advertised Exhaust Duration
- 270
- Product Attributes - Advertised Duration
- 262 int./270 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.513 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.520 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.513 int./0.520 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- FB XE262H-10
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Will not fit factory Ford FE solid lifter engine blocks.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca33-238-4 |
| SFX Item ID | 4119799 |
| Supplier Item Code | 4119799 |
| Manufacturer SKU | 33-238-4 |
| Manufacturer UPC | 36584080299 |
| Alternative References | f100, f150, COM33-238-4, XE262H-10 |
Brochures
Compatibility
Fits Ford FE 352, 360, 390, 406, 410, 427 and 428
