COMP Cams Kit Dual Valve Spring Ts LS
COMP Cams Kit Dual Valve Spring Ts LS
A$1,317.07
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

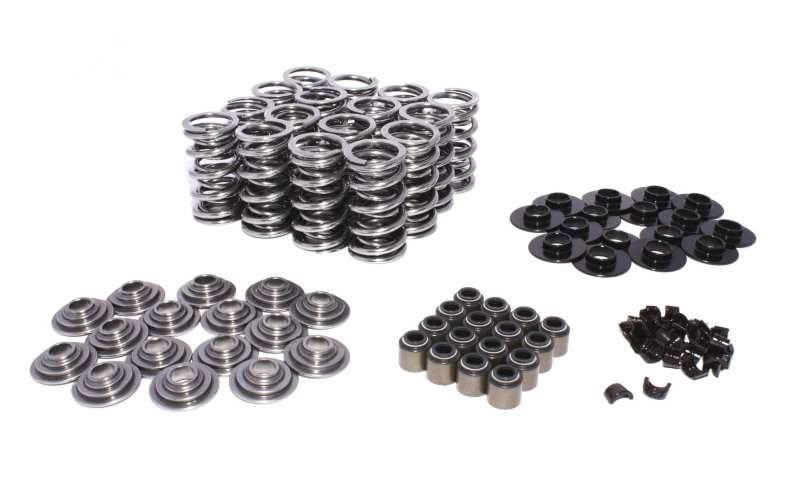

This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, tool Steel retainers, locks, Seals and spring seats. With a .660" maximum lift, these COMP Cams Dual Valve Springs for Race Applications are manufactured from Super Cleanâ„¢ wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.
Product Overview
*GM LS Dual Valve Spring Kits*
* Dual valve spring kits designed for hydraulic roller and some solid roller camshafts
* Include matched valve springs, retainers, locks, seals & seats
* Kits available with tool steel or titanium retainers
* .660" Maximum lift for kits including Part #26925 springs
* .675" Maximum lift for kits including Part #26926 springs
Product Details
| Amazon ASIN: | B003NNKKLK |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Type: | Hydraulic |
| Coil Bind Height(in): | 0.660 |
| Description: | GM LS Dual Valve Spring Kit w/ Tool Steel Retainers; .660" Max Lift |
| Inside Diameter(in): | 0.68 |
| Installed Height(in): | 1.810 |
| Installed Pressure(lbs): | 141 |
| Open Height(in): | 1.15 |
| Open Pressure(lbs): | 405 |
| Outside Diameter(in): | 1.320 |
| Part Number: | cca26925TS-KIT |
| Position: | N/A |
| Spring Rate(lbs/in): | 500 |
| Spring Type: | Double |
| Title: | GM LS Dual Valve Spring Kit w/ Tool Steel Retainers; .660" Max Lift |
Additional Information
With lightweight tool steel retainers.
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26925TS-KIT
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams High Performance Valve Spring Kits
- Product Attributes - UPC
- 036584225393
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Maximum Valve Lift (in.)
- 0.660 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Tool steel
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.320 in.
- Product Attributes - Coil Bind Height (in.)
- 1.100 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs./in.)
- 400 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 0.958 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.680 in.
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Material
- Steel
- Product Attributes - Lock Groove Quantity
- 1-groove
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Valve Stem Diameter (in.)
- 0.315 in.
- Product Attributes - Valve Stem Diameter (mm)
- 8.00mm
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26925TS-KIT |
| SFX Item ID | 4119571 |
| Supplier Item Code | 4119571 |
| Manufacturer SKU | 26925TS-KIT |
| Manufacturer UPC | 36584225393 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
