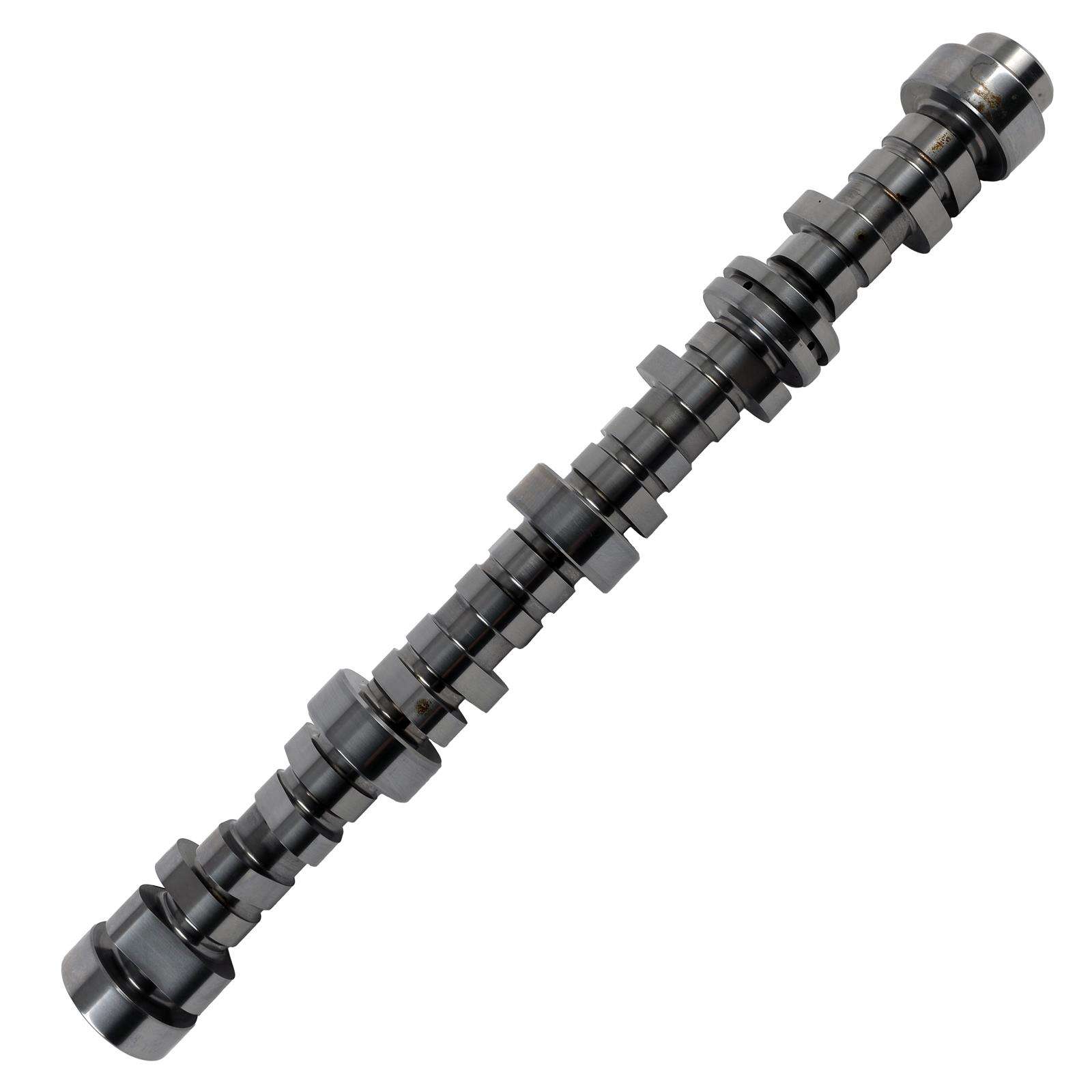

COMP Cams Stage 1 LST Series Hydraulic Roller Camshafts 224-300-13 Camshaft, LST, Tappet, Advertised Duration 282/287, Lift .650/.639, Chevy, Small Block, Each
COMP Cams Stage 1 LST Series Hydraulic Roller Camshafts 224-300-13 Camshaft, LST, Tappet, Advertised Duration 282/287, Lift .650/.639, Chevy, Small Block, Each
A$1,308.13
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Stage 1 LST 227/238 Hydraulic Roller Cam
Product Overview
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Product Details
| Advertised Exhaust Duration: | 287 |
|---|---|
| Advertised Intake Duration: | 282 |
| Amazon ASIN: | B07MDDJ5RC |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,000-7,200 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| CK-Kit Upgrade: | CK224-300-13 |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Low Shock Technology |
| Description: | Stage 1 LST Cam for LT1 Camaro and Corvette w/ AFM Delete |
| Direct Injection Fuel Pump Lobe Output: | 38% More than Stock |
| Engine Family: | GM GEN V LT w/ VVT w/o AFM 2014-Present |
| Exhaust Duration at .050 inch Lift: | 238 |
| Exhaust Valve Lift: | 0.639 |
| Grind Number: | 282LMH16 |
| Intake Duration at .050 Inch Lift: | 227 |
| Intake Valve Lift: | 0.65 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 116.5 |
| MK-Kit Upgrade: | MK224-300-13 |
| Part Number: | cca224-300-13 |
| Recommended Cam Install Kit for Camaro: | 5624 |
| Recommended Cam Install Kit for Corvette: | 5626 |
| Stage: | 1 |
| Title: | Stage 1 LST Cam for LT1 Camaro and Corvette w/ AFM Delete |
| Usage: | Street / Performance |
| Valve Springs Required: | Yes |
Application Summary
Chevrolet: Camaro 16 - 19 6.2 L Engine, Chevrolet: Corvette 14 - 19 6.2 L Engine
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 224-300-13
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Stage 1 LST Series Hydraulic Roller Camshafts
- Product Attributes - UPC
- 00036584386469
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- HYDRAULIC ROLLER - Broad powerband with best average torque & HP in LT1. Includes higher volume direct injection lobe (+38%). 7400 RPM stability w/ CK & MK Kits. AFM delete & VVT limiter.
- Product Attributes - Basic Operating RPM Range
- 2,200-7,200
- Product Attributes - Intake Duration at 050 inch Lift
- 227
- Product Attributes - Exhaust Duration at 050 inch Lift
- 238
- Product Attributes - Duration at 050 inch Lift
- 227 int./238 exh.
- Product Attributes - Advertised Intake Duration
- 282
- Product Attributes - Advertised Exhaust Duration
- 287
- Product Attributes - Advertised Duration
- 282 int./287 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.650 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.639 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.650 int./0.639 exh.
- Product Attributes - Lobe Separation (degrees)
- 116.5
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Custom computer tuning required. Must delete AFM.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca224-300-13 |
| SFX Item ID | 4776688 |
| Supplier Item Code | 4776688 |
| Manufacturer SKU | 224-300-13 |
| Manufacturer UPC | 36584386469 |
| Alternative References | CPC224-300-13 |
Brochures
Compatibility
Chevrolet: Camaro 16 - 19 6.2 L Engine, Chevrolet: Corvette 14 - 19 6.2 L Engine
