COMP Cams Timing Cover Chevy Big Block
COMP Cams Timing Cover Chevy Big Block
A$693.81
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Eliminate timing cover flex which causes erratic ignition timing. Allow Camshaft to be replaced without disturbing the oil pan Seal. Simple endplay adjustment with dial indicator access hole. Integrated timing pointer simplifies ignition timing checks. Compatible with all water umps and most Gear drives.
Product Overview
*Chevrolet Steel Timing Cover with Thrust Plate*
This steel Small Block Chevrolet timing cover features a welded thrust plate tab for use with a cam button. It allows adjustment for correct end play without additional modifications and includes gaskets, seal and bolts and has a black powder coated finish.
*Chevrolet Three-Piece Billet Aluminum Timing Covers*
The COMP Cams Three-Piece Billet Aluminum Timing Covers for Small and Big Block Chevrolet engines allow access to camshaft timing adjustments without having to remove the harmonic damper or disturb the oil pan seal. Designed to be lightweight yet rigid, these billet covers offer convenience and performance in one easy-to-install package.
*GM LS Front Covers*
The COMP Cams LS Front Covers for street/strip applications fit all LS1, -2, -3, -6 or LS7 engines, OEM and aftermarket, including the RHS LS Race Block. The LS Covers feature provisions for timing pointer, OEM camshaft sensor and any regular BBC crank trigger. Available for either standard snout (LS1/6) or long snout (LS7) crankshafts, the covers easily fit double roller timing chains and high pressure/volume oil pumps. Both covers come with gasket and crank seal; no modifications needed.
*Chevrolet Two-Piece Billet Aluminum Timing Covers*
* Eliminates timing cover flex which causes erratic ignition timing
* Allow cam to be replaced without disturbing oil pan seal
* Simple endplay adjustment with dial indicator access hole
* Integrated timing pointer simplifies ignition timing checks
* Compatible with all water pumps and most gear drives
Product Details
| Amazon ASIN: | B001NESXNI |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |

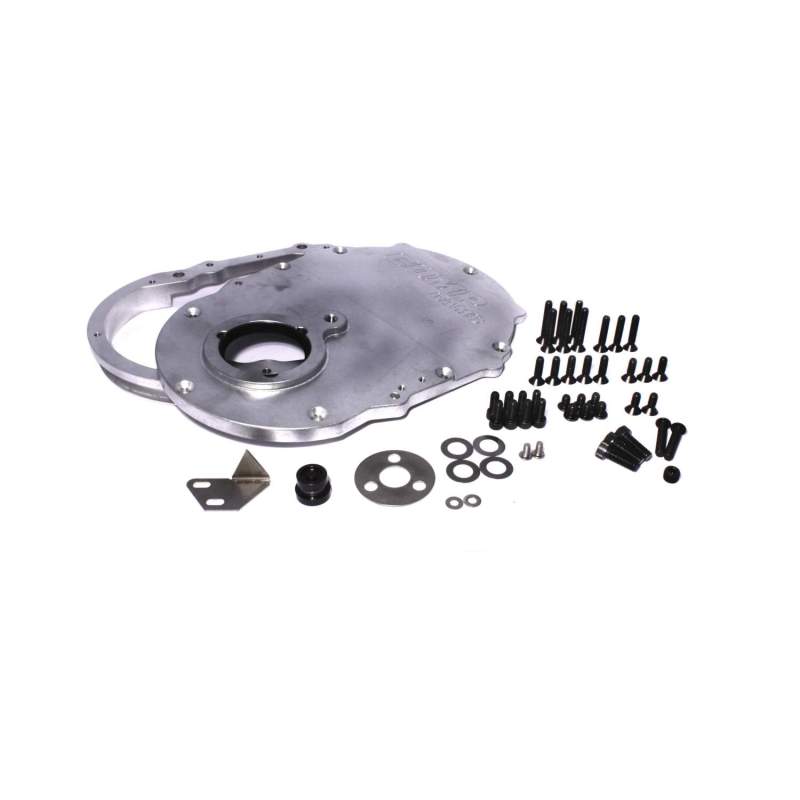

| Description: | Two-Piece Billet Aluminum Timing Cover for Chevrolet Big Block GEN VI |
| Engine Family: | Chevrolet GEN VI Big Block |
| Part Number: | cca217 |
| Title: | Two-Piece Billet Aluminum Timing Cover for Chevrolet Big Block GEN VI |
Additional Information
Use with early style cam & double roller timing set.
Part Type
Engine Timing Cover
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 217
- Product Attributes - Part Type
- Timing Covers
- Product Attributes - Product Line
- COMP Cams 2-Piece Billet Aluminum Timing Covers
- Product Attributes - UPC
- 036584020172
- Product Attributes - Cover Style
- 2-piece
- Product Attributes - Cover Material
- Aluminum
- Product Attributes - Cover Color
- Natural
- Product Attributes - Cover Logo
- Comp Cams
- Product Attributes - Timing Pointer Included
- Yes
- Product Attributes - Bolts/Studs Included
- Yes
- Product Attributes - Gaskets Included
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- May require extra gasket thickness or shim for short pump.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca217 |
| SFX Item ID | 4119448 |
| Supplier Item Code | 4119448 |
| Manufacturer SKU | 217 |
| Manufacturer UPC | 36584020172 |
| Alternative References | c10, s10, COM217 |
