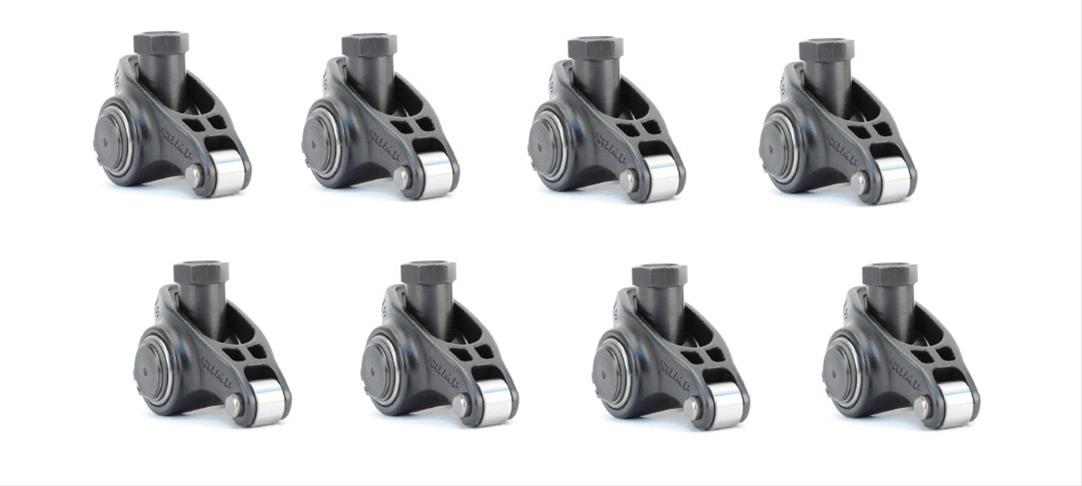

COMP Cams Rocker Arms GM LS3 1.8 Bolt D
COMP Cams Rocker Arms GM LS3 1.8 Bolt D
A$584.88
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Utilizing years of valvetrain design experience, the latest FEA stress analysis technology, and an exhaustive testing regiment (dyno and Spintron), COMP Cams engineering team left no detail to chance. Everything from casting techniques to valve spring clearance was scrutinized to ensure that Ultra Pro Magnum rocker arms not only lived up to the lofty standards of their predecessor, but also took stud mount rocker performance, stability, and value to a whole new level. The most noticeable advancement centers around their nearly unbreakable investment cast 8650 chromoly body. The arched, web-like design delivers a nearly 29 percent increase in strength and rigidity, while reducing the moment of inertia and optimizing the dynamic balance. The resulting rockers maximize lift and valvetrain control at high rpm. The increased retainer and valve spring clearances of the new design enable the use of large-diameter valve springs, retainers, and locks, without clearance or fitment issues. The new black oxide exterior finish offers a distinctive appearance, along with long-term corrosion resistance. The COMP Cams Ultra Pro Magnum rocker arms feature an oversized trunnion and precision-sorted needle bearings designed for use with high-load valve springs. These unique rockers also feature hardened roller tips for reduced friction and elimination of the valve stem "side loading" that causes premature valve guide wear.
Product Overview
The Ultra Pro Magnum Roller Rocker Arms not only live up to the lofty standards of the original Pro Magnum Rockers, but they also take stud mount rocker performance, stability and value to a whole new level. The modern arched, web-like design delivers increased strength and rigidity while still reducing the moment of inertia and optimizing the dynamic balance.
* Investment cast 8650 chromemoly body and arched, weblike design deliver increased strength and rigidity while reducing moment of inertia
* Withstand valve spring pressures up to 850 lbs.
* Unique black oxide exterior finish helps prevent corrosion, thus increasing durability
* Increased retainer and valve spring clearances allow use of large diameter springs, retainers and +.050" locks without clearance or fitment issues
* Feature oversized trunnions, precision-sorted needle bearings and hardened roller tips
Product Details
| Description: | Ultra Pro Magnum Rocker Arm; 8 Pieces |
|---|---|
| Part Number: | cca1678-8 |
| Ratio: | 1.8 |
| Stud Diameter: | Pedestal Mount |
| Title: | 1678-8 Rocker Arms, GM LS3 1.8 Bolt Down |
Part Type
Engine Rocker Arm
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 1678-8
- Product Attributes - Part Type
- Rocker Arms
- Product Attributes - Product Line
- COMP Cams Ultra Pro Magnum Rocker Arms
- Product Attributes - UPC
- 036584240679
- Product Attributes - Rocker Arm Mounting Style
- Pedestal
- Product Attributes - Self-Aligning
- No
- Product Attributes - Rocker Arm Ratio
- 1.8
- Product Attributes - Rocker Arm Style
- Full roller
- Product Attributes - Shims Included
- No
- Product Attributes - Rocker Arm Material
- Chromoly
- Product Attributes - Rocker Arm Body Style
- Standard
- Product Attributes - Rocker Arm Fasteners Included
- Yes
- Product Attributes - Rocker Arm Nut Style
- Polylock
- Product Attributes - Rocker Arm Finish
- Black oxide
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- Fits GM LS3/L99/L76 applications using rectangle port cylinder heads.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca1678-8 |
| SFX Item ID | 4119097 |
| Supplier Item Code | 4119097 |
| Manufacturer SKU | 1678-8 |
| Manufacturer UPC | 36584240679 |
| Alternative References | LS3 |
