Description

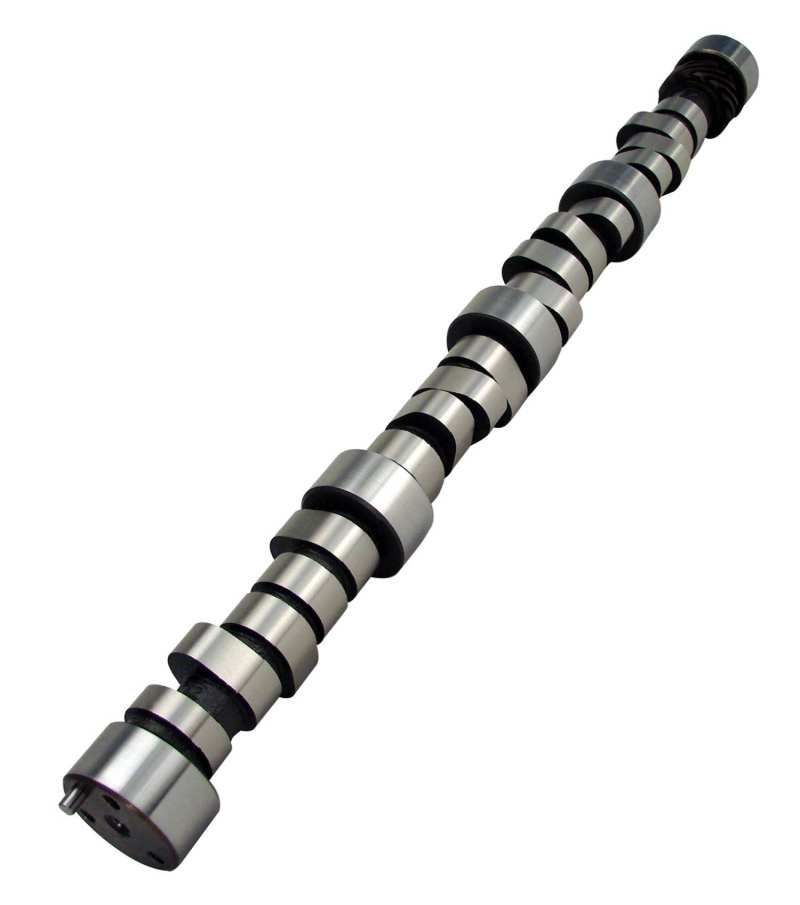

Xtreme Energy 230/236 Hydraulic Roller Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles.
Product Overview
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Product Details
| Advertised Exhaust Duration: | 288 |
|---|---|
| Advertised Intake Duration: | 282 |
| Amazon ASIN: | B000CIUAD2 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,200-5,800 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Cam and Lifter Kit Upgrade: | CL12-432-8 |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Austempered Ductile Iron |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy 230/236 Hydraulic Roller Cam for Chevrolet Small Block |
| Engine Family: | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Exhaust Duration @ .050 in.: | 236 |
| Exhaust Duration at .050 inch Lift: | 236 |
| Exhaust Duration: | 288 |
| Exhaust Valve Lift(in): | 0.52 |
| Exhaust Valve Lift: | 0.52 |
| Grind Number: | XR282HR |
| Intake Duration @ .050 in.: | 230 |
| Intake Duration at .050 Inch Lift: | 230 |
| Intake Duration: | 282 |
| Intake Valve Lift(in): | 0.510 |
| Intake Valve Lift: | 0.51 |
| K-Kit Upgrade: | K12-432-8 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca12-432-8 |
| RPM Range: | 2000-9000 |
| SK-Kit Upgrade: | SK12-432-8 |
| Title: | Xtreme Energy 230/236 Hydraulic Roller Cam for Chevrolet Small Block |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 12-432-8
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Retrofit Camshafts
- Product Attributes - UPC
- 036584025177
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Great for street machines. Needs intake, headers, 2500+ stall converter and gears. Mildly rough idle.
- Product Attributes - Basic Operating RPM Range
- 2,200-5,800
- Product Attributes - Intake Duration at 050 inch Lift
- 230
- Product Attributes - Exhaust Duration at 050 inch Lift
- 236
- Product Attributes - Duration at 050 inch Lift
- 230 int./236 exh.
- Product Attributes - Advertised Intake Duration
- 282
- Product Attributes - Advertised Exhaust Duration
- 288
- Product Attributes - Advertised Duration
- 282 int./288 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.510 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.520 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.510 int./0.520 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- CS XR282HR-10
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Retro-fit: Designed for early non-roller blocks. Requires thrust button and wear plate.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca12-432-8 |
| SFX Item ID | 4118680 |
| Supplier Item Code | 4118680 |
| Manufacturer SKU | 12-432-8 |
| Manufacturer UPC | 36584025177 |
| Alternative References | l46, l48, l65, lm1, lt-1, l82 |
Brochures
Compatibility
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
