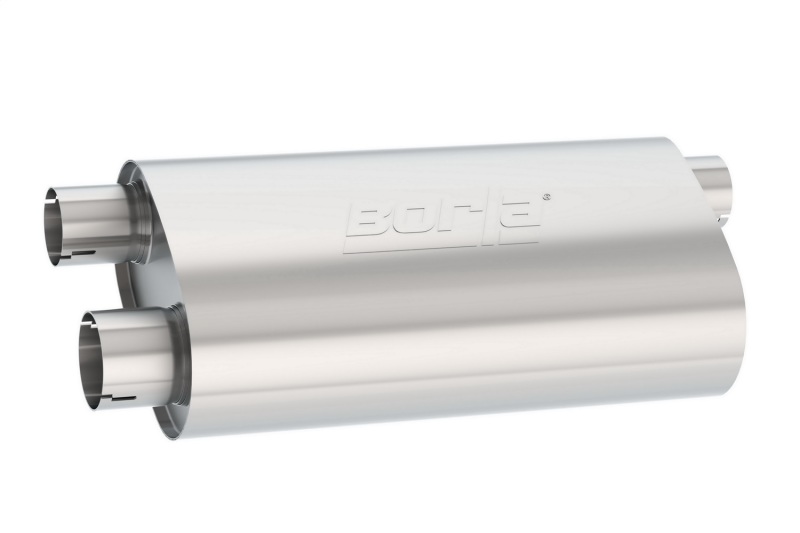

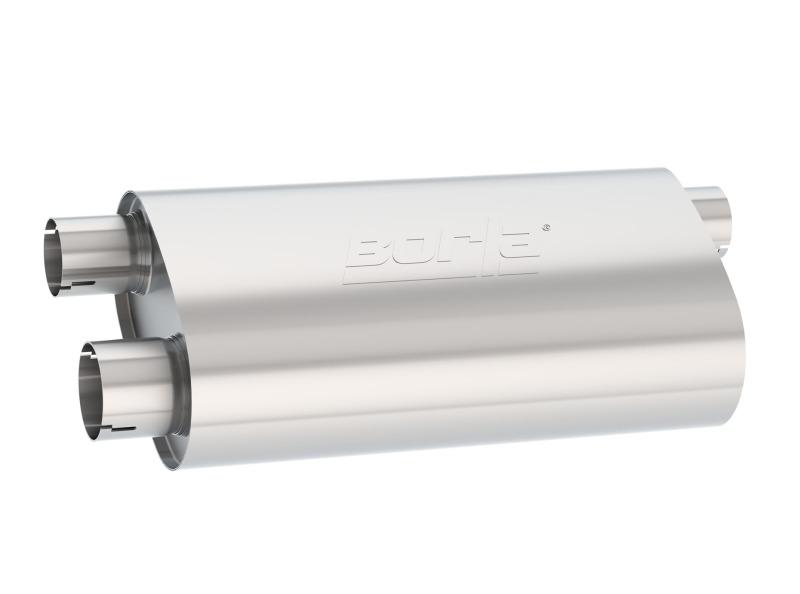

Borla Universal Pro-XS Muffler Oval 3in Inlet/ 2.5in Dual Outlet Transverse Flow Notched Muffler
Borla Universal Pro-XS Muffler Oval 3in Inlet/ 2.5in Dual Outlet Transverse Flow Notched Muffler
A$812.05
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Transverse Flow design. Transverse flow mufflers were originally designed for GM F-Body Camaros and Firebirds. On these vehicles they were mounted behind the rear axle and were parallel to the axle. This muffler can also be used to create custom systems on other vehicles. Single 3" Offset Inlet/ Dual 2.5" Offset Outlets. The inlet and one outlet are on one end of the muffler, the second outlet is on the opposite end. Notched necks for clamp-on installation using 1" wide band style clamps (clamps not included). Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel for superior corrosion resistance. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. Alternate muffler with Un-Notched necks is 40474. If clamping, use 3" band clamps 18004 & 18006. Best of all, it's made in the USA and backed by BORLA(r)'s Million-Mile warranty. Just what you'd expect from the world's most experienced (and most winning) exhaust brand.
Product Overview
Transverse Flow design. Transverse flow mufflers were originally designed for GM F-Body Camaros and Firebirds. On these vehicles they were mounted behind the rear axle and were parallel to the axle. This muffler can also be used to create custom systems on other vehicles. Single 3" Offset Inlet/ Dual 2.5" Offset Outlets. The inlet and one outlet are on one end of the muffler, the second outlet is on the opposite end. Notched necks for clamp-on installation using 1" wide band style clamps (clamps not included). Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. Best of all, it's made in the USA and backed by BORLA(r)'s Million-Mile warranty. Just what you'd expect from the world's most experienced (and most winning) exhaust brand.
Features and Benefits
- Alternate muffler with Un-Notched necks is 40474. If clamping, use band clamps 18325 & 18330..
- Transverse flow design, originally designed for F-Body Camaro and Firebirds
- Universal muffler. Reversible design.
- Notched necks are designed for clamp in installation, use band clamps 18325 & 18330.
Product Details
| Body Height (in.): | 5.5 |
|---|---|
| Body Height: | 5.500 in. |
| Body Length (in.): | 19 |
| Body Length: | 19.000 in. |
| Body Width (in.): | 10.25 |
| Body Width: | 10.250 in. |
| Construction: | All Welded |
| Description: | Universal Performance Mufflers |
| Grade Type: | Performance |
| Inlet Connection Type: | Pipe |
| Inlet Outside Diameter: | 3.000 in. |
| Inlet Position: | Offset |
| Inlet Size (in.): | 2.25 |
| Inlet Type: | Single Offset |
| Main Piping Diameter: | 3.000 in. |
| Material: | T-304 Stainless Steel |
| Muffler Count: | 1 |
| Off Road Use Only: | No |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Position: | Dual Rear |
| Outlet Size (in.): | 2.5 |
| Outlet Type: | Dual Offset Outlet |
| Overall Length (in.): | 23 |
| Overall Length: | 23.000 in. |
| Part Number: | bor400499 |
| Position: | N/A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Long Label: | WARNING: This product in the physical form it is sold does not present a hazard. However, operations including, but not limited to welding, brazing, or thermal cutting can expose you to chemicals including Chromium, Nickel, Cobalt, Arsenic, Cadmium and Lead which are known to the State Of California to cause cancer, birth defects and other reproductive harm. For more information go towww.P65Warnings.ca.gov |
| Prop 65 - Short Label: | Proposition 65 Warning.JPG |
| Prop 65 Yes/No: | Yes |
| Shape: | Oval |
| Tip / Outlet Finish: | N/A |
| Title Extended: | Specialty Muffler Transverse Flow 3 in. Inlet/ 2.5 in. Dual Outlet 6 in. x 10.25 in. Oval x 19 in. Long Body Notched Necks Part # 400499 |
| Title: | Specialty Muffler Transverse Flow 3 in. Inlet/ 2.5 in. Dual Outlet 6 in. x 10.25 in. Oval x 19 in. Long Body Notched Necks |
Application Summary
Specialty Muffler - Transverse Flow - Single 3" Offset Inlet/ Dual 2.5" Offset Outlets (One Outlet On Same End As Inlet And One Outlet On Opposite End) 6" x 10.25" Oval x 19" Long Body 24" Overall Length. Universal Part. Reversible Design. Notched Necks.
Part Type
Exhaust Muffler
Features
- Alternate muffler with Un-Notched necks is 40474. If clamping, use band clamps 18004 & 18006.
- Notched necks are designed for clamp in installation, use band clamps 18325 & 18330
- Transverse flow design, originally designed for F-Body Camaro and Firebirds
- Universal muffler. Reversible design.
Specifications
- Product Attributes - Brand
- Borla
- Product Attributes - Manufacturer's Part Number
- 400499
- Product Attributes - Part Type
- Mufflers
- Product Attributes - Product Line
- Borla Specialty Mufflers
- Product Attributes - UPC
- 808422004992
- Product Attributes - Muffler Material
- 304 stainless steel
- Product Attributes - Inlet Diameter (in.)
- 3.00 in.
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Outlet Quantity
- 2
- Product Attributes - Inlet Location
- Offset
- Product Attributes - Outlet Location
- Offset
- Product Attributes - Case Shape
- Oval
- Product Attributes - Reversible
- No
- Product Attributes - Muffler Finish
- Natural
- Product Attributes - Case Exterior Length (in.)
- 19.00 in.
- Product Attributes - Thickness (in.)
- 5.500
- Product Attributes - Width (in.)
- 10.250 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Muffler is a crossflow design.
Reference Information
| Brand Name/s | Borla |
|---|---|
| StreetFX SKU | bor400499 |
| SFX Item ID | 4225267 |
| Supplier Item Code | 4225267 |
| Manufacturer SKU | 400499 |
| Manufacturer UPC | 808422004992 |
| Alternative References | 3in, 2.5in |
Brochures
Compatibility
Specialty Muffler - Transverse Flow - Single 3" Offset Inlet/ Dual 2.5" Offset Outlets (One Outlet On Same End As Inlet And One Outlet On Opposite End) 6" x 10.25" Oval x 19" Long Body 24" Overall Length. Universal Part. Reversible Design. Notched Necks.
