Bilstein B8 8100 (Bypass) 05-22 Toyota Tacoma 4WD Rear Left Shock Absorber
Bilstein B8 8100 (Bypass) 05-22 Toyota Tacoma 4WD Rear Left Shock Absorber
A$2,652.40
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

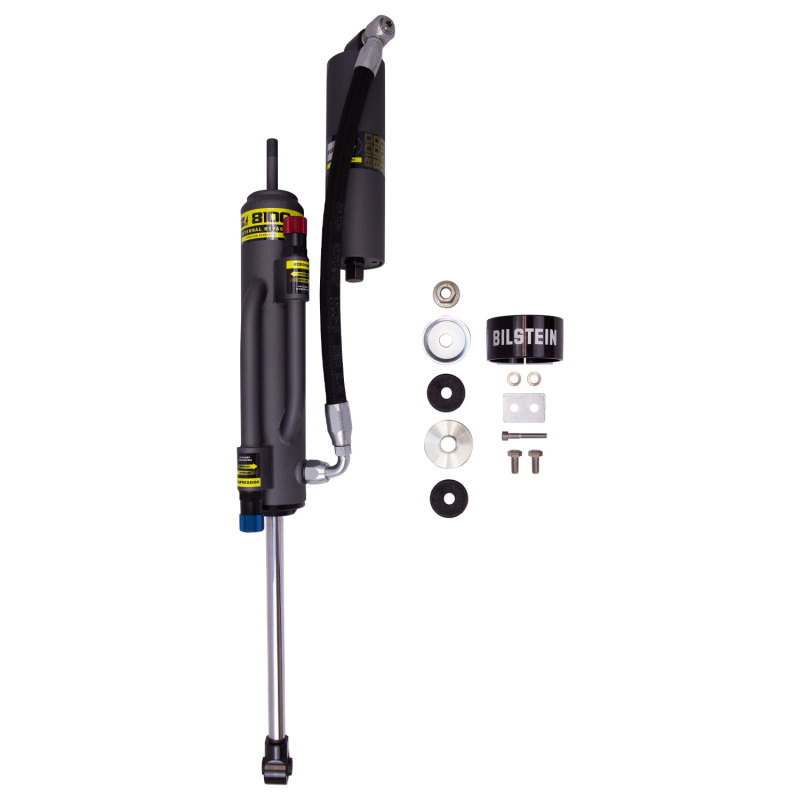

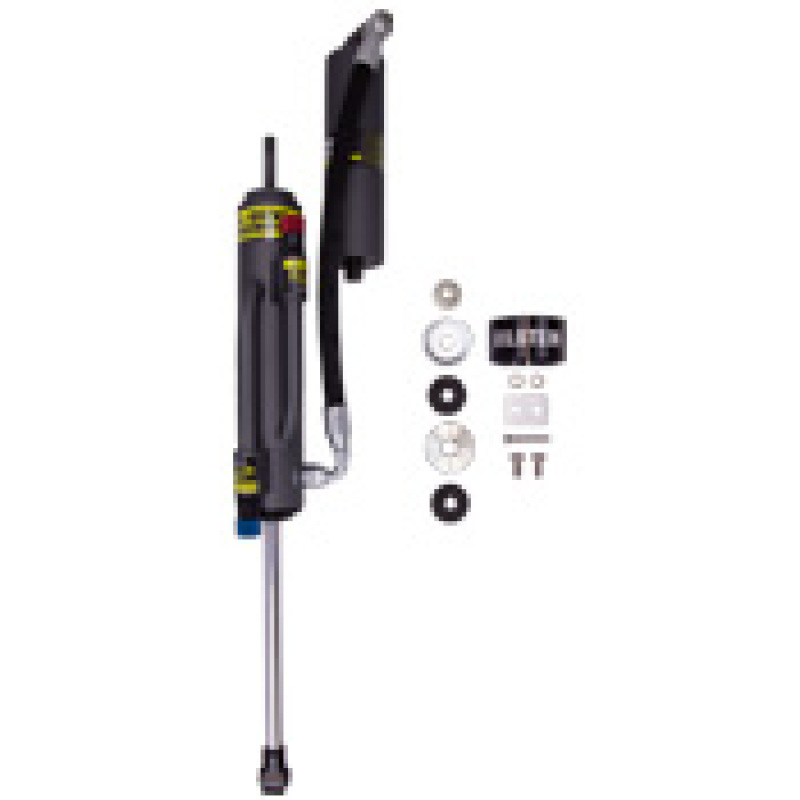

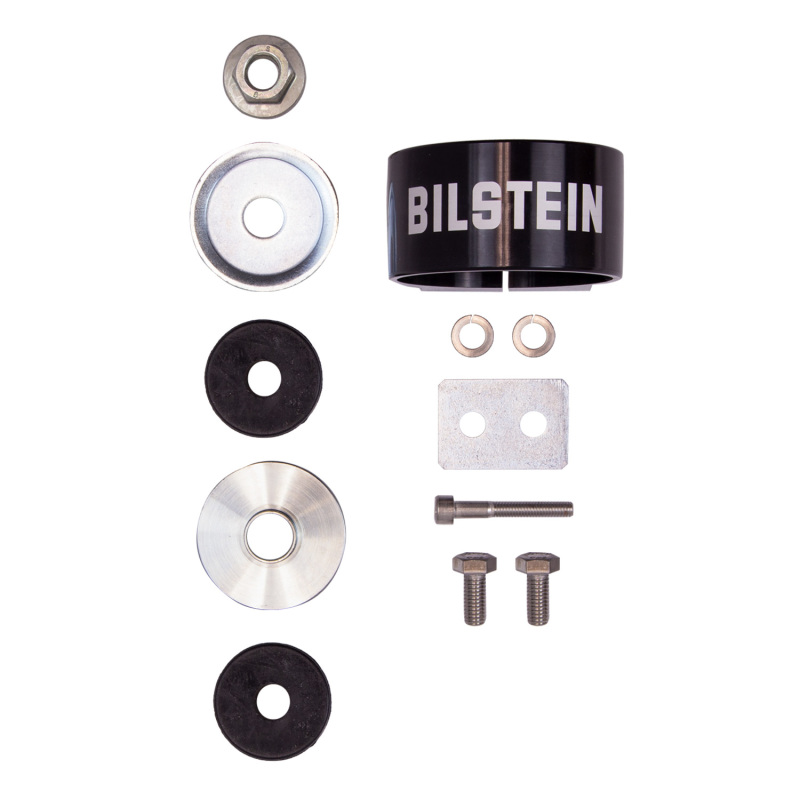

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Product Overview
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Features and Benefits
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression

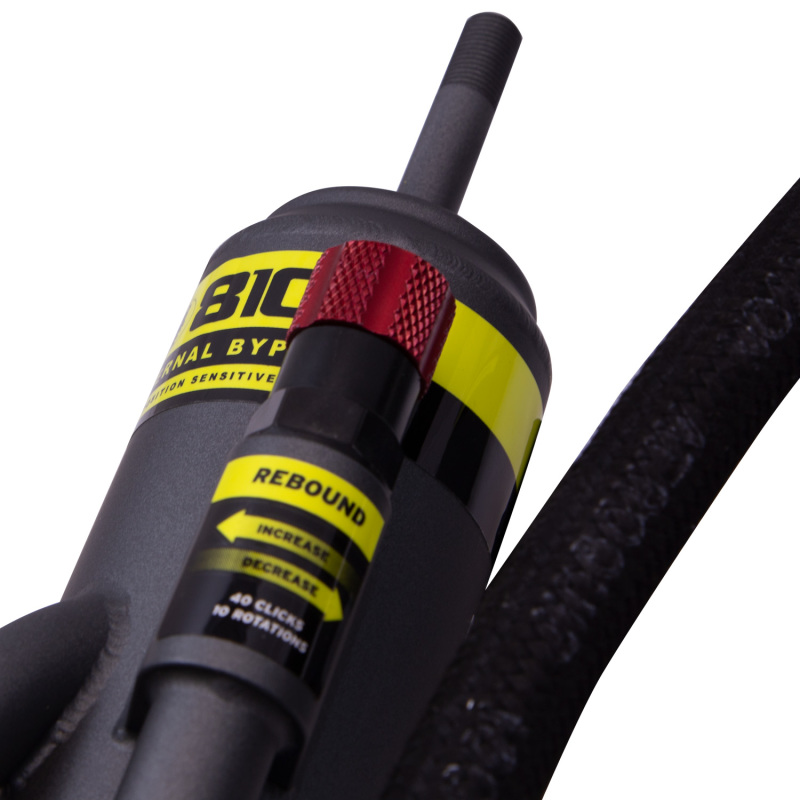

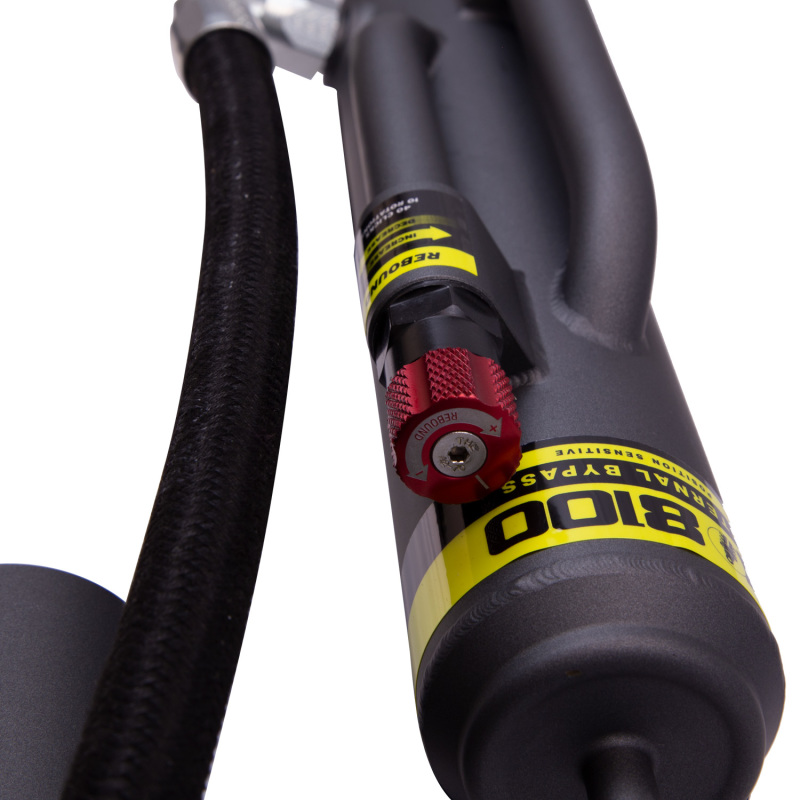

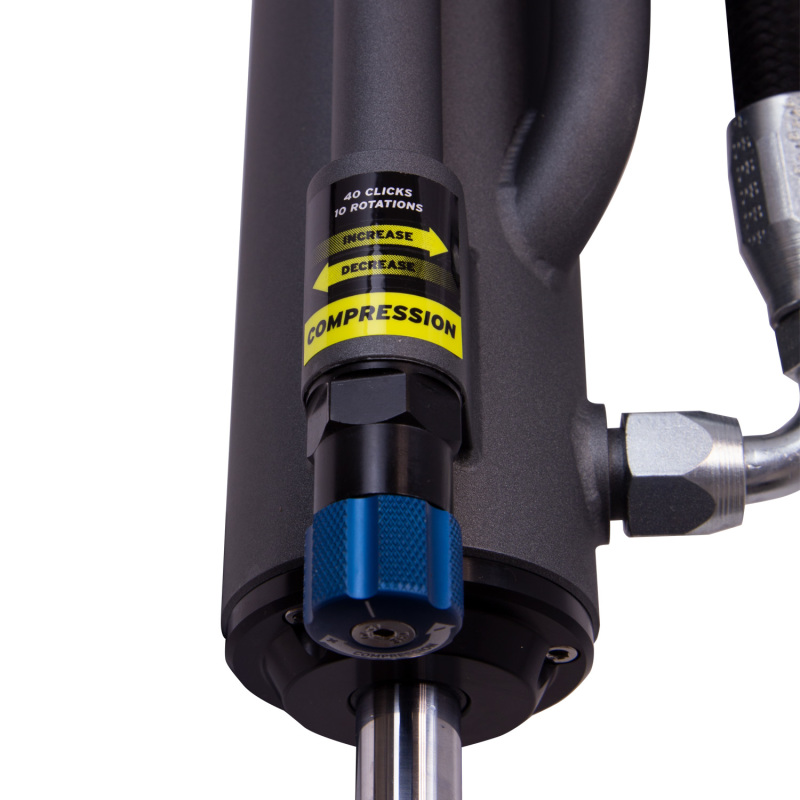

- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
Product Details
| Adjustable Damping: | Double Adjustable Compression and Rebound with Click Adjuster Knobs |
|---|---|
| Body Design: | Bypass Body (Non-Coilover) |
| Body Diameter (OD): | 2.65 in. |
| Boot Included: | No |
| Collapsed Length (IN): | 14.25 |
| Collapsed Length (MM): | 362.0 |
| Description: | Bilstein B8 8100 (Bypass) 05-22 Toyota Tacoma 4WD Rear Left Shock Absorber |
| Extended Length (IN): | 23.94 |
| Extended Length (MM): | 608.0 |
| Finish: | EVO Grey |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 12mm |
| Part Number: | bil25-320442 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 60mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | Yes |
| Segment: | Light Truck |
| Series: | B8 8100 (Bypass) |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Stem |
Application Summary
Toyota Tacoma 2023-2005
Part Type
Suspension Shock Absorber
Features
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
Specifications
- Product Attributes - UPC
- 651860881522
- Product Attributes - Brand
- Bilstein
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Ride Height
- Stock/Lifted
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Product Line
- Bilstein B8 8100 Series Bypass Shocks
- Product Attributes - Boot Included
- No
- Product Attributes - Bushing Color
- Black
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Body Diameter (in.)
- 2.362
- Product Attributes - Extended Length (in.)
- 23.94
- Product Attributes - Collapsed Length (in.)
- 14.25
- Product Attributes - Lifted Amount Range (in.)
- 0.00-1.50 in.
- Product Attributes - Manufacturer's Part Number
- 25-320442
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil25-320442 |
| SFX Item ID | 4441330 |
| Supplier Item Code | 4441330 |
| Manufacturer SKU | 25-320442 |
| Manufacturer UPC | 651860881522 |
| Alternative References | bsn-25-320442, 4WD |
Compatibility
Toyota Tacoma 2023-2005
