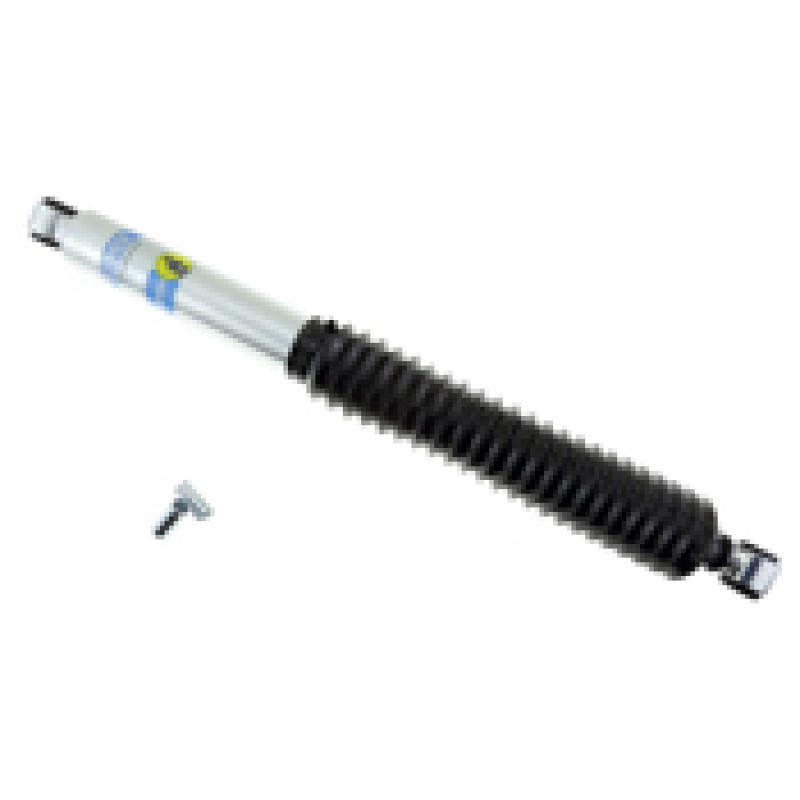

Bilstein 5125 Series Off-Road 9in Lift Truck 46mm Monotube Shock Absorber
Bilstein 5125 Series Off-Road 9in Lift Truck 46mm Monotube Shock Absorber
A$330.33
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Product Overview
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Features and Benefits
- 46mm Digressive Piston w/Self-Adjusting Deflective Disc Valving
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Adjustable: | Yes |
| Body Design: | Smooth Body (Non-Coilover) |
| Body Diameter (ID): | 46mm |
| Body Diameter (OD): | 2.0 in. |
| Body Inside Diameter: | 46mm |
| Boot Included: | Black Bellows |
| Collapsed Length (IN) Rounded: | 15 |
| Collapsed Length (IN): | 15.12 |
| Collapsed Length (MM): | 384 |
| Collapsed Length Rounded: | 15 in. |
| Collapsed Length: | 384mm |
| Compression @0.52m/s: | 840 |
| Description: | B8 5125-Shock Absorber |
| Extended Length (IN) Rounded: | 24 |
| Extended Length (IN): | 24.31 |
| Extended Length (MM): | 617.5 |
| Extended Length Rounded: | 24 in. |
| Extended Length: | 617.5mm |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 0.625 in. |
| Mount Type: | Eye-to-Eye |
| Optional Reservoir Clamp: | N/A |
| Part Number: | bil33-230320 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.26m/s: | 3695 |
| Rebound @0.52m/s: | 3695 |
| Reservoir Included: | No |
| Reservoir: | No |
| Segment: | Light Truck |
| Series: | B8 5125 |
| Shock Stroke: | 9.190 in. |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Eye 0.625 in. |
| WARNING CA Proposition 65 Message: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
No Applications
Part Type
Suspension Shock Absorber
Features
- 46mm Digressive Piston w/Self-Adjusting Deflective Disc Valving
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 33-230320
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Bilstein B8 5125 Series Shocks
- Product Attributes - UPC
- 651860727097
- Product Attributes - Ride Height
- Custom
- Product Attributes - Extended Length (in.)
- 24.31
- Product Attributes - Collapsed Length (in.)
- 15.12
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Rubber/Steel
- Product Attributes - Bushing Color
- Black
- Product Attributes - Boot Included
- Yes
- Product Attributes - Boot Color
- Black
- Product Attributes - Body Diameter (in.)
- 1.811
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- 46mm digressive piston with self-adjusting deflective disc valving.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil33-230320 |
| SFX Item ID | 4440479 |
| Supplier Item Code | 4440479 |
| Manufacturer SKU | 33-230320 |
| Manufacturer UPC | 651860727097 |
| Alternative References | bsn-33-230320, 9in, 46mm |
