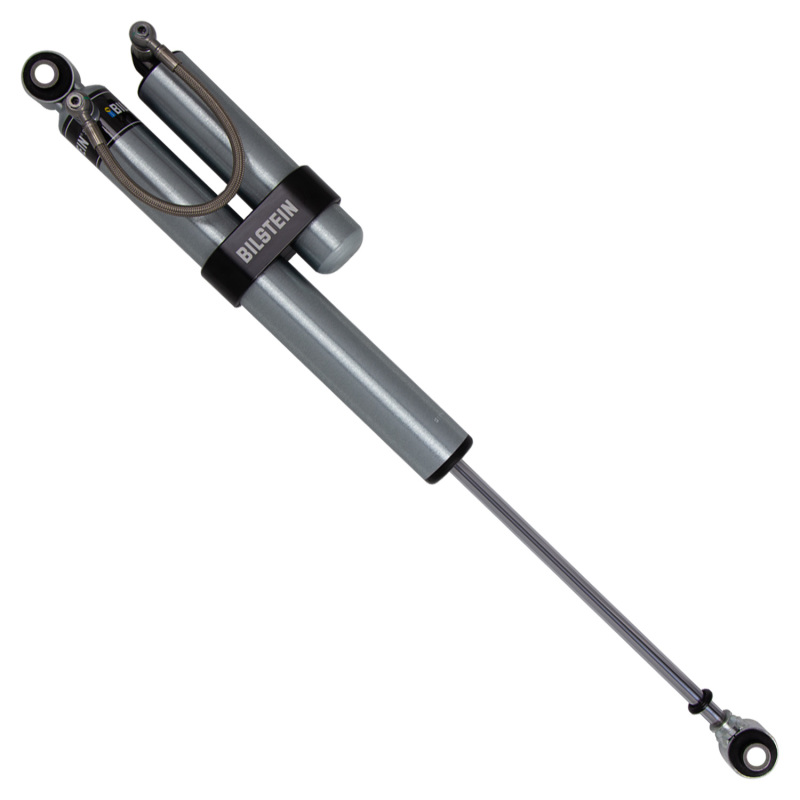

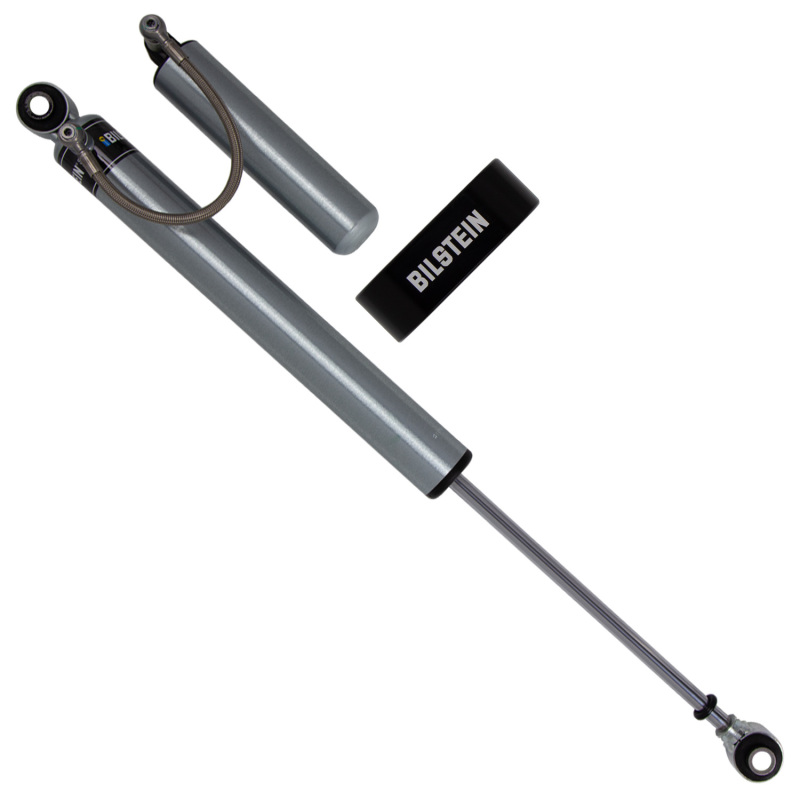

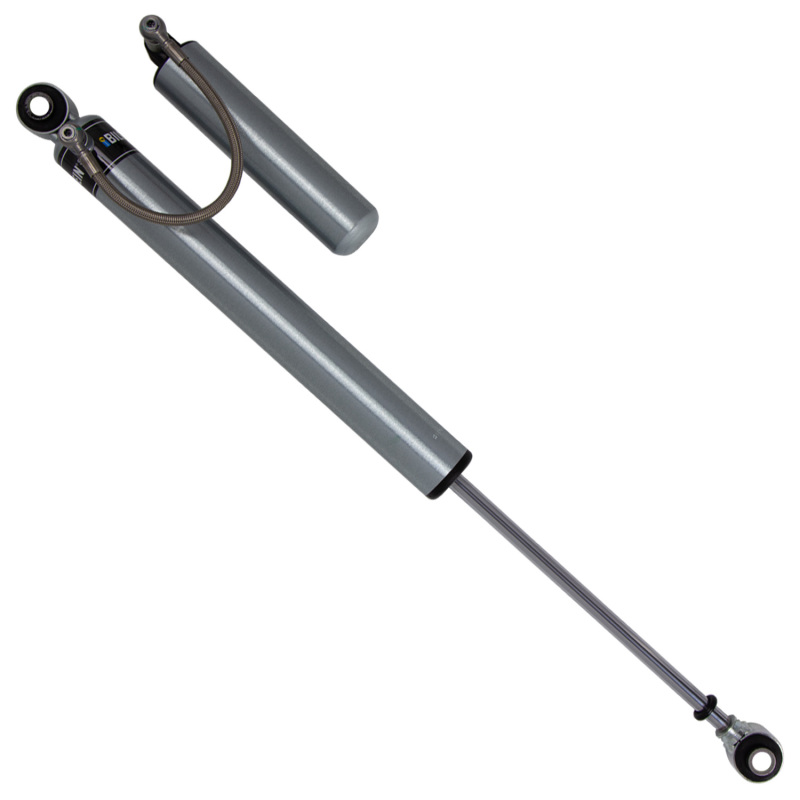

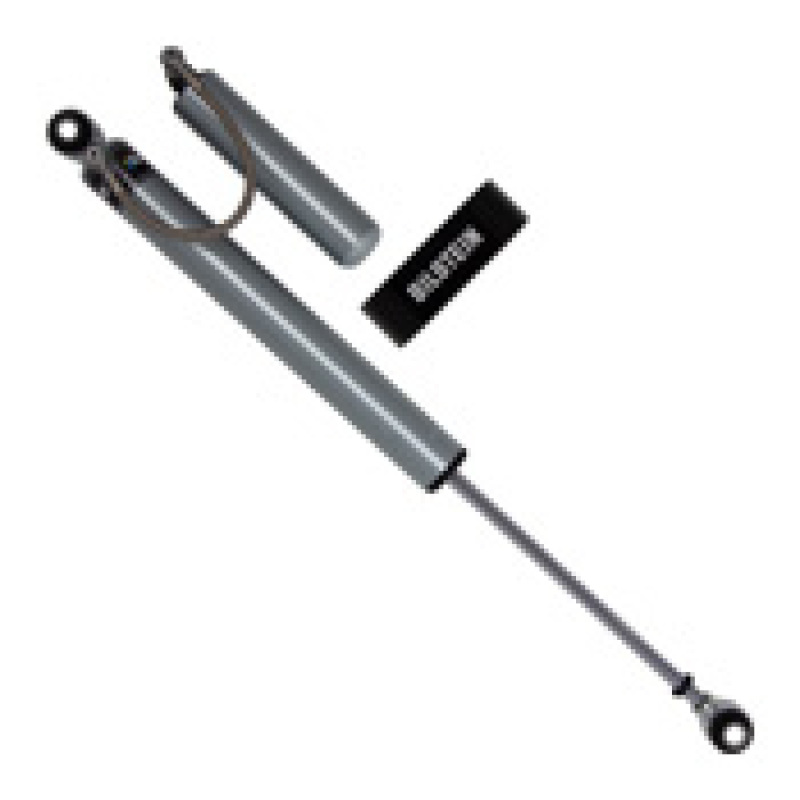

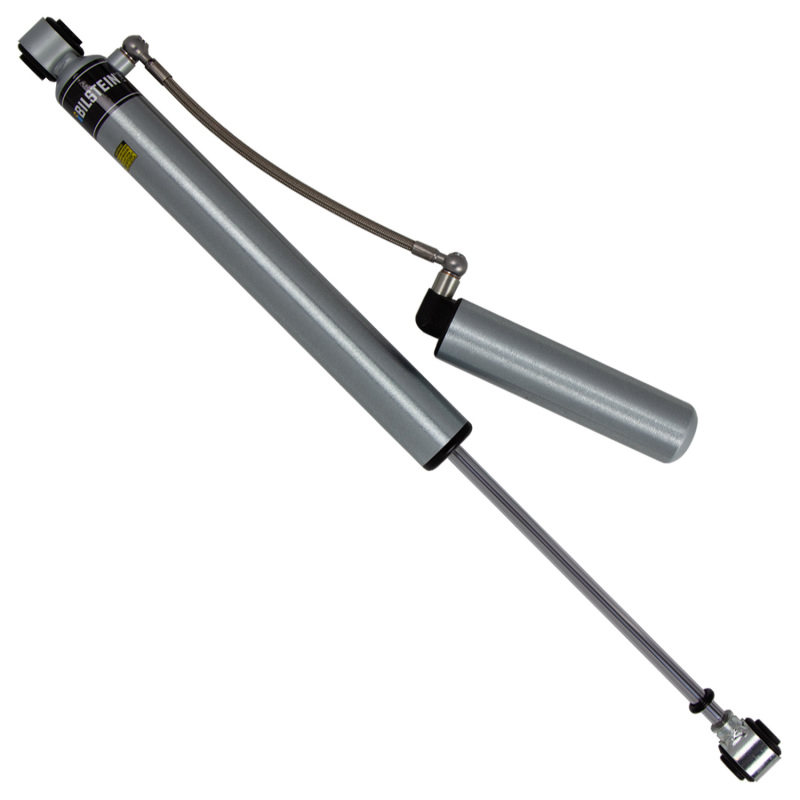

Bilstein 19-22 Ram 3500 B8 5160 Rear Remote Reservoir Shock - 18.30in Collapsed / 27.64in Extended
Bilstein 19-22 Ram 3500 B8 5160 Rear Remote Reservoir Shock - 18.30in Collapsed / 27.64in Extended
A$624.97
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Product Overview
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Features and Benefits
- Remote reservoir increases shock oil capacity for greater heat dissipation
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Billet Reservoir Clamp Included: | Yes |
| Body Design: | Smooth Body (Non-Coilover) |
| Body Diameter (OD): | 2.0 in. |
| Boot Included: | No |
| Collapsed Length (IN): | 18.30 |
| Collapsed Length (MM): | 464.8 |
| Description: | Bilstein 19-22 Ram 3500 B8 5160 Rear Remote Reservoir Shock - 18.30in Collapsed / 27.64in Extended |
| Extended Length (IN): | 29.90 |
| Extended Length (MM): | 759.0 |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 14.1mm |
| Part Number: | bil25-302349 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | Yes |
| Segment: | Light Truck |
| Series: | B8 5160 |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Eye 14.1mm |
Application Summary
Ram 3500 2024-2013
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Remote reservoir increases shock oil capacity for greater heat dissipation
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Specifications
- Product Attributes - UPC
- 651860882291
- Product Attributes - Brand
- Bilstein
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Ride Height
- Stock/Lifted
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Product Line
- Bilstein B8 5160 Series Shocks
- Product Attributes - Boot Included
- No
- Product Attributes - Bushing Color
- Black
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Body Diameter (in.)
- 1.811
- Product Attributes - Extended Length (in.)
- 29.90
- Product Attributes - Collapsed Length (in.)
- 18.30
- Product Attributes - Lifted Amount Range (in.)
- 0.00-1.00 in.
- Product Attributes - Manufacturer's Part Number
- 25-302349
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil25-302349 |
| SFX Item ID | 4441082 |
| Supplier Item Code | 4441082 |
| Manufacturer SKU | 25-302349 |
| Manufacturer UPC | 651860882291 |
| Alternative References | bsn-25-302349, 18.30in, 27.64in |
Compatibility
Ram 3500 2024-2013
