Bilstein 21-24 Ford Bronco B8 8112 Suspension Shock Absorber and Coil Spring Assembly - Front Left
Bilstein 21-24 Ford Bronco B8 8112 Suspension Shock Absorber and Coil Spring Assembly - Front Left
A$3,053.95
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

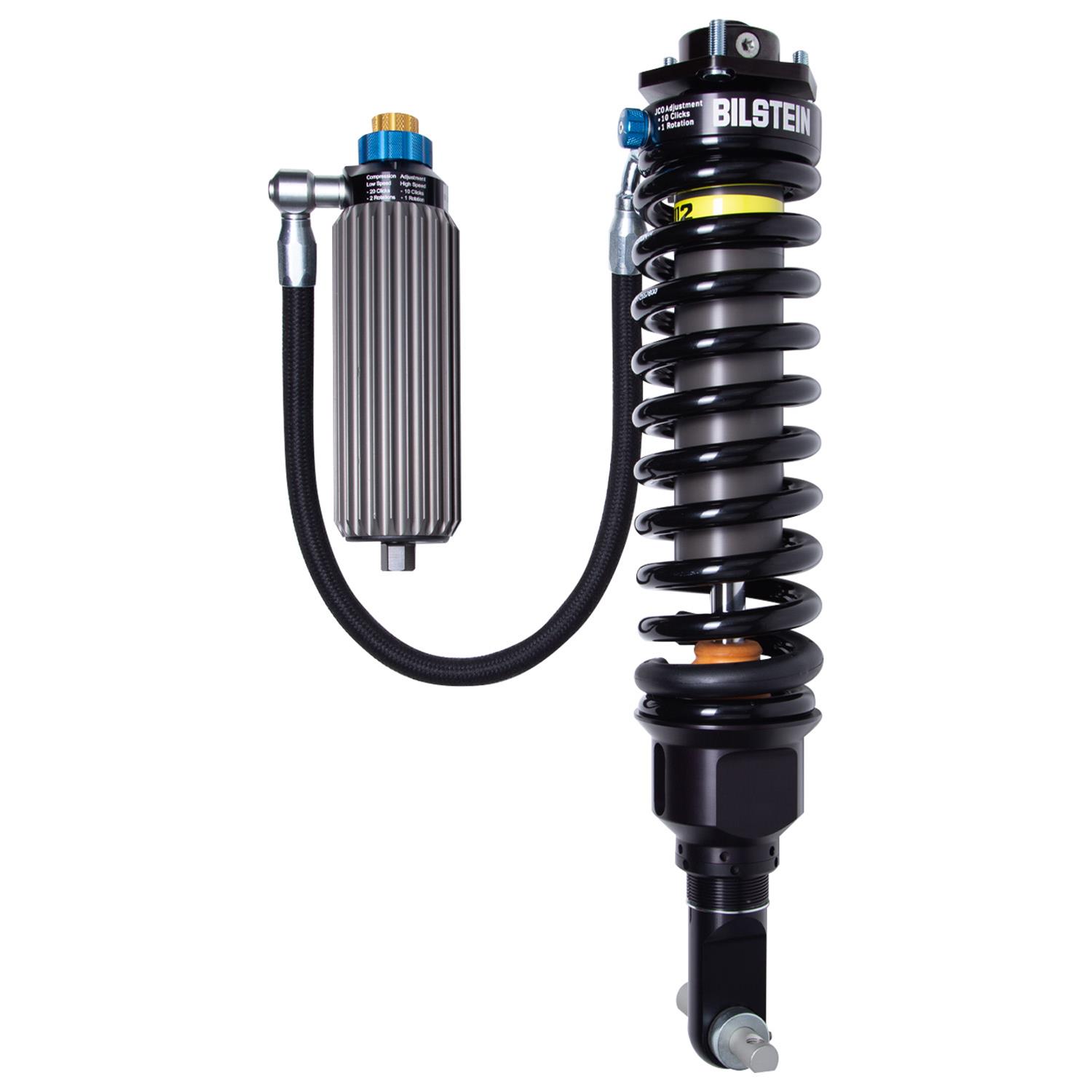

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.
Product Overview
Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Features and Benefits
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
Product Details
| Adjustable Damping: | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
|---|---|
| Aftermarket Upper Arms Required: | Yes |
| Body Design: | Smooth Body (Coilover) |
| Body Diameter (OD): | 2.65 in. |
| Body Material: | Aluminum |
| Boot Included: | No |
| Collapsed Length (IN): | 17.59 |
| Collapsed Length (MM): | 446.2 |
| Description: | Bilstein 21-24 Ford Bronco B8 8112 Suspension Shock Absorber and Coil Spring Assembly - Front Left |
| Extended Length (IN): | 23.40 |
| Extended Length (MM): | 594.7 |
| Finish: | Dampers: EVO Grey/Springs: Black |
| Internal Design: | Monotube |
| Lower Mount Type: | Crossbar |
| Part Number: | bil41-314319 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 60mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | Yes - Finned Aluminum |
| Segment: | Light Truck |
| Series: | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included: | Yes |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Special |
Application Summary
Ford Bronco 2024-2021
Part Type
Suspension Shock Absorber and Coil Spring Assembly
Features
- Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 41-314319
- Product Attributes - Part Type
- Coilover Shocks and Struts
- Product Attributes - Product Line
- Bilstein B8 8112 ZoneControl CR DSA+ Coilover Shocks
- Product Attributes - UPC
- 651860934150
- Product Attributes - Coilover Shock Type
- Double-adjustable
- Product Attributes - Suspension Height Adjustment
- 1.7-2.6 in. raised
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Black
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Extended Length (in.)
- 23.40
- Product Attributes - Collapsed Length (in.)
- 17.59
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Body Diameter (in.)
- 2.362
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Bushing Color
- Black
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Finish
- Black
- Product Attributes - Adjustable Mounting Bracket Included
- No

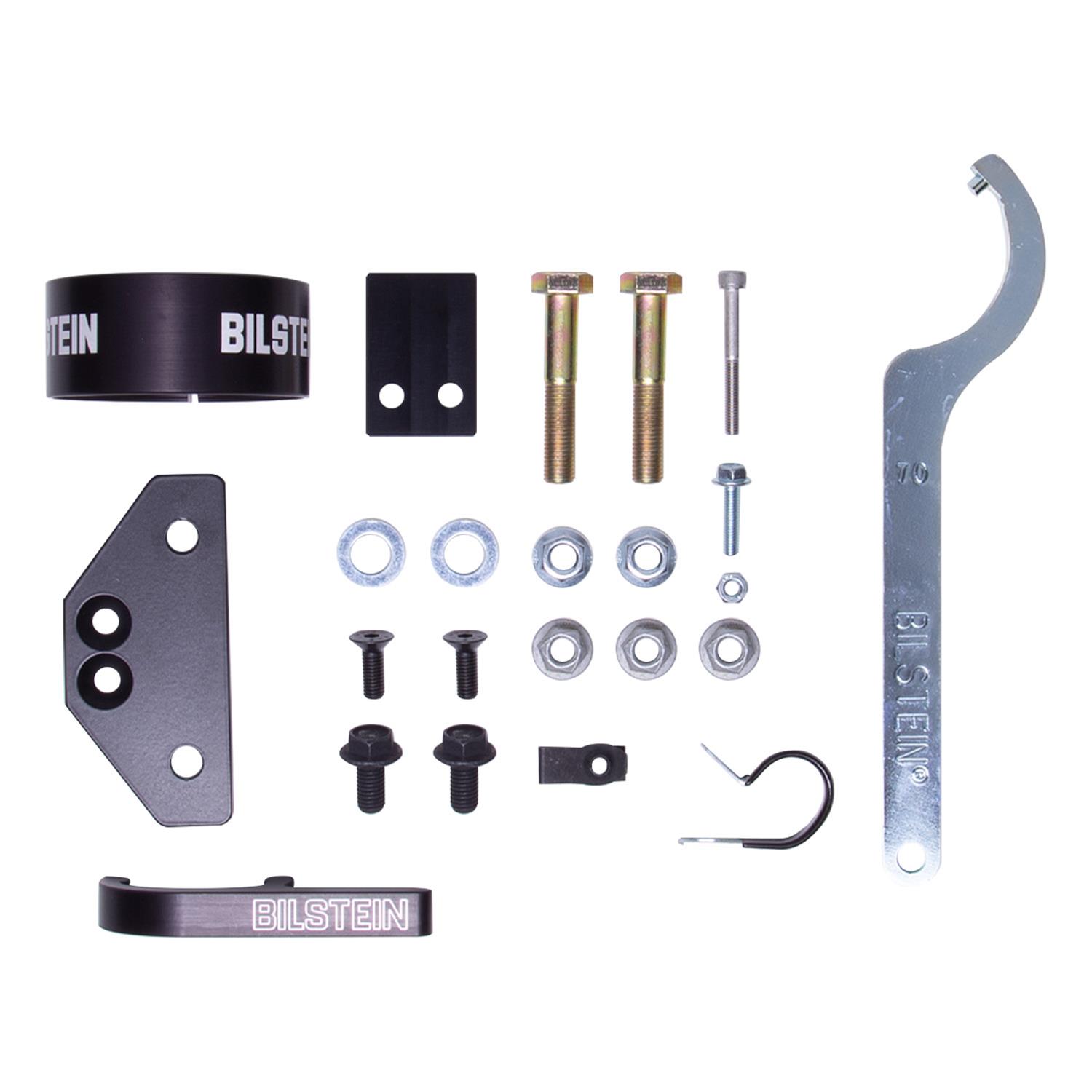

- Product Attributes - Hardware Included
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil41-314319 |
| SFX Item ID | 4441796 |
| Supplier Item Code | 4441796 |
| Manufacturer SKU | 41-314319 |
| Manufacturer UPC | 651860934150 |
| Alternative References | BSN-41-314319 |
Compatibility
Ford Bronco 2024-2021
