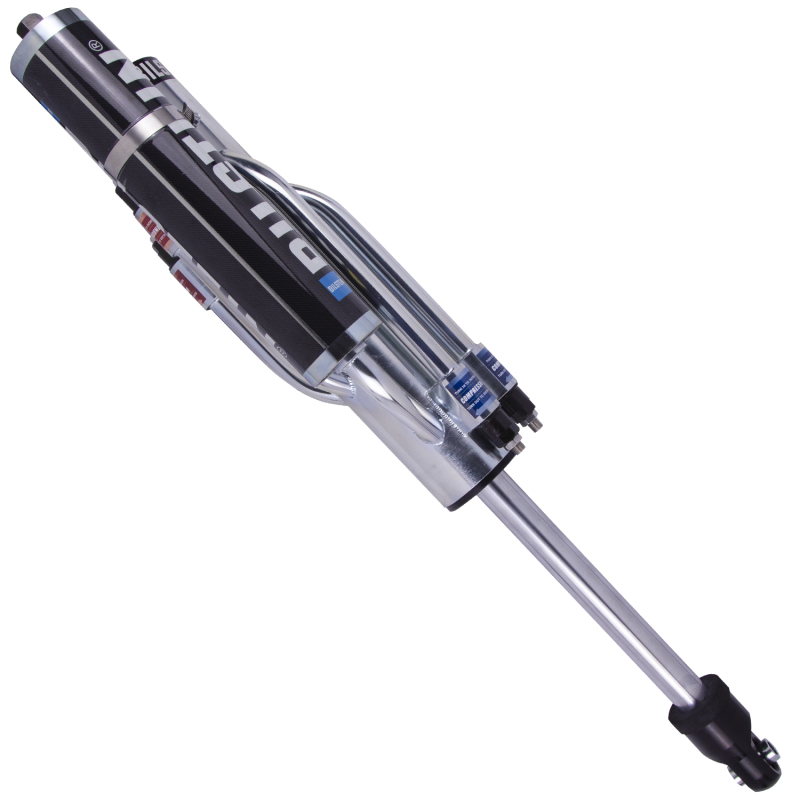

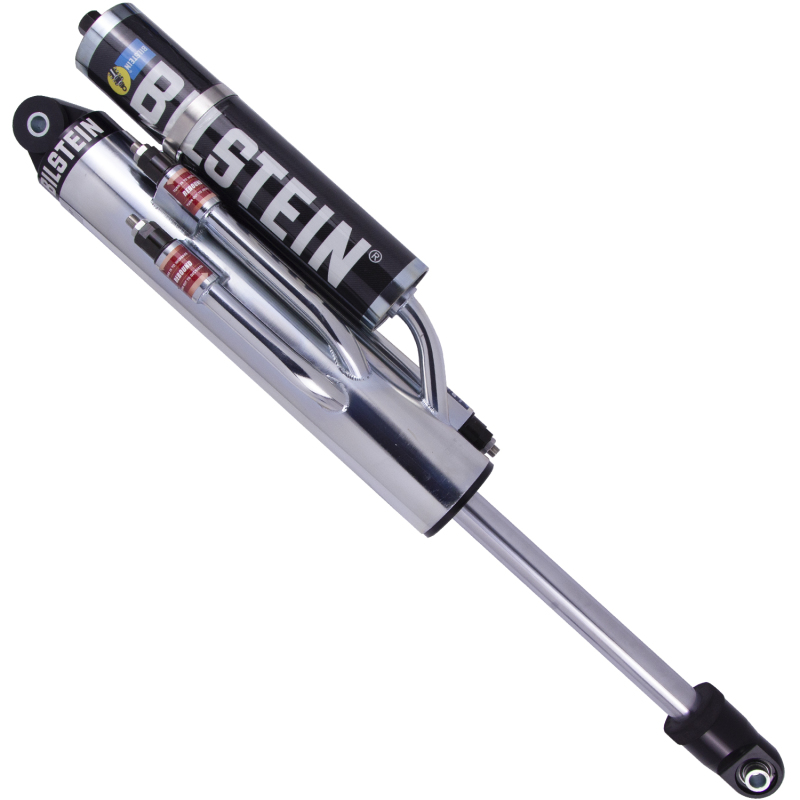

Bilstein 70mm 4 Tube Bypass 10in Stroke Right M 9200 Shock Absorber
Bilstein 70mm 4 Tube Bypass 10in Stroke Right M 9200 Shock Absorber
A$3,069.67
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Product Overview
BILSTEIN 9200 Series Bypass shocks are position sensitive and adjustable, offering 6 zones of damping control and 4 external adjusters: 2 rebound and 2 compression. Utilizing an externally adjustable bypass shock is the easiest and most effective way to tune your off-road suspension for ultimate performance.
*9200 Series Bypass Product Highlights*
* Available in 60mm, 70mm and 83mm monotubes
* 4-tube, position sensitive with adjustable rebound and compression
* Multiple stroke lengths available ranging from 8†to 18â€
* 60mm piggy back or remote reservoir
* Case hardened, centerless ground piston rod (22mm or 1 1/8â€) depending on body diameter
* Machined billet aluminum components
* 5/8†uniball mounts with 1/2†step spacers
* 3 stage high-temp seal
* Red synthetic high-temp racing oil
* Zinc plated
* Multiple valvings available
* Owner rebuildable
* Made in the USA
*9200 Series Coilover Product Highlights*
* Available in 46mm and 60mm monotubes
* Threaded body with dual-rate coilover hardware
* Multiple stroke lengths available ranging from 8†to 16â€
* Case hardened, centerless ground 22mm piston rod
* Machined billet aluminum components
* 5/8†uniball mounts with 1/2†step spacers
* 60mm remote reservoir
* 3 stage high-temp seal
* Red synthetic high-temp racing oil
* Zinc plated
* Multiple valvings available
* Owner rebuildable
* Made in the USA
*NOTE* BILSTEIN measures shock size by piston diameter. Outer body diameter is the industry standard measurement for off-road shocks.
Features and Benefits
- Off Road Suspension For Ultimate Performance
- Multiple stroke lengths available ranging from 8" to 18"
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
Product Details
| Body Design: | 4-Tube Bypass Screw Top |
|---|---|
| Body Diameter (ID): | 70mm |
| Body Diameter (OD): | 3.0 in. |
| Body Inside Diameter: | 70mm |
| Boot Included: | N/A |
| Collapsed Length (IN) Rounded: | 20 |
| Collapsed Length (IN): | 19.50 |
| Collapsed Length (MM): | 495.3 |
| Collapsed Length Rounded: | 20 in. |
| Collapsed Length: | 495.3mm |
| Compression @0.52m/s: | Custom |
| Description: | M 9200 (Bypass)-Shock Absorber |
| Extended Length (IN) Rounded: | 30 |
| Extended Length (IN): | 29.50 |
| Extended Length (MM): | 749.3 |
| Extended Length Rounded: | 30 in. |
| Extended Length: | 749.3mm |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 0.500 in. x 1.500 in. |
| Mount Type: | Eye-to-Eye |
| Optional Reservoir Clamp: | N/A |
| Part Number: | bil33-250755 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 70mm |
| Position: | Right |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.26m/s: | Custom |
| Rebound @0.52m/s: | Custom |
| Reservoir Included: | Yes |
| Reservoir: | Yes |
| Segment: | Motorsports |
| Series: | M 9200 (Bypass) |
| Shock Stroke: | 10.000 in. |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Eye 0.500 in. x 1.500 in. |
| WARNING CA Proposition 65 Message: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
No Applications
Part Type
Suspension Shock Absorber
Features
- 4-tube, position sensitive with adjustable rebound and compression
- Available in 60mm, 70mm and 83mm monotubes
- Multiple stroke lengths available ranging from 8" to 18"
- Off Road Suspension For Ultimate Performance
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 33-250755
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Bilstein M 9200 Series Bypass Shocks
- Product Attributes - UPC
- 651860766485
- Product Attributes - Ride Height
- Custom
- Product Attributes - Extended Length (in.)
- 29.50
- Product Attributes - Collapsed Length (in.)
- 19.50
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Steel
- Product Attributes - Bushing Color
- Natural
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 3.000
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Shock features a 4-tube bypass and 10 in. of travel.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil33-250755 |
| SFX Item ID | 4441364 |
| Supplier Item Code | 4441364 |
| Manufacturer SKU | 33-250755 |
| Manufacturer UPC | 651860766485 |
| Alternative References | bsn-33-250755, 70mm, 10in |
