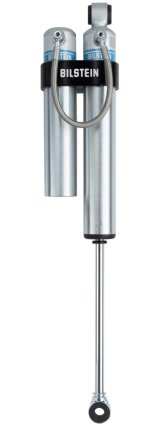

Bilstein B8 5165 16.3in Travel Remote Reservoir - Eye/Eye 360/80
Bilstein B8 5165 16.3in Travel Remote Reservoir - Eye/Eye 360/80
A$548.07
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Bilstein B8 5165 remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 remote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.
Product Overview
Bilstein B8 5165 remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 remote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.
Features and Benefits
- Remote reservoir increases shock oil capacity for greater heat dissipation
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Body Design: | Smooth Body (Non-Coilover) |
| Body Diameter (OD): | 2.0 in. |
| Boot Included: | No |
| Collapsed Length (IN) Rounded: | 11 |
| Collapsed Length (IN): | 11.08 |
| Collapsed Length (MM): | 281.5 |
| Compression @0.52m/s: | 755 |
| Description: | Bilstein B8 5165 16.3in Travel Remote Reservoir - Eye/Eye 360/80 |
| Extended Length (IN) Rounded: | 17 |
| Extended Length (IN): | 17.35 |
| Extended Length (MM): | 440.7 |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 5/8in |
| Mount Type: | Eye-to-Eye |
| Optional Reservoir Clamp: | 11-176015 |
| Part Number: | bil25-331868 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.52m/s: | 3775 |
| Reservoir: | Yes |
| Segment: | Light Truck |
| Series: | B8 5165 |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Eye 5/8in |
Application Summary
No Applications
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Remote reservoir increases shock oil capacity for greater heat dissipation
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 25-331868
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Bilstein B8 5165 Series Shocks
- Product Attributes - UPC
- 651860914725
- Product Attributes - Ride Height
- Custom
- Product Attributes - Extended Length (in.)
- 17.35
- Product Attributes - Collapsed Length (in.)
- 11.08
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Bushing Color
- Black
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 1.811
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Non-coil-over design. Compression @0.52m/s: 755, rebound @0.52m/s: 3,775.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil25-331868 |
| SFX Item ID | 4441756 |
| Supplier Item Code | 4441756 |
| Manufacturer SKU | 25-331868 |
| Manufacturer UPC | 651860914725 |
| Alternative References | BSN-25-331868, 16.3in |
