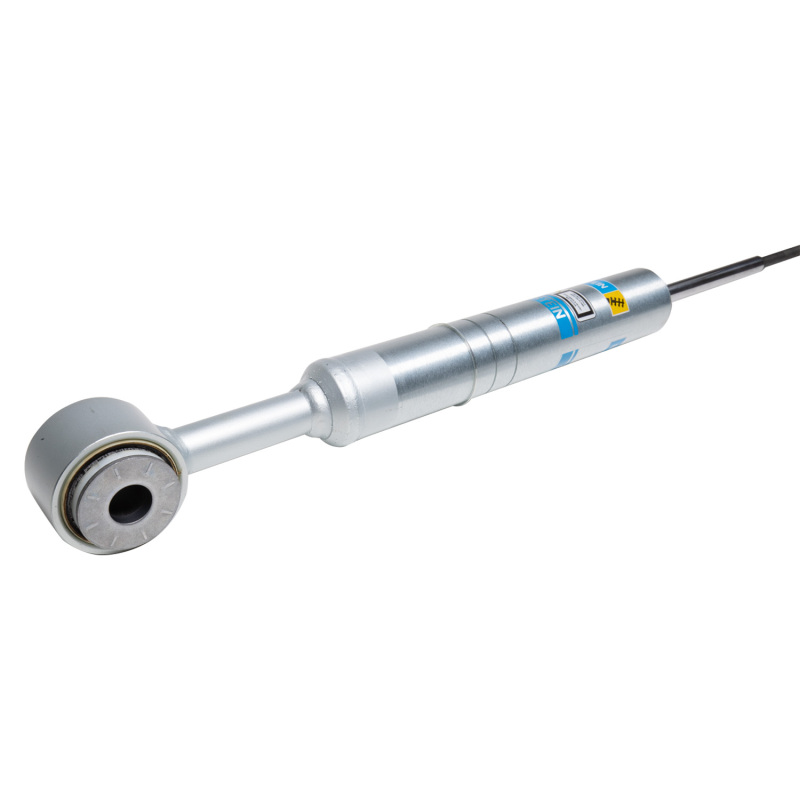

Bilstein 22-24 Toyota Tundra Front B8 5100 Shock
Bilstein 22-24 Toyota Tundra Front B8 5100 Shock
A$397.80
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Product Overview
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features and Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Body Design: | Snap Ring Grooved Body (Coilover) |
| Body Diameter (OD): | 2.0 in. |
| Boot Included: | Black Bellows |
| Collapsed Length (IN): | 15.91 |
| Collapsed Length (MM): | 404.0 |
| Description: | Bilstein 22-24 Toyota Tundra Front B8 5100 Shock |
| Extended Length (IN): | 20.22 |
| Extended Length (MM): | 513.5 |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 16.2mm |
| Part Number: | bil24-329200 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | No |
| Segment: | Light Truck |
| Series: | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included: | Yes |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Stem |
Application Summary
Toyota Sequoia 2024-2023, Tundra 2024-2022
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 24-329200
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Bilstein B8 5100 Series Shocks
- Product Attributes - UPC
- 651860910031
- Product Attributes - Ride Height
- Stock/Lifted
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Lifted Amount Range (in.)
- 0.00-2.80 in.
- Product Attributes - Extended Length (in.)
- 20.22
- Product Attributes - Collapsed Length (in.)
- 15.91
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Bushing Color
- Black
- Product Attributes - Boot Included
- Yes
- Product Attributes - Boot Color
- Black
- Product Attributes - Body Diameter (in.)
- 1.811
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil24-329200 |
| SFX Item ID | 4441891 |
| Supplier Item Code | 4441891 |
| Manufacturer SKU | 24-329200 |
| Manufacturer UPC | 651860910031 |
| Alternative References | bsn-24-329200 |
Compatibility
Toyota Sequoia 2024-2023, Tundra 2024-2022
