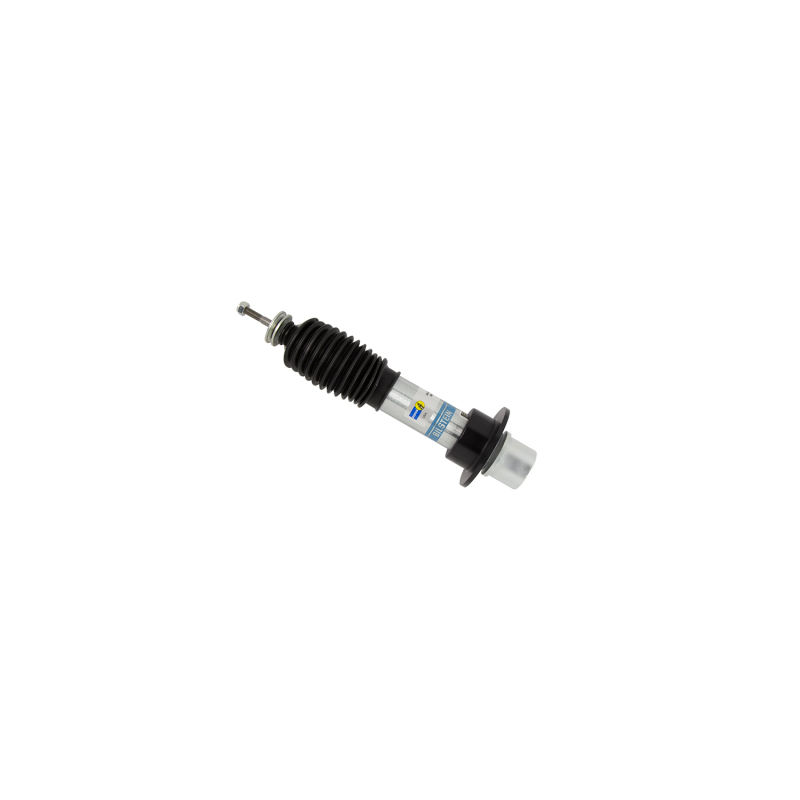

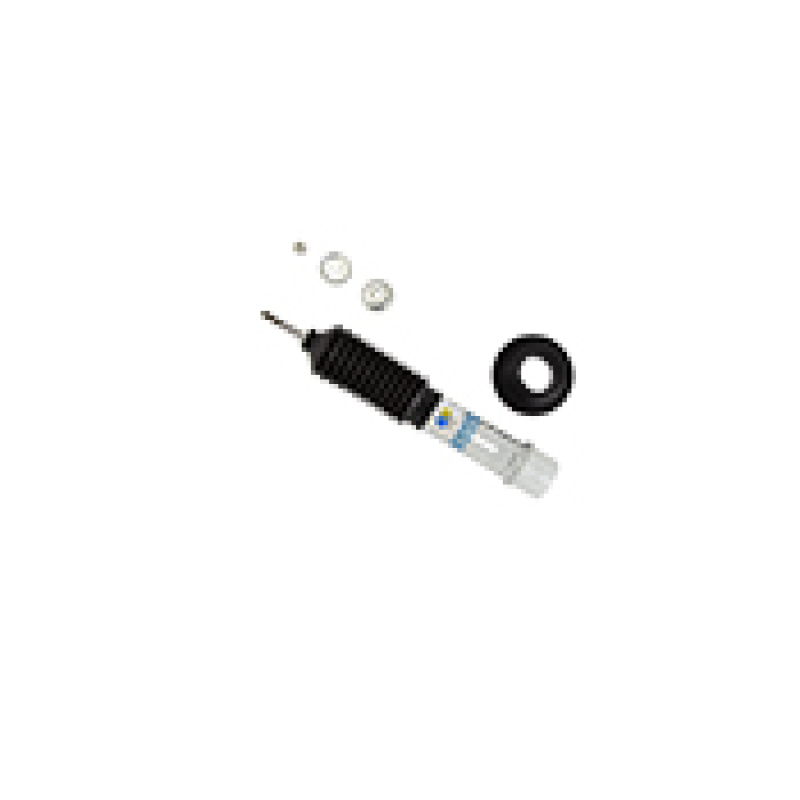

Bilstein B8 5100 Series 02-12 Jeep Liberty Front Shock Absorber - Front Lift 1-2.5in
Bilstein B8 5100 Series 02-12 Jeep Liberty Front Shock Absorber - Front Lift 1-2.5in
A$387.45
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Product Overview
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features and Benefits
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Body Design: | Snap Ring Grooved Body (Coilover) |
| Body Diameter (OD): | 2.0 in. |
| Boot Included: | Black Bellows |
| Collapsed Length (IN): | 10.11 |
| Collapsed Length (MM): | 256.8 |
| Description: | Bilstein B8 5100 Series 02-12 Jeep Liberty Front Shock Absorber - Front Lift 1-2.5in |
| Extended Length (IN): | 13.99 |
| Extended Length (MM): | 355.3 |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Base Cup |
| Part Number: | bil24-282642 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | No |
| Segment: | Light Truck |
| Series: | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included: | Yes |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Stem |
Application Summary
Jeep Liberty 2012-2002
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Specifications
- Product Attributes - UPC
- 651860819815
- Product Attributes - Brand
- Bilstein
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Boot Color
- Black
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Lower Mount
- Base cup
- Product Attributes - Ride Height
- Lifted
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Product Line
- Bilstein B8 5100 Series Shocks
- Product Attributes - Boot Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Extended Length (in.)
- 13.99
- Product Attributes - Collapsed Length (in.)
- 10.11
- Product Attributes - Lifted Amount Range (in.)
- 1.00-2.50 in.
- Product Attributes - Manufacturer's Part Number
- 24-282642
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil24-282642 |
| SFX Item ID | 4440112 |
| Supplier Item Code | 4440112 |
| Manufacturer SKU | 24-282642 |
| Manufacturer UPC | 651860819815 |
| Alternative References | bsn-24-282642, 1-2.5in |
Compatibility
Jeep Liberty 2012-2002
