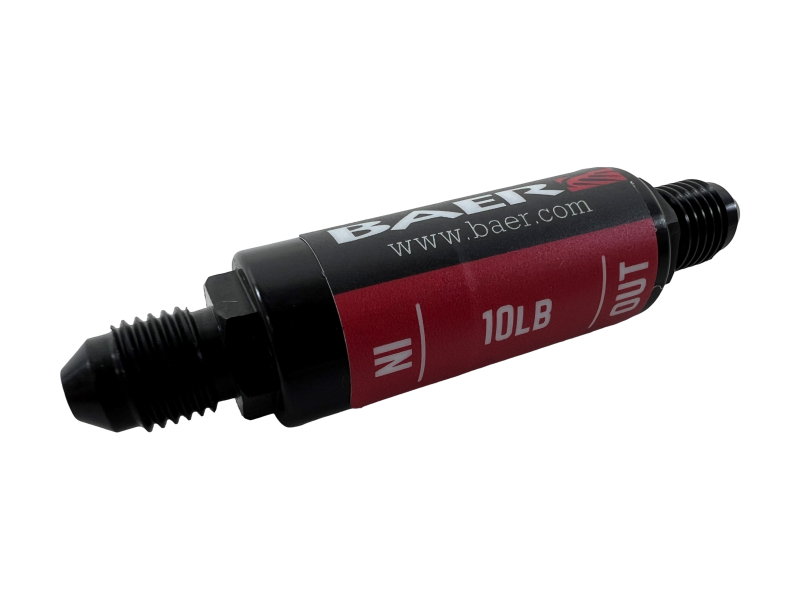

Baer Brakes Residual Valve - 10LB, -3AN Fittings
Baer Brakes Residual Valve - 10LB, -3AN Fittings
A$84.52
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

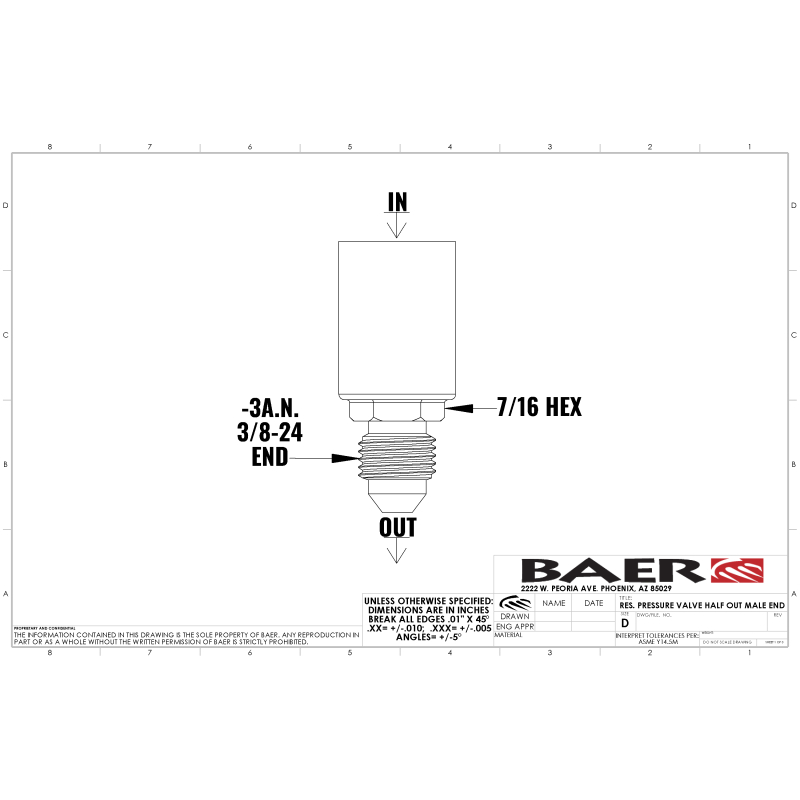

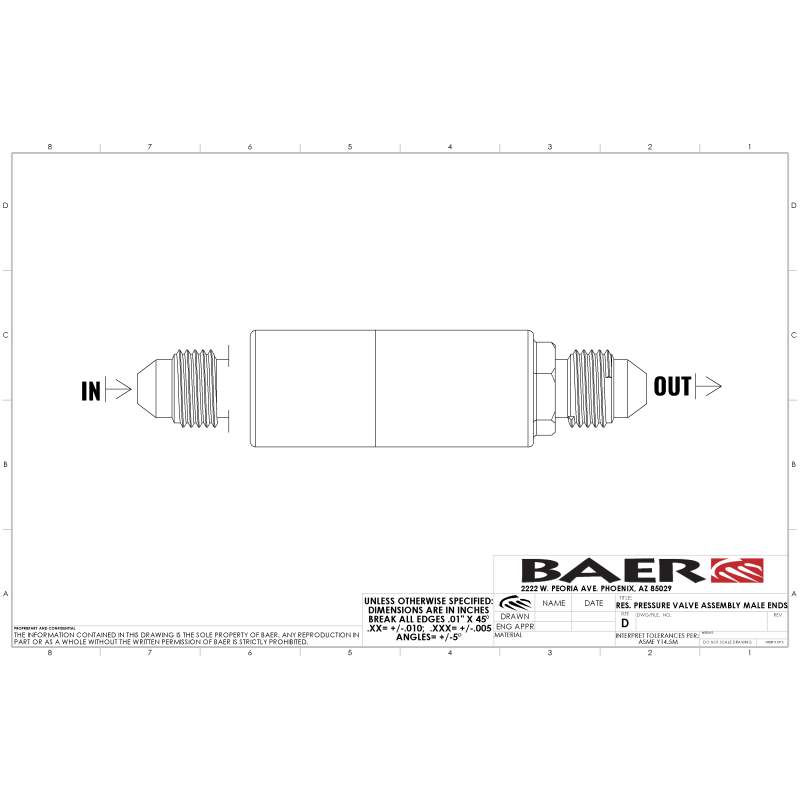

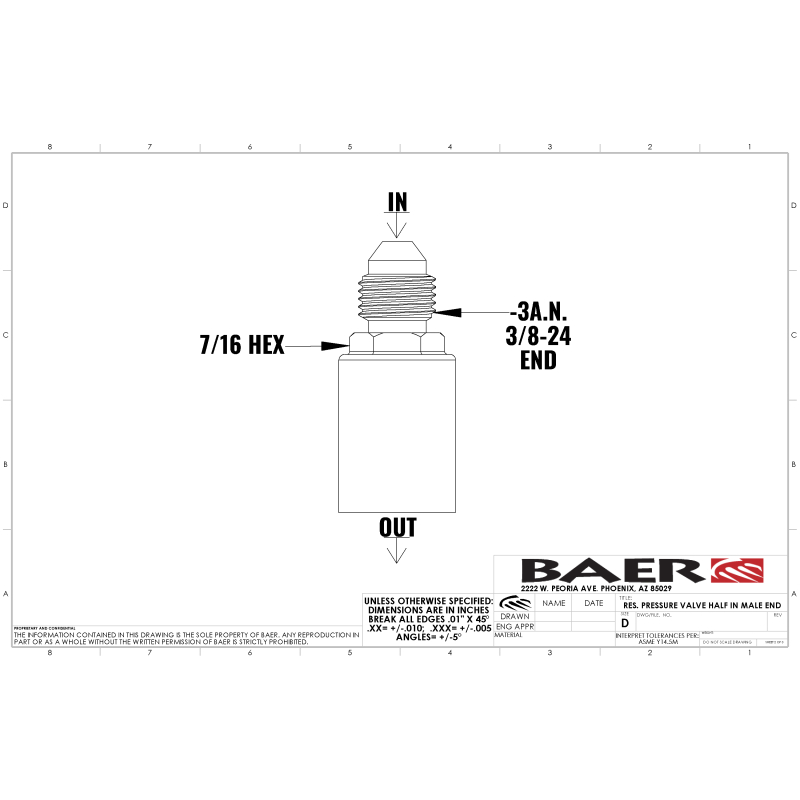

Pressure residual valves are designed to maintain a small amount of line pressure needed in certain situations. The 2lb valve would be used with disc brakes whenever the master cylinder is mounted below or level with the calipers to prevent possible fluid drain back which can result in excessive pedal travel (4 wheel disc brake vehicle would use 2 valves, one in the front and on in the rear circuit). A 10lb valve would be used in any drum brake circuit no matter of the master cylinder location. Pressure residual valves are machined out of billet aluminum, are available with 3/8-24 inverted flare female or -3AN male threads and have a black anodized finished.. Billet aluminum frame mounts are available separately.
Product Overview
Pressure residual valves are designed to maintain a small amount of line pressure needed in certain situations. The 2lb valve would be used with disc brakes whenever the master cylinder is mounted below or level with the calipers to prevent possible fluid drain back which can result in excessive pedal travel (4 wheel disc brake vehicle would use 2 valves, one in the front and on in the rear circuit). A 10lb valve would be used in any drum brake circuit no matter of the master cylinder location. Pressure residual valves are machined out of billet aluminum, are available with 3/8-24 inverted flare female or -3AN male threads and have a black anodized finished.. Billet aluminum frame mounts are available separately.
Features and Benefits
- 10-Pound Valve
- -3AN Male Fitting
- Billet Aluminum
- Black Anodized Finish
Product Details
| Box Count: | 1 |
|---|---|
| Brand: | Baer Brakes |
| Category: | Vehicles, Equipment, Tools, and Supplies |
| Description: | Pressure Residual Valve - 10LB, -3AN Fittings |
| Emission Code: | 6 |
| Export Description: | Brake Components |
| Finish: | Black Anodized |
| Grade Type: | Premium |
| Includes: | 1x Residual Valve |
| Inlet Diameter: | -3AN Male |
| Material: | Billet aluminum |
| Mounts Included: | No |
| Outlet Diameter: | -3AN Male |
| Part Number: | bae6805145 |
| Pressure: | 10 Pounds |
| Product Line: | Residual Valve |
| Product Type: | Residual Valve |
| Prop 65 - Short Label: | WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity: | 1 |
| Sub Category: | Hardware, Fasteners and Fittings |
| Title: | Baer Brakes Pressure Residual Valve – Billet Aluminum, 10#, -3AN Male |
| Universal Or Specific Fit: | Universal |
| Warning: | California Proposition 65 |
| part type: | Brake Hydraulic System Pressure Bleeder Master Cylinder Adapter |
Features
Black Anodized Finish
Specifications
- Box Count:
- 1
- Brand:
- Baer Brakes
- Category:
- Vehicles, Equipment, Tools, and Supplies
- Description:
- Pressure Residual Valve - 10LB, -3AN Fittings
- Emission Code:
- 6
- Export Description:
- Brake Components
- Finish:
- Black Anodized
- Grade Type:
- Premium
- Includes:
- 1x Residual Valve
- Inlet Diameter:
- -3AN Male
- Material:
- Billet aluminum
- Mounts Included:
- No
- Outlet Diameter:
- -3AN Male
- Part Number:
- bae6805145
- Pressure:
- 10 Pounds
- Product Line:
- Residual Valve
- Product Type:
- Residual Valve
- Prop 65 - Short Label:
- WARNING: Cancer Harm - www.p65warnings.ca.gov
- Quantity:
- 1
- Sub Category:
- Hardware, Fasteners and Fittings
- Title:
- Baer Brakes Pressure Residual Valve – Billet Aluminum, 10#, -3AN Male
- Universal Or Specific Fit:
- Universal
- Warning:
- California Proposition 65
- part type:
- Brake Hydraulic System Pressure Bleeder Master Cylinder Adapter
Reference Information
| Brand Name/s | Baer Brakes |
|---|---|
| StreetFX SKU | bbb6805145 |
| SFX Item ID | 6873735 |
| Supplier Item Code | 6873735 |
| Manufacturer SKU | 6805145 |
| Manufacturer UPC | 844165052364 |
| Alternative References | bae6805145, 10LB, -3AN |
