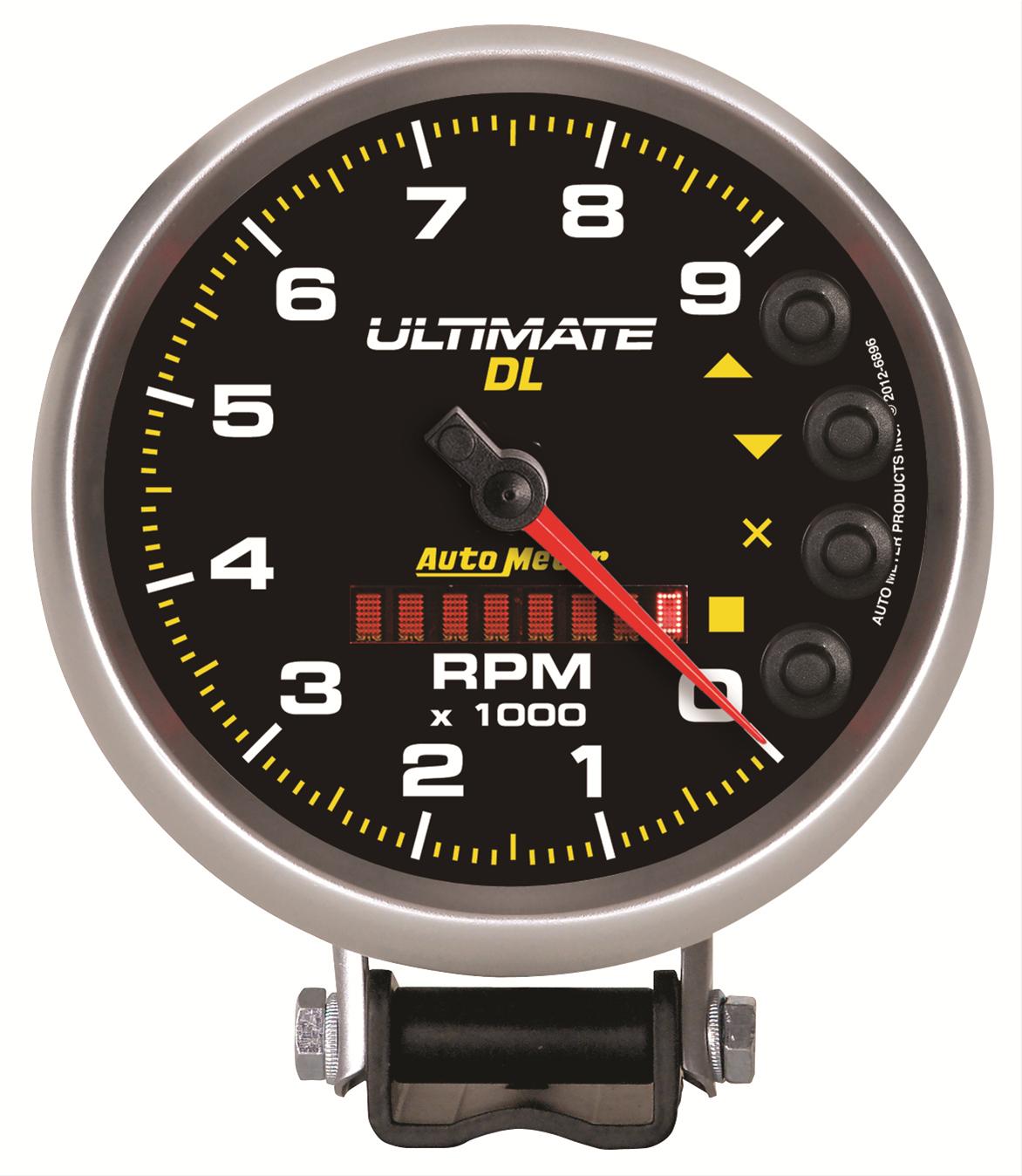

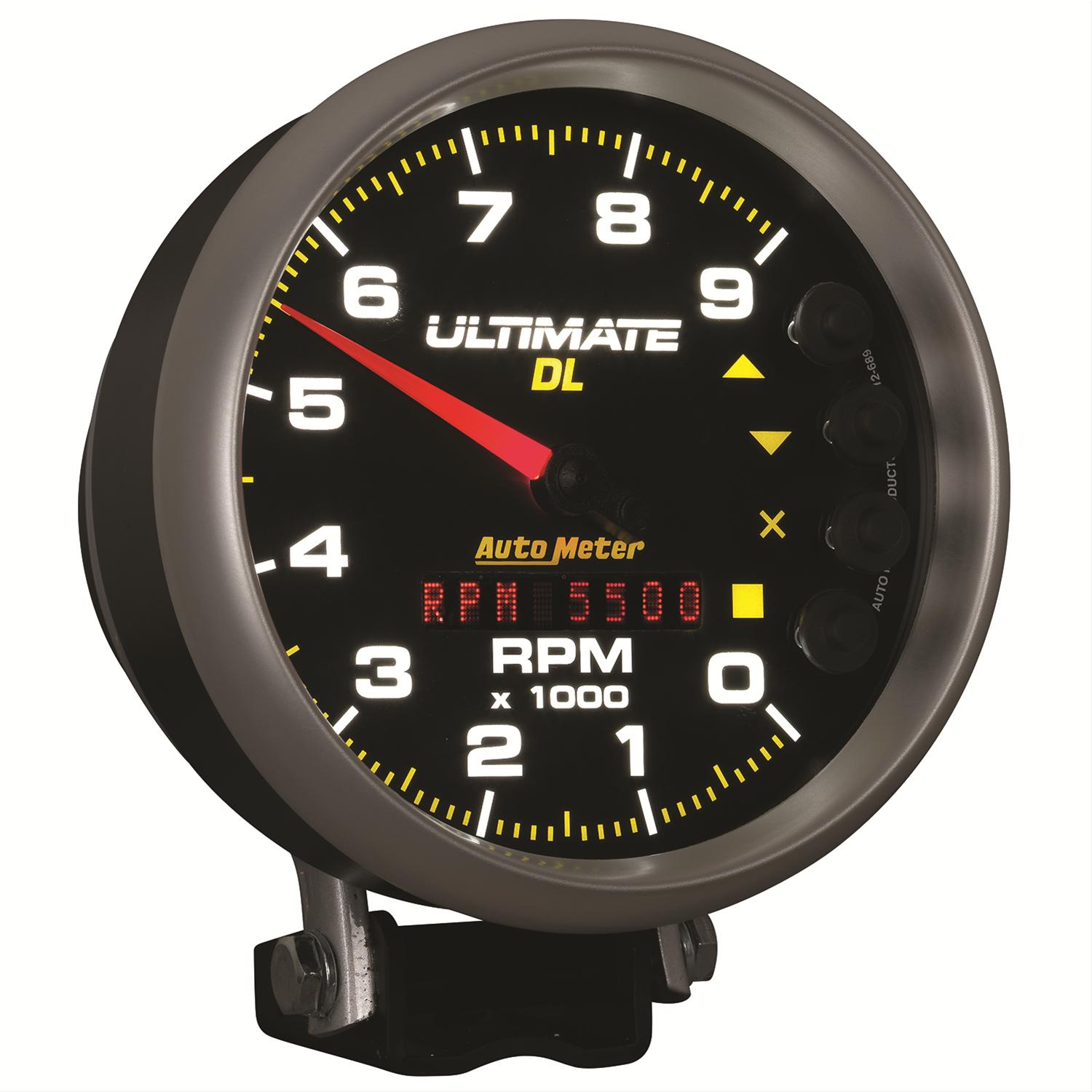

Autometer 5 inch Ultimate DL Playback Tachometer 9000 RPM - Black

SKU: ATM6896

Gauges

AM Ultimate DL Tach...

Autometer

Autometer 5 inch Ultimate DL Playback Tachometer 9000 RPM - Black

SKU: ATM6896

Gauges

AM Ultimate DL Tach...

LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

AutoMeter Ultimate playback tachometers have helped drag racers trip the win lights for decades by providing the necessary data to protect engines, fine tune and diagnose clutch and converter strategies, nail shift points and improve launch consistency. The Ultimate DL expands upon the Ultimate III design adding even more critical performance data to your analysis toolbox (7 channels in total). Built around AutoMeter's responsive competition grade movements, the Ultimate DL tracks the fastest revving engines with 0-11k RPM sweep time of just 333 milliseconds. 30% lighter than the Ultimate II designs which they replace, Ultimate DL tachometers still come packed with features. Record and playback up to 4 runs (60 sec. ea.) worth of engine and driveshaft RPM data, Lateral, Longitudinal, and Vertical G Forces, Air/Fuel ratio and a pressure channel of your choice or download high resolution (100 Hz) data to our easy to use DataPro software for more advanced analysis. 4 Stage shift light control is standard and a new and improved ARMS (automatic recording memory start) system makes for worry-free driver operation. The latest LED technology provides superior visibility, shock and vibration resistance while reducing power consumption requirements and expanded cylinder selection means they support more applications than ever before!

Part Type

Tachometer Gauge

Data: v4.2 - Upd: 2026-10-13 16:48:21

Features

12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Available pressure channel allows you to expand the Ultimate DL to additionally record fuel pressure, oil pressure, or brake pressure during your run.
Available wideband channel allows you to expand the Ultimate DL to additionally record air/fuel ratio during your run. Playback the air/fuel ratio on the tachometer or download into DataPro to further analyze the data.
Compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
Download data to your PC via USB
Includes award winning DataPro analysis software
Monitor and record Engine and Driveshaft RPM to analyze wheelspin, clutch slip, coverter lock up, gear changes and more!
NHRA Competition legal
Optimize use of your engine's power band and improve vehicle run performance and driver gear changes with an optional rapid response, high visibility user-programmable 4-stage shift light.
Playback the pressure channel on the tachometer or download into DataPro to further analyze the data.

Specifications

Product Attributes - Brand: AutoMeter
Product Attributes - Manufacturer's Part Number: 6896
Product Attributes - Part Type: Gauges
Product Attributes - Product Line: AutoMeter Ultimate DL Tachometers
Product Attributes - UPC: 046074068966
Product Attributes - Gauge Type: Tachometer
Product Attributes - OEM Replacement: No
Product Attributes - Gauge Style: Analog
Product Attributes - Sending Unit: Electrical
Product Attributes - Gauge Diameter (in.): 5 in.
Product Attributes - Gauge Diameter (mm): 127mm
Product Attributes - Gauge Range: 0-9,000 rpm
Product Attributes - Gauge Shape: Round
Product Attributes - Sweep: Full sweep
Product Attributes - Gauge Face Color: Black
Product Attributes - Gauge Number Color: White
Product Attributes - Pointer Color: Red
Product Attributes - Bezel Color: Silver
Product Attributes - Illuminated: Yes
Product Attributes - Memory Recall: Yes
Product Attributes - Playback: Yes
Product Attributes - Liquid-Filled: No
Product Attributes - Shift Light Included: No
Product Attributes - Tripometer: No
Product Attributes - Sending Unit Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Includes sensor and magnets for reading driveshaft RPM

Reference Information

Brand Name/s	Autometer
StreetFX SKU	atm6896
SFX Item ID	4079949
Supplier Item Code	4079949
Manufacturer SKU	6896
Manufacturer UPC	46074068966
Alternative References	AUT6896
