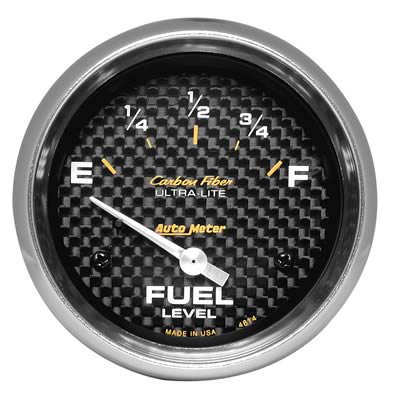

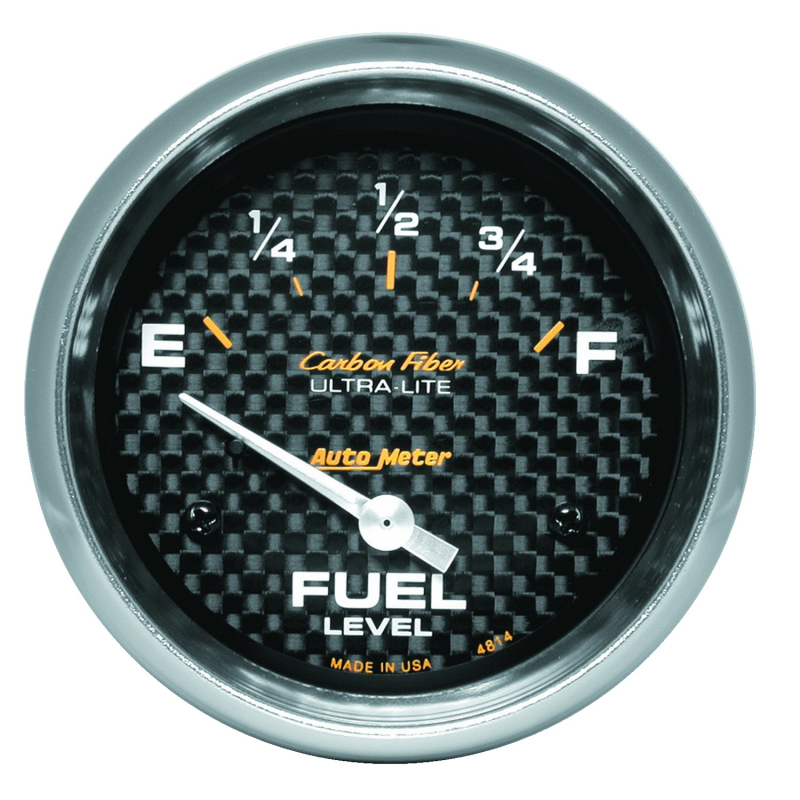

Autometer AP 65+ GM 2-5/8in Fuel Level Carbon Fiber Electric Gauge Pod

SKU: ATM4814

Gauges

AM Carbon Fiber Gauges...

Autometer

Autometer AP 65+ GM 2-5/8in Fuel Level Carbon Fiber Electric Gauge Pod

SKU: ATM4814

Gauges

AM Carbon Fiber Gauges...

LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Part Type

Fuel Level Gauge

Data: v4.2 - Upd: 2026-10-13 14:41:45

Features

12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Traditional incandescent lighting illuminates around the perimeter of the dial
Works with most 1965 to 1997 Chevrolet/GM senders

Specifications

Product Attributes - Brand: AutoMeter
Product Attributes - Manufacturer's Part Number: 4814
Product Attributes - Part Type: Gauges
Product Attributes - Product Line: AutoMeter Carbon Fiber Ultra-Lite Analog Gauges
Product Attributes - UPC: 046074048142
Product Attributes - Gauge Type: Fuel level
Product Attributes - OEM Replacement: No
Product Attributes - Gauge Style: Analog
Product Attributes - Sending Unit: Electrical
Product Attributes - Gauge Diameter (in.): 2 5/8 in.
Product Attributes - Gauge Diameter (mm): 67mm
Product Attributes - Gauge Range: Empty-full
Product Attributes - Gauge Shape: Round
Product Attributes - Sweep: Short sweep
Product Attributes - Gauge Face Color: Carbon fiber
Product Attributes - Gauge Number Color: White
Product Attributes - Pointer Color: Silver
Product Attributes - Bezel Color: Silver
Product Attributes - Illuminated: Yes
Product Attributes - Memory Recall: No
Product Attributes - Playback: No
Product Attributes - Liquid-Filled: No
Product Attributes - Shift Light Included: No
Product Attributes - Tripometer: No
Product Attributes - Sending Unit Included: No
Product Attributes - Sender Ohm Range: 0 ohms empty, 90 ohms full
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Autometer
StreetFX SKU	atm4814
SFX Item ID	4078136
Supplier Item Code	4078136
Manufacturer SKU	4814
Manufacturer UPC	46074048142
Alternative References	AUT4814, 2-5/8in
