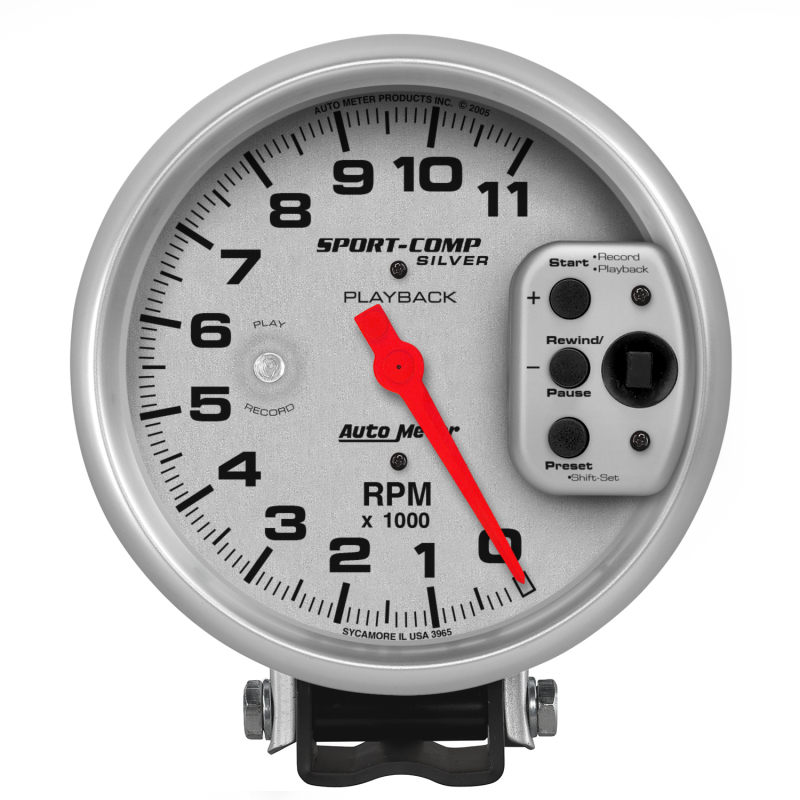

Autometer Ultra-Lite 5in Pedestal Playback Tachometer 0-11000 RPM

SKU: ATM3965

Gauges

AM Ultra-Lite Gauges...

Autometer

Autometer Ultra-Lite 5in Pedestal Playback Tachometer 0-11000 RPM

SKU: ATM3965

Gauges

AM Ultra-Lite Gauges...

IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Since 1957, AutoMeter has set the standard in performance, accuracy and durability with their legendary Tachometers. Built for a lifetime of service under the harshest conditions, this is the no compromise tach for no compromise builds. Record up to 80 seconds of engine RPM data and playback at slow motion speeds to analyze vehicle and driver performance following a run. Identify key performance data such as burnout, launch RPM, tire spin, gear changes and engine speed through the traps to fine tune your setup and trip the win lights.

Part Type

Tachometer Gauge

Data: v4.2 - Upd: 2026-10-13 16:50:20

Features

12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
AutoMeter’s race proven air-core electric tachometers provide quick and accurate readings with a needle so responsive it can go from 0 - full scale in 333 milliseconds
Built in short-shift protection prevents missed shifts due to early shifts by monitoring RPM drop and intelligently determining when a gear change has occurred.
Compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
Green LED recording status lamp provides quick visual indication of tachometer mode to the driver to ensure you never miss a recording.
Optional Launch Lite feature utilizes a Shift Lite connected to the tachometer to help the driver properly stage the vehicle and maintain desired RPM prior to launch in classes.
Optional shift light connector allows for the addition of a variety of options from AutoMeter to improve driver visibility and reaction to desired gear change points.
Playback a complete run of engine RPM data at 1:1 or 1:3 speed
Program up to 4 gear-specific shift light points to maximize your vehicle's performance.
Remote recording trigger lead may be connected to driver accessible push button, trans-brake, line-lock, clutch switch, or foot brake light switch for maximum versatility and ease of use for the driver.
Where launch control electronics are prohibited by utilizing the light to indicate whether you are at, above, or below your desired launch RPM.

Specifications

Product Attributes - Brand: AutoMeter
Product Attributes - Manufacturer's Part Number: 3965
Product Attributes - Part Type: Gauges
Product Attributes - Product Line: AutoMeter Sport-Comp Playback Tachometers
Product Attributes - UPC: 046074039652
Product Attributes - Gauge Type: Tachometer
Product Attributes - OEM Replacement: No
Product Attributes - Gauge Style: Analog
Product Attributes - Sending Unit: Electrical
Product Attributes - Gauge Diameter (in.): 5 in.
Product Attributes - Gauge Diameter (mm): 127mm
Product Attributes - Gauge Range: 0-11,000 rpm
Product Attributes - Gauge Shape: Round
Product Attributes - Sweep: Full sweep
Product Attributes - Gauge Face Color: Silver
Product Attributes - Gauge Number Color: Black
Product Attributes - Pointer Color: Red
Product Attributes - Bezel Color: Silver
Product Attributes - Illuminated: Yes
Product Attributes - Memory Recall: No
Product Attributes - Playback: Yes
Product Attributes - Liquid-Filled: No
Product Attributes - Shift Light Included: No
Product Attributes - Tripometer: No
Product Attributes - Sending Unit Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Autometer
StreetFX SKU	atm3965
SFX Item ID	4077970
Supplier Item Code	4077970
Manufacturer SKU	3965
Manufacturer UPC	46074039652
Alternative References	AUT3965, 5in
