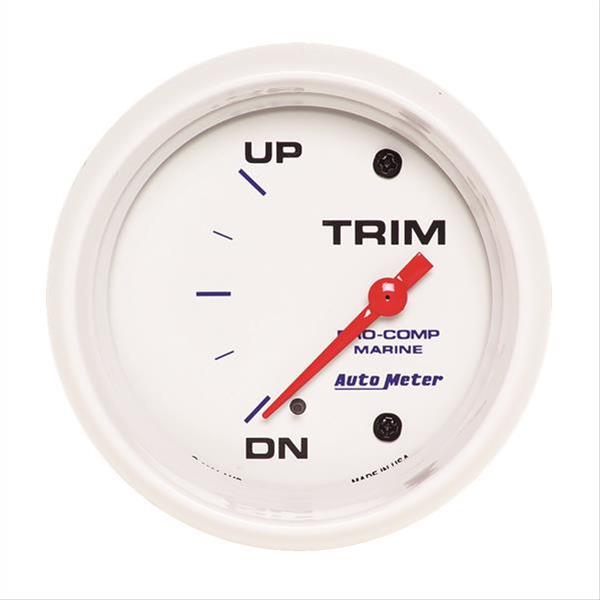

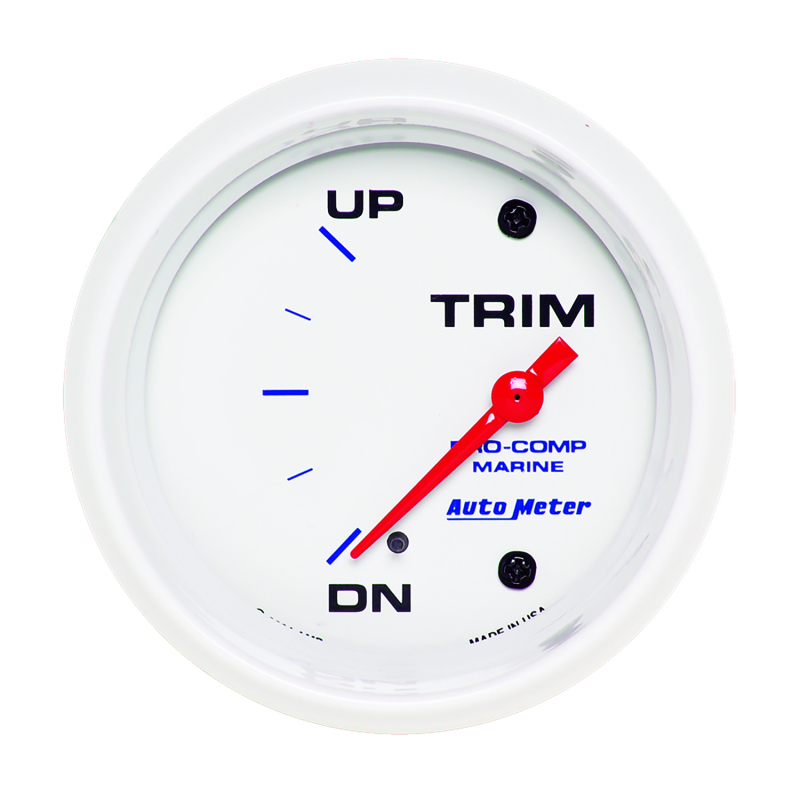

Autometer Marine White Gauge 2-5/8in Electric Trim Level Gauge 0OHM Down - 90OHM Up
Autometer Marine White Gauge 2-5/8in Electric Trim Level Gauge 0OHM Down - 90OHM Up
A$186.08
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The "attitude" of a boat in the water can be controlled to a large extent by "trimming" the outdrive/propeller unit in relation to the stern of the boat. As the drive is trimmed up, the prop exerts more force downward, causing the bow to lift out of the water. As the drive is trimmed down, the force is exerted more in line with the boat hull, resulting in the bow riding lower in the water. Depending on a given trim angle, you can see increased or decreased speed, fuel economy, comfort and control at a given prop RPM. The trim gauge connects to a resistance based sender in the pivot of the outdrive. This functions much like the sender in a gas tank, with the gauge measuring resistance of the sender from totally down/in to totally up/out. This allows the operator to adjust for conditions and load quickly and easily.
Part Type
Gauge Pod
Features
- 12 and 16 volt compatible, well-suited with nearly every marine electrical system
- 12 month limited warranty
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 0 Ohm Down/90 Ohm Up trim level sending unit
Specifications
- Product Attributes - Brand
- Auto Meter Marine
- Product Attributes - Manufacturer's Part Number
- 200767
- Product Attributes - Part Type
- Gauges
- Product Attributes - Product Line
- AutoMeter Pro-Comp Marine Analog Gauges
- Product Attributes - UPC
- 046074118234
- Product Attributes - Gauge Type
- Trim
- Product Attributes - OEM Replacement
- No
- Product Attributes - Gauge Style
- Analog
- Product Attributes - Sending Unit
- Electrical
- Product Attributes - Gauge Diameter (in.)
- 2 5/8 in.
- Product Attributes - Gauge Diameter (mm)
- 67mm
- Product Attributes - Gauge Range
- On/Up
- Product Attributes - Gauge Shape
- Round
- Product Attributes - Sweep
- Short sweep
- Product Attributes - Gauge Face Color
- White
- Product Attributes - Gauge Number Color
- Black
- Product Attributes - Pointer Color
- Red
- Product Attributes - Bezel Color
- White
- Product Attributes - Illuminated
- Yes
- Product Attributes - Memory Recall
- No
- Product Attributes - Playback
- No
- Product Attributes - Liquid-Filled
- No
- Product Attributes - Shift Light Included
- No
- Product Attributes - Tripometer
- No
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Autometer |
|---|---|
| StreetFX SKU | atm200767 |
| SFX Item ID | 4080379 |
| Supplier Item Code | 4080379 |
| Manufacturer SKU | 200767 |
| Manufacturer UPC | 46074118234 |
| Alternative References | AUT200767, 2-5/8in, 0OHM, 90OHM |
