Description

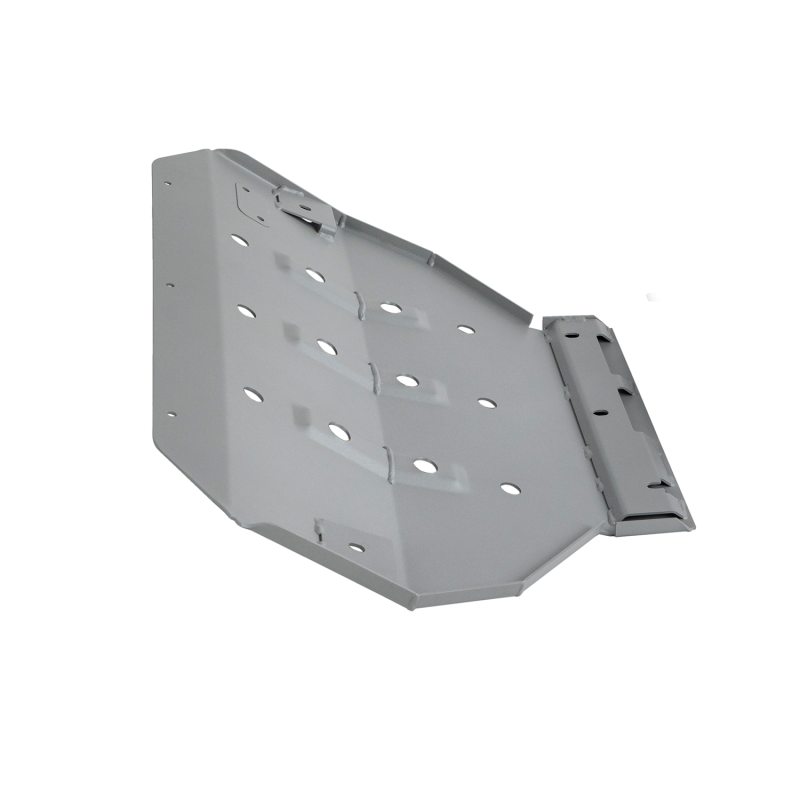

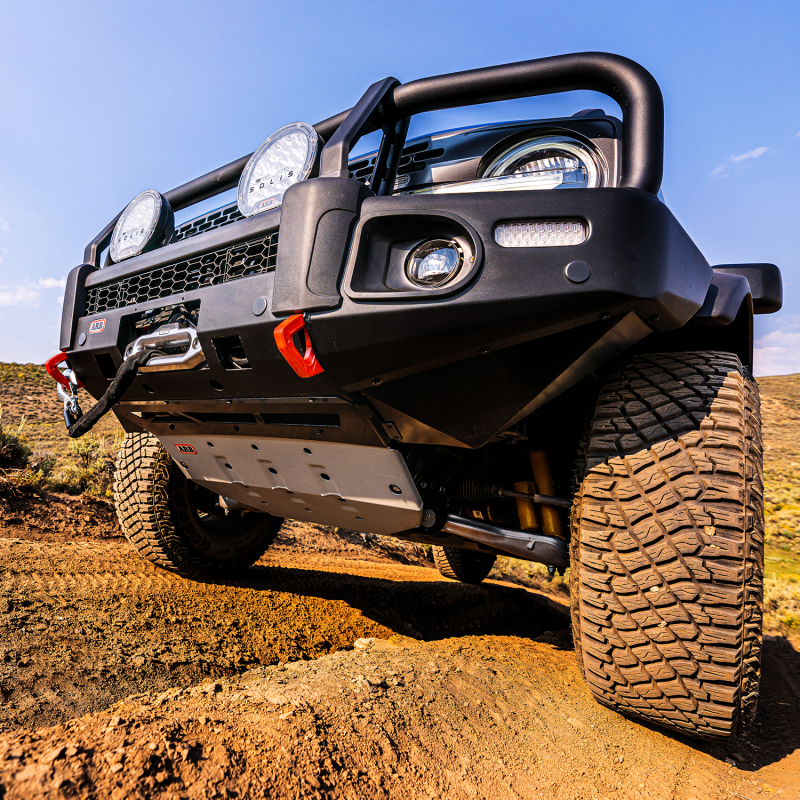

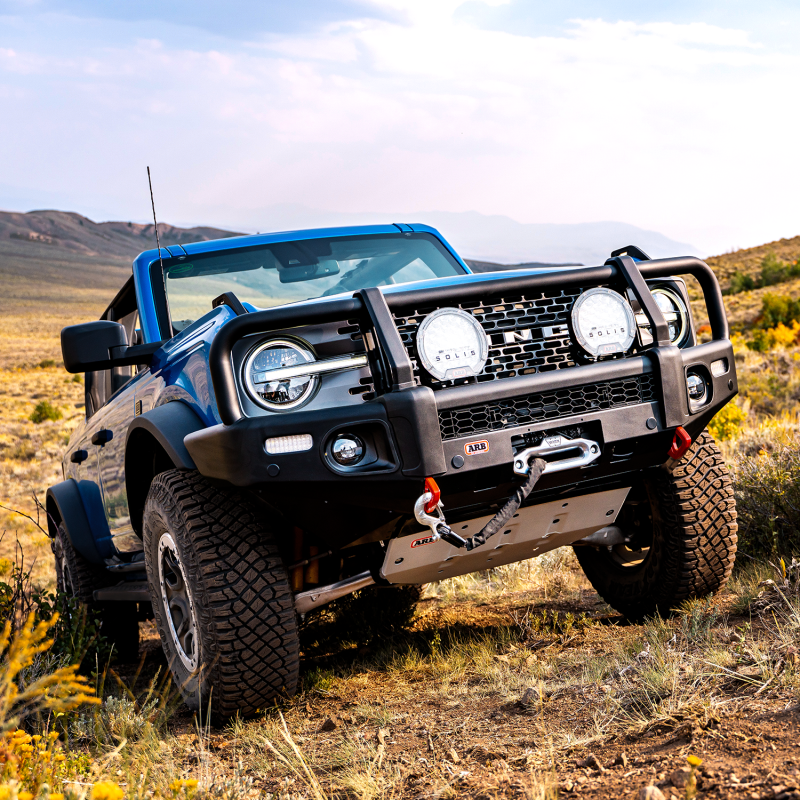

ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. The ARB UVP to suit the Ford Bronco consist of four carefully designed panels. The front, sump and transmission and transfer case panels bolt directly to the chassis to provide continuous under vehicle protection from the front bumper to the rear of the transfer case. Each UVP panel includes a return edge to add strength to the 3mm panel. To retain the strength and protection required of an ARB UVP, full vehicle servicing will require the removal and refit of panels to obtain access to drain plugs and other service points. This provides an opportunity to check for damage and buildup of dirt and foreign matter. Provision is provided to drain engine oil only with removable insert in the second panel. ARB's UVP will fit with or without an ARB front bumper. Fitment has not been confirmed with other bumper designs.
Product Overview
ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. The ARB UVP to suit the Ford Bronco consist of four carefully designed panels. The front, sump and transmission and transfer case panels bolt directly to the chassis to provide continuous under vehicle protection from the front bumper to the rear of the transfer case. Each UVP panel includes a return edge to add strength to the 3mm panel. To retain the strength and protection required of an ARB UVP, full vehicle servicing will require the removal and refit of panels to obtain access to drain plugs and other service points. This provides an opportunity to check for damage and buildup of dirt and foreign matter. Provision is provided to drain engine oil only with removable insert in the second panel. ARB's UVP will fit with or without an ARB front bumper. Fitment has not been confirmed with other bumper designs.
Features and Benefits
- 3mm press-formed, folded sheet steel adds superior strength
- Kit Includes Illustrated Fitting Instructions
- Made from laser cut sheet steel
- Zinc plated and powder coated in a silver textured finish
- Recessed mounting bolts are protected and easy to remove for vehicle servicing
- All steel components are protected with either powder coat or zinc plating
- Four panels to help protect the front engine, front differential, rear engine sump, power steering, stabilizer bar, transmission, and transfer case
Product Details
| Add-On: | N/A |
|---|---|
| Description: | ARB Under Vehicle Protection |
| Part Number: | arb5480100 |
| Prop 65 Yes/No: | No |
| Title: | ARB - 5480100 - Under Vehicle Protection |
| WARNING CA Proposition 65: | No |
Application Summary
2021 Ford Bronco (see Fitment Data tab)
Part Type
Skid Plate
Features
- 3mm press-formed, folded sheet steel adds superior strength
- All steel components are protected with either powder coat or zinc plating
- Four panels to help protect the front engine, front differential, rear engine sump, power steering, stabilizer bar, transmission, and transfer case
- Kit Includes Illustrated Fitting Instructions
- Made from laser cut sheet steel
- Recessed mounting bolts are protected and easy to remove for vehicle servicing
- Zinc plated and powder coated in a silver textured finish
Specifications
- Product Attributes - UPC
- 9332018087157
- Product Attributes - Brand
- ARB
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Skid Plates
- Product Attributes - Product Line
- ARB Skid Plates
- Product Attributes - Skid Plate Style
- Solid
- Product Attributes - Drilling Required
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Skid Plate Finish
- Silver powdercoated
- Product Attributes - Skid Plate Location
- Full chassis
- Product Attributes - Skid Plate Material
- Steel
- Product Attributes - Skid Plate Thickness
- 0.12 in.
- Product Attributes - Skid Plate Attachment
- Bolt-on
- Product Attributes - Manufacturer's Part Number
- 5480100
Reference Information
| Brand Name/s | Arb |
|---|---|
| StreetFX SKU | arb5480100 |
| SFX Item ID | 4384073 |
| Supplier Item Code | 4384073 |
| Manufacturer SKU | 5480100 |
| Manufacturer UPC | 9332018087157 |
Brochures
Compatibility
2021 Ford Bronco (see Fitment Data tab)
