aFe Street Series Deep Engine Oil Pan 11-16 GM Duramax V8-6.6L (td)

SKU: AFE46-70340

Oil Pans

AFE Diff/Trans/Oil Covers...

aFe Street Series Deep Engine Oil Pan 11-16 GM Duramax V8-6.6L (td)

Afe

aFe Street Series Deep Engine Oil Pan 11-16 GM Duramax V8-6.6L (td)

SKU: AFE46-70340

Oil Pans

AFE Diff/Trans/Oil Covers...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

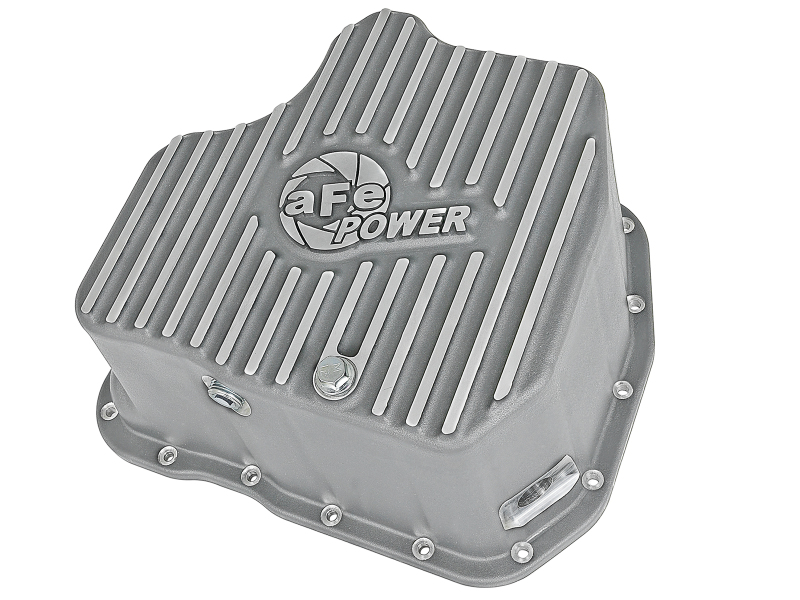

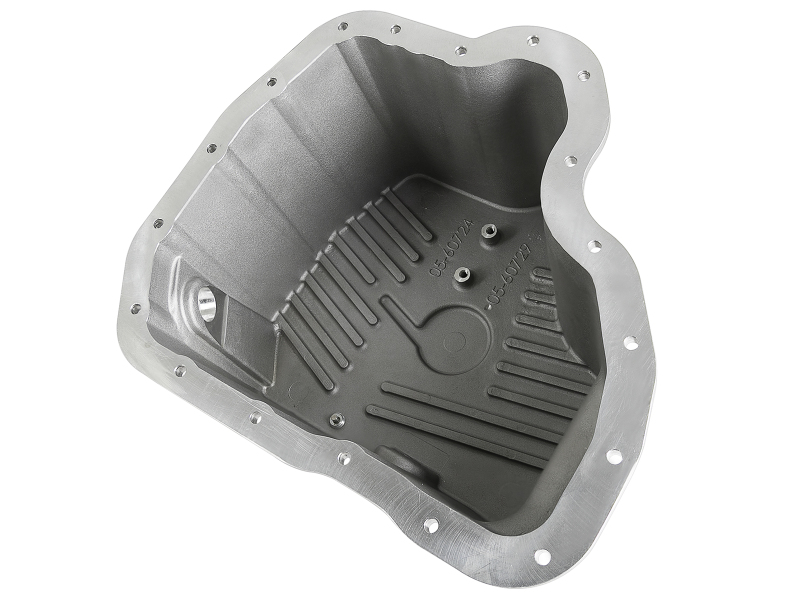

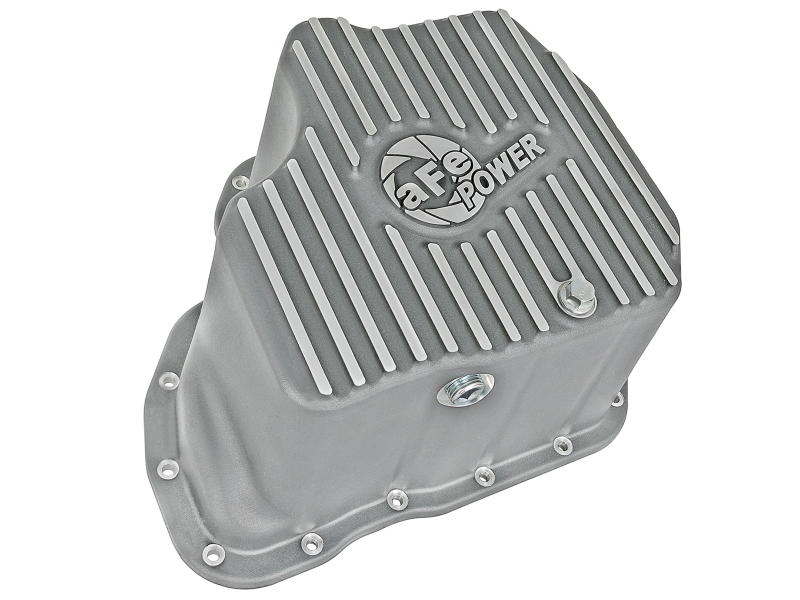

aFe Power's new engine oil pan brings performance engineering to the protection of your GM Silverado/Sierra HD with Duramax turbo diesel engines. This oil pan is constructed out of durable A356 cast aluminum with machined fins for maximum strength and styling. This cover incorporates a magnetic drain plug to capture loose particles for maximum engine protection. All necessary hardware is included for a hassle-free installation. Built-in External and Internal Fins: Built-in External and Internal fins transfer heat from the fluid to the outside air for maximum cooling. Magnetic Drain Plug: This system incorporates a magnetic drain plug that captures loose particles for maximum engine protection. When it comes to engineering for power, performance, protection and value, aFe Power is the only choice.

Product Overview

Features and Benefits

Constructed of Durable A356 Cast Aluminum
Raw Finish w/Machined Fins
Reinforcing Ribs

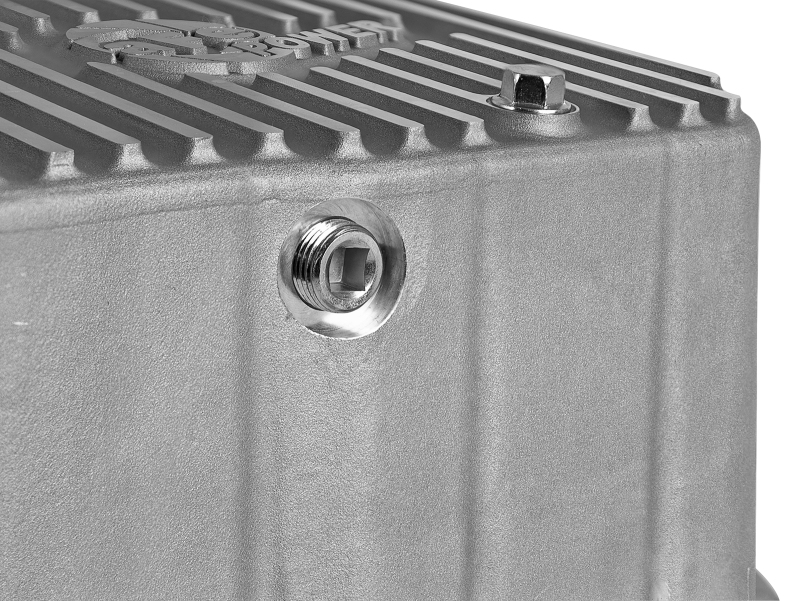

Magnetic Drain Plug Captures Loose Particles
Adds an Additional 2 Quarts Over Stock

Product Details

Baffled:	No
Color:	Raw
Description:	Street Series Engine Oil Pan Raw w/ Machined Fins
Drain Plug Included:	Yes
Drain Thread Size:	M12 X 1.25
Filter Included:	Yes
Finish:	Natural
Gasket Or Seal Included:	Yes
Height:	6.94
Increased Oil Volume:	2
Magnetic Drain Plug:	Yes
Material:	Cast Aluminum
Part Number:	afe46-70340
WARNING CA Proposition 65 Message:	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Application Summary

GM Diesel Trucks 11-16 V8-6.6L (td) LML

Part Type

Available to Order

Data: v4.2 - Upd: 2026-10-13 21:29:03

Features

Adds an Additional 2 Quarts Over Stock
Constructed of Durable A356 Cast Aluminum
Magnetic Drain Plug Captures Loose Particles
Raw Finish w/Machined Fins
Reinforcing Ribs

Specifications

Product Attributes - UPC: 802959464724
Product Attributes - Brand: AFE Power
Product Attributes - Notes: Minimum 6.00 in. lift required. Also includes an oil filter, RTV and a magnetic drain plug.
Product Attributes - Baffled: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Oil Pans
Product Attributes - Kicked Out: No
Product Attributes - Sump Style: Wet
Product Attributes - Product Line: aFe Street Series Engine Oil Pans
Product Attributes - Oil Pan Style: Street/Strip
Product Attributes - Oil Pan Finish: Natural
Product Attributes - Pickup Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Oil Pan Capacity: 12.00 quarts
Product Attributes - Oil Pan Material: Cast aluminum
Product Attributes - Dipstick Included: No
Product Attributes - Hardware Included: Yes
Product Attributes - Oil Pump Included: No
Product Attributes - Dipstick Provision: No
Product Attributes - Stroker Clearanced: No
Product Attributes - Windage Tray Included: No
Product Attributes - Crank Scraper Included: No
Product Attributes - Drain Plug Thread Size: M12 x 1.25
Product Attributes - Manufacturer's Part Number: 46-70340
Product Attributes - Oil Pump Driveshaft Included: No

Reference Information

Brand Name/s	Afe
StreetFX SKU	afe46-70340
SFX Item ID	4370416
Supplier Item Code	4370416
Manufacturer SKU	46-70340
Manufacturer UPC	802959464724
Alternative References	V8-6.6L
