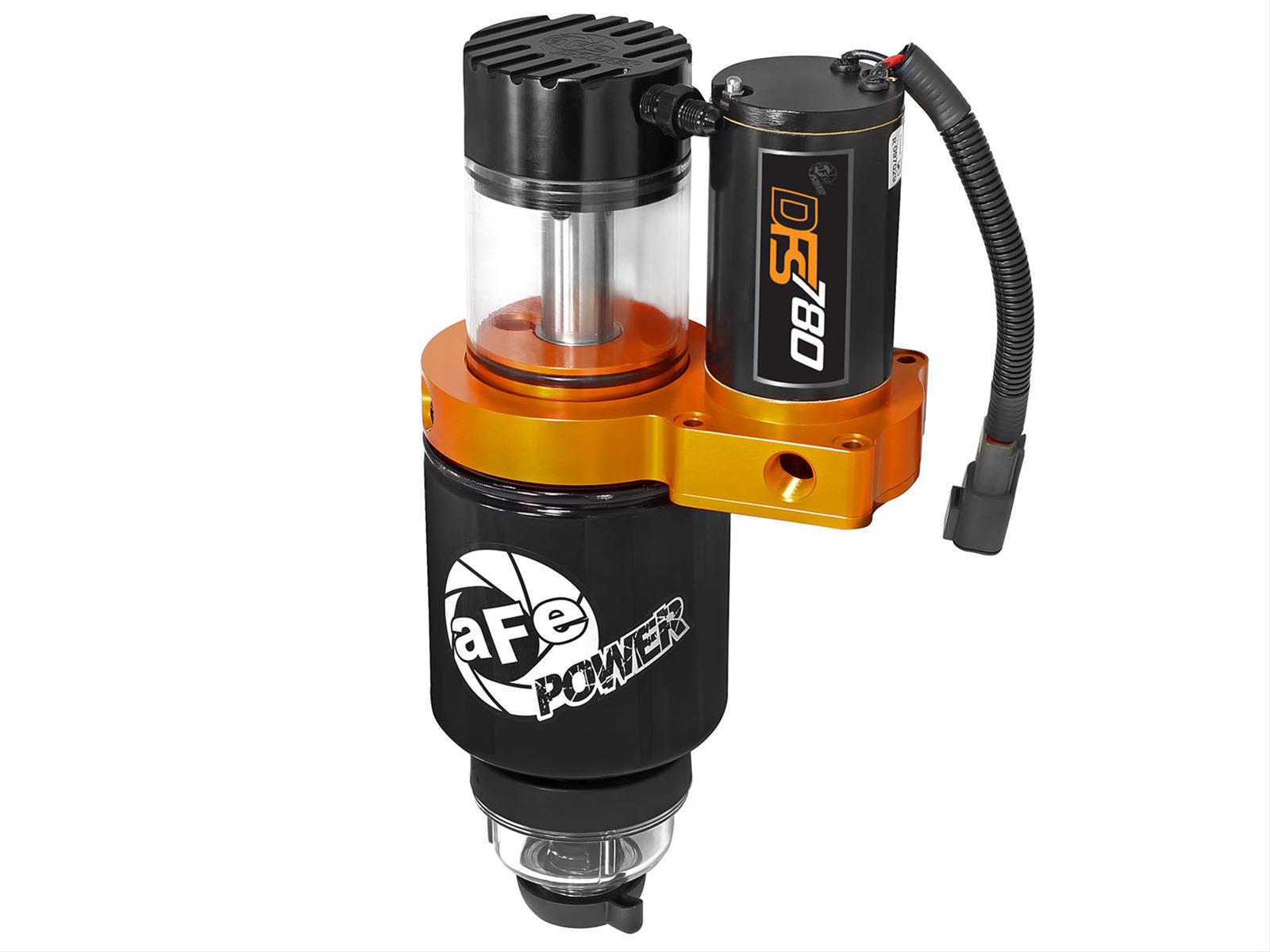

aFe Diesel Fuel Systems DFS780 Series 99-03 Ford Diesel 7.3L V8 (Full Time Operation)

SKU: AFE42-13011

Fuel Pumps

AFE DFS780 Full Time...

aFe Diesel Fuel Systems DFS780 Series 99-03 Ford Diesel 7.3L V8 (Full Time Operation)

Afe

aFe Diesel Fuel Systems DFS780 Series 99-03 Ford Diesel 7.3L V8 (Full Time Operation)

SKU: AFE42-13011

Fuel Pumps

AFE DFS780 Full Time...

Limited Availability from MFR Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.

We accept

Description

The diesel fuel in your truck contains contaminants dirt, water and air/vapor which is reducing power and damaging your diesel fuel injectors. aFe's POWER DFS780 Diesel Fuel System, with its patent-pending design, is capable of removing power-robbing debris such as air, water and other contaminants. The DFS780 also boosts fuel pressure ensuring constant availability for the high-pressure pump, improving throttle response and horsepower at all RPMs.

Product Overview

*Built-in Bypass For Stock Fuel System:* Allows vehicle to run on stock fuel pump under light loads, reducing wear & tear on both the DFS780 and the stock high-pressure pump. *Clear High-Impact Polycarbonate Sight Glass:* Allows visual inspection of fuel. *Helical Bronze Spur Gears:* Bronze gears more forgiving of contaminants than steel gears. The Helical spur gear design runs quieter than straight cut gears. *Billet 6061-T6 Aluminum Manifold:* Eliminates porosity concerns with cast aluminum. *"Marine Grade" Motor:* Protected against dust intrusion and powerful water jets. *Plug & Play Installation:* Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required. Vehicle can easily be returned to stock. *Boost Activated Pump Engagement:* Supplied preset boost switch activates pump only under load, reducing wear & tear on both the DFS780 and the stock lift pump. *PEEK Bearing Wear Surfaces:* The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear. *Contoured CNC Machining Of Manifold Passages:* Enhances flow through the manifold to reduce pressure drop due to flow restrictions. *Direct Bolt-on Steel Mounting Bracket:* Heavy duty bracket mounts to the frame and utilizes existing hole to secure. *Fuel Pressure Gauge Port:* 1/8” NPT port allows customer to attach an external pressure gauge to monitor fuel pressure. *O.E Quality Viton Seals:* Compatible with diesel and biodiesel fuels. Note: This system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicle.

Features and Benefits

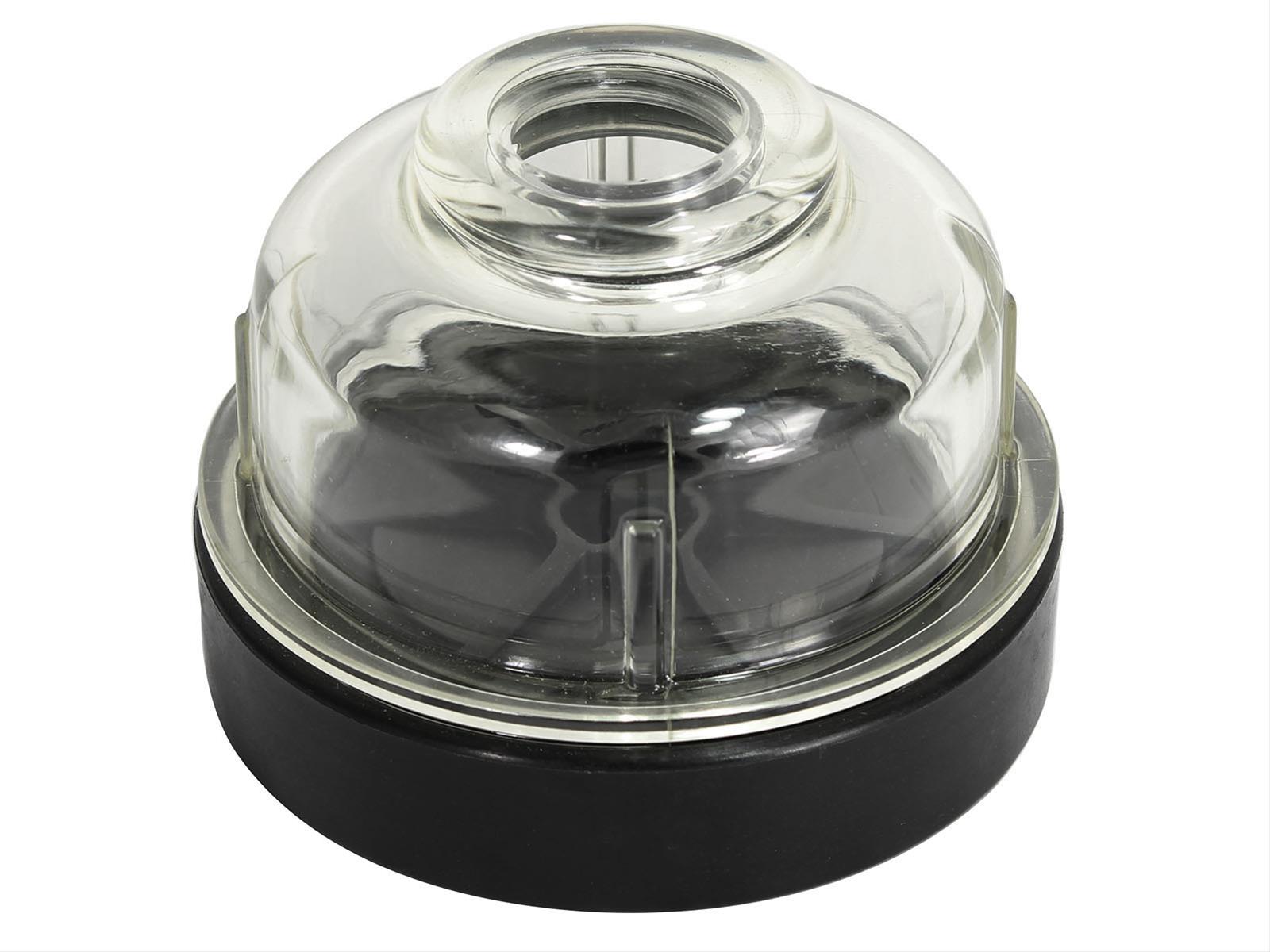

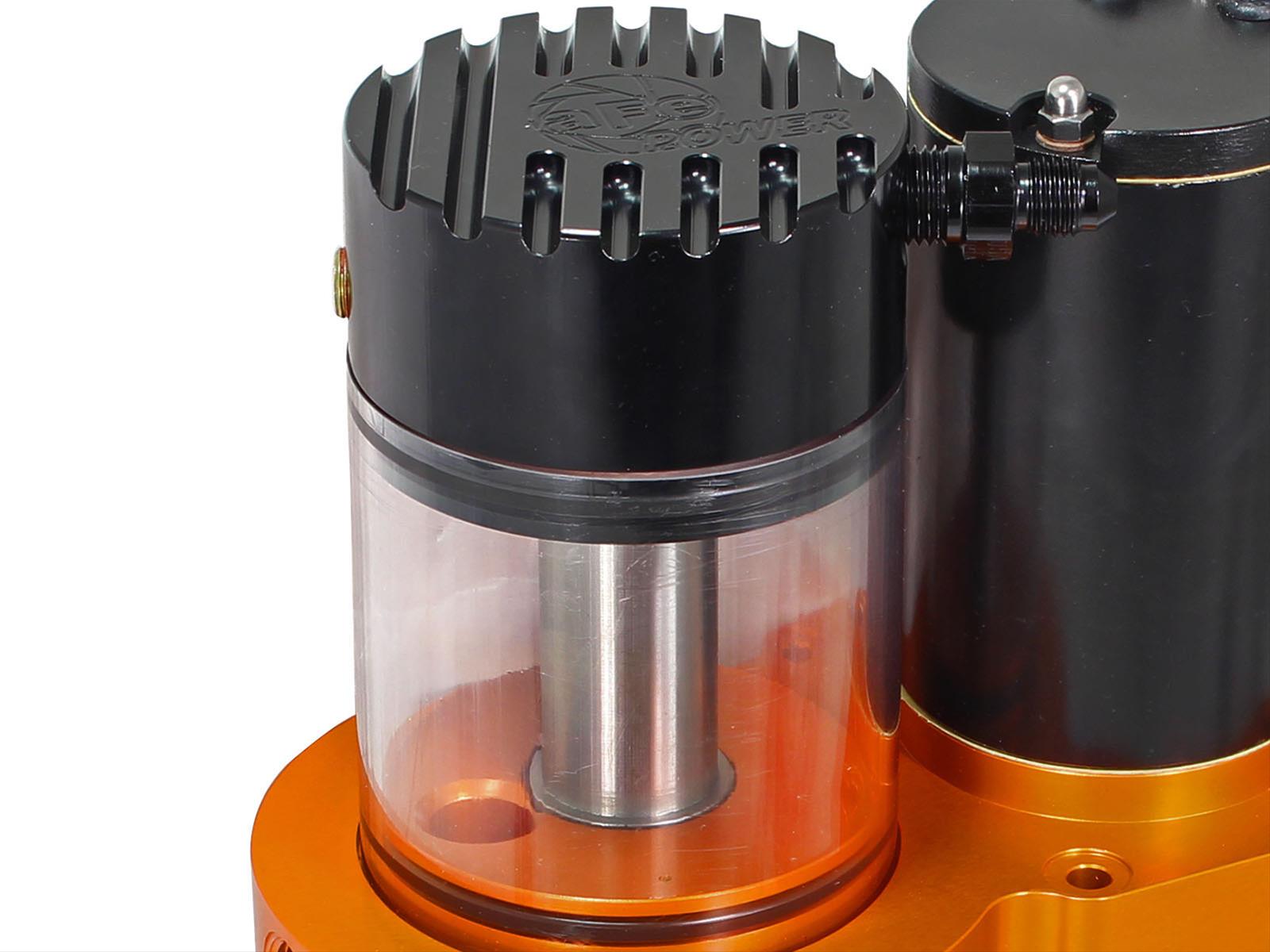

Clear High Impact Polycarbonate Sight Glass

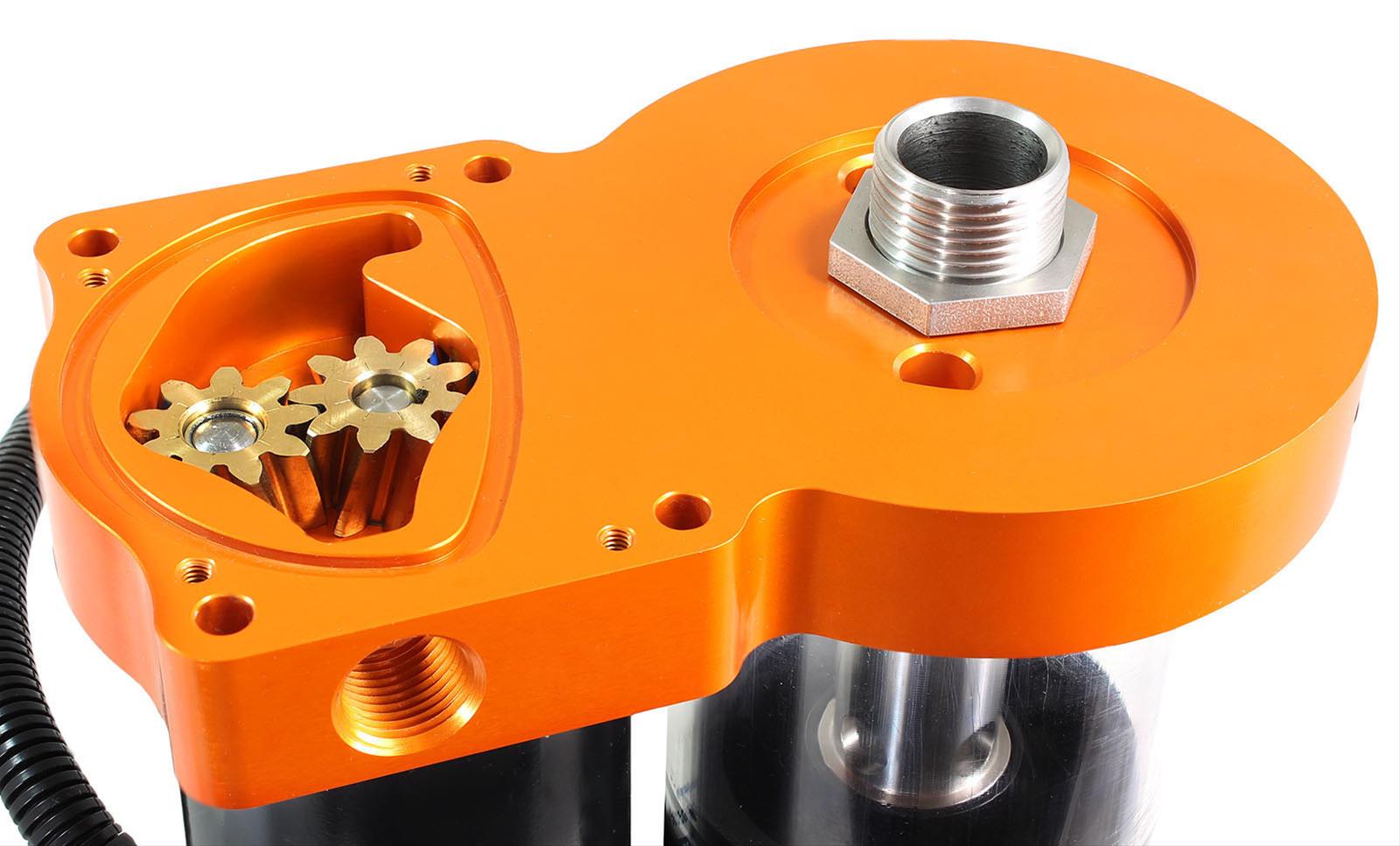

Helical Spur Gears Runs Quieter That Straight Cut Gears
Marine Grade Motor Protects Against Dust And Water
Contoured CNC Manifold Enhances Flow
Fuel Pressure Gauge Port
OE Quality Viton Seals
Typical Install Is 2 Hours
Built In The U.S.A.

Product Details

Color:	Black & Orange
Compatible Fuel Type:	Diesel
Description:	DFS780 Fuel Pump (Full-time Operation)

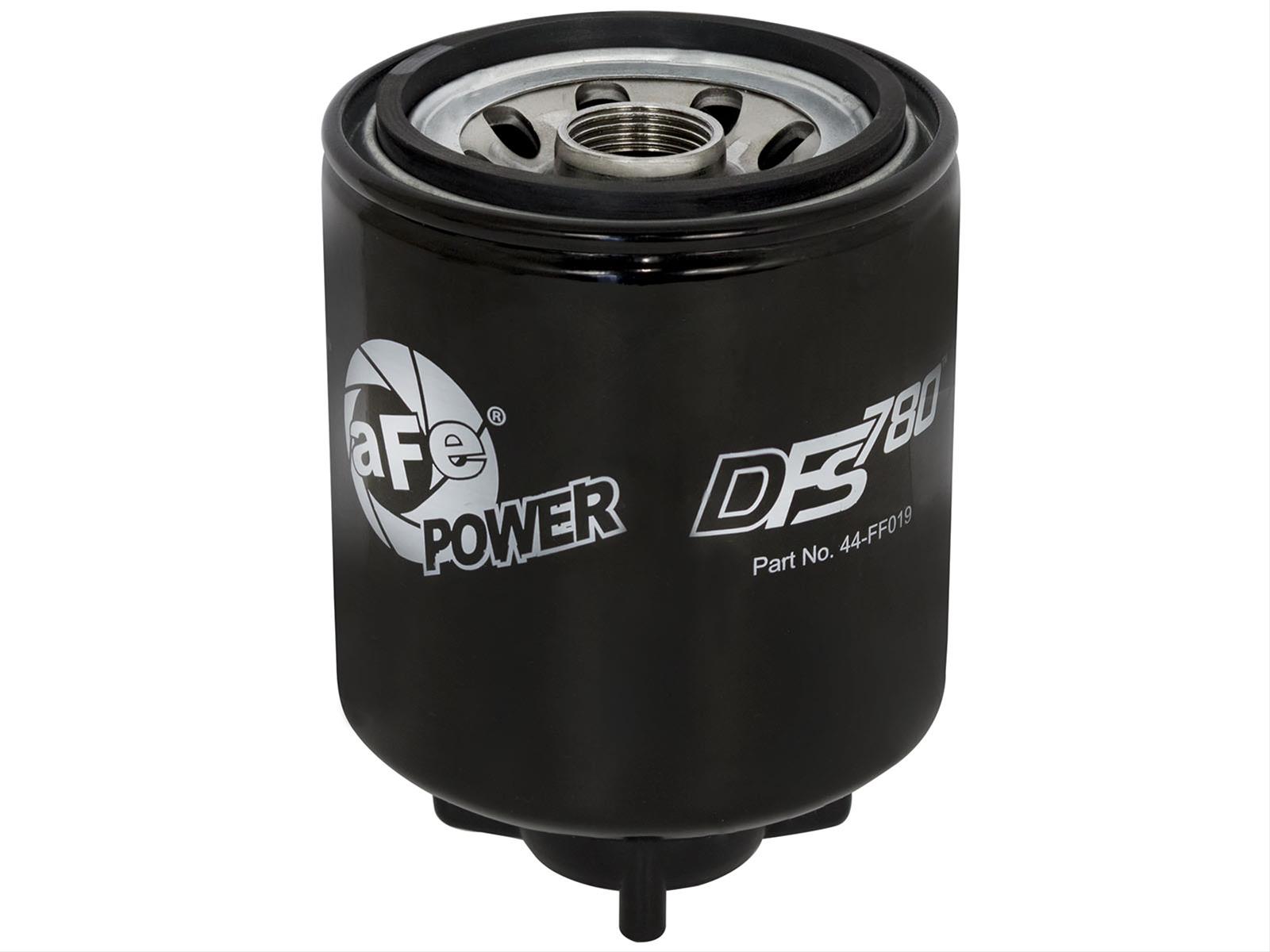

Filter Included:	Yes
Finish:	Anodized
Flow Rate:	187
In Tank or External:	External
Material:	6061-T6 Aluminum
Operation:	Full Time
Part Number:	afe42-13011
Pressure Rating:	8-10
Pump Type:	Electric
Voltage:	12V
WARNING CA Proposition 65 Message:	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:	Yes
Water Separator Included:	Yes

Application Summary

Ford Diesel Trucks 99-03 V8-7.3L (td)

Part Type

Available to Order

Data: v4.2 - Upd: 2026-10-13 21:25:47

Features

Built In The U.S.A.
Clear High Impact Polycarbonate Sight Glass
Contoured CNC Manifold Enhances Flow
Fuel Pressure Gauge Port
Helical Spur Gears Runs Quieter That Straight Cut Gears
Marine Grade Motor Protects Against Dust And Water
OE Quality Viton Seals
Typical Install Is 2 Hours

Specifications

Product Attributes - Brand: AFE Power
Product Attributes - Manufacturer's Part Number: 42-13011
Product Attributes - Part Type: Fuel Pumps
Product Attributes - Product Line: aFe DFS 780 Fuel Pumps
Product Attributes - UPC: 802959420058
Product Attributes - Fuel Pump Type: Electric external
Product Attributes - Fuel Pump Voltage: 12 V
Product Attributes - Fuel Pressure Regulator Included: No
Product Attributes - Sending Unit Included: No
Product Attributes - Diesel Fuel Pump Style: Lift
Product Attributes - Gasket Included: No
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Mounting Bracket Included: Yes
Product Attributes - Mounting Hardware Included: Yes
Product Attributes - Pulley Included: No
Product Attributes - Remanufactured: No

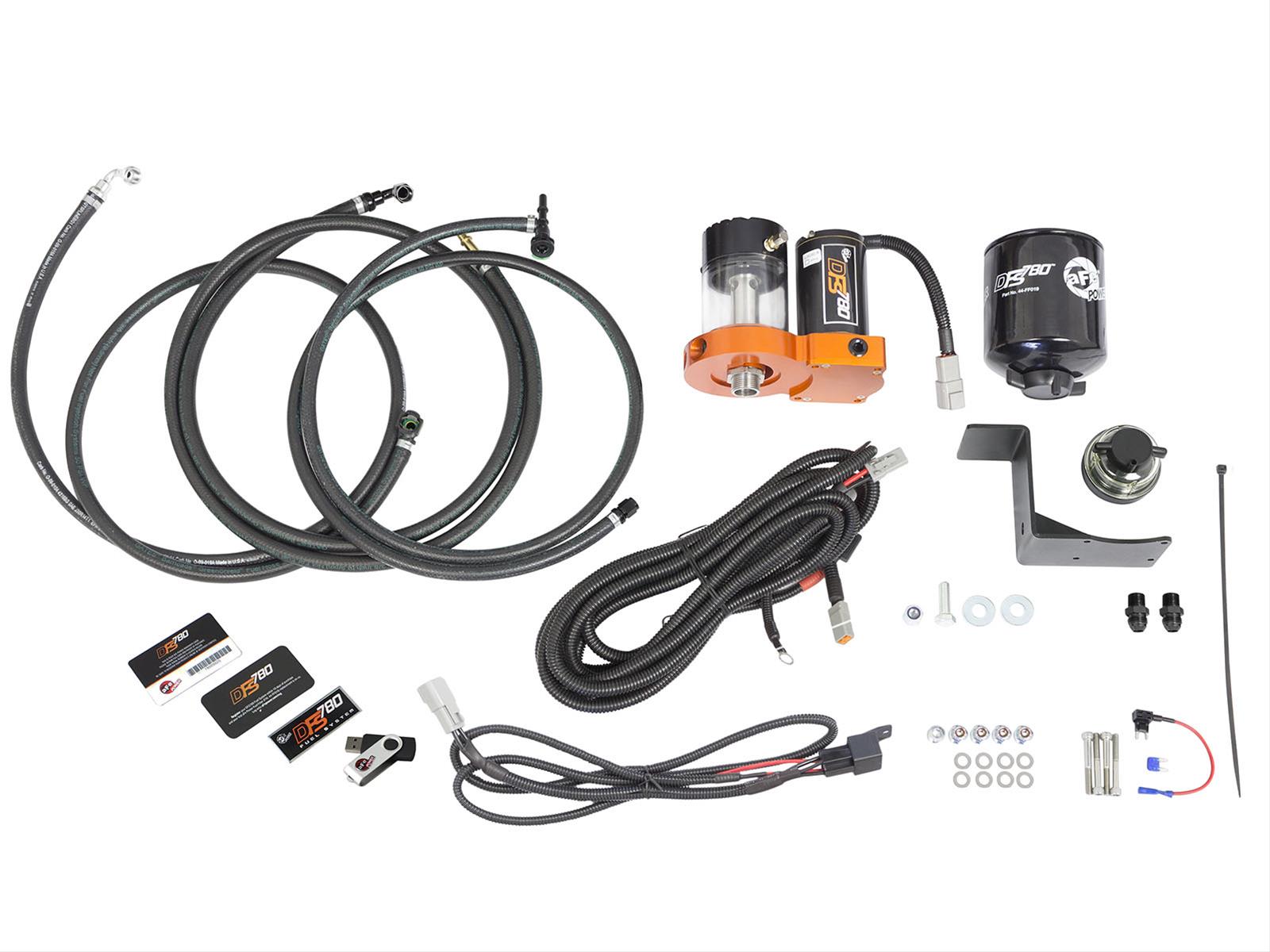

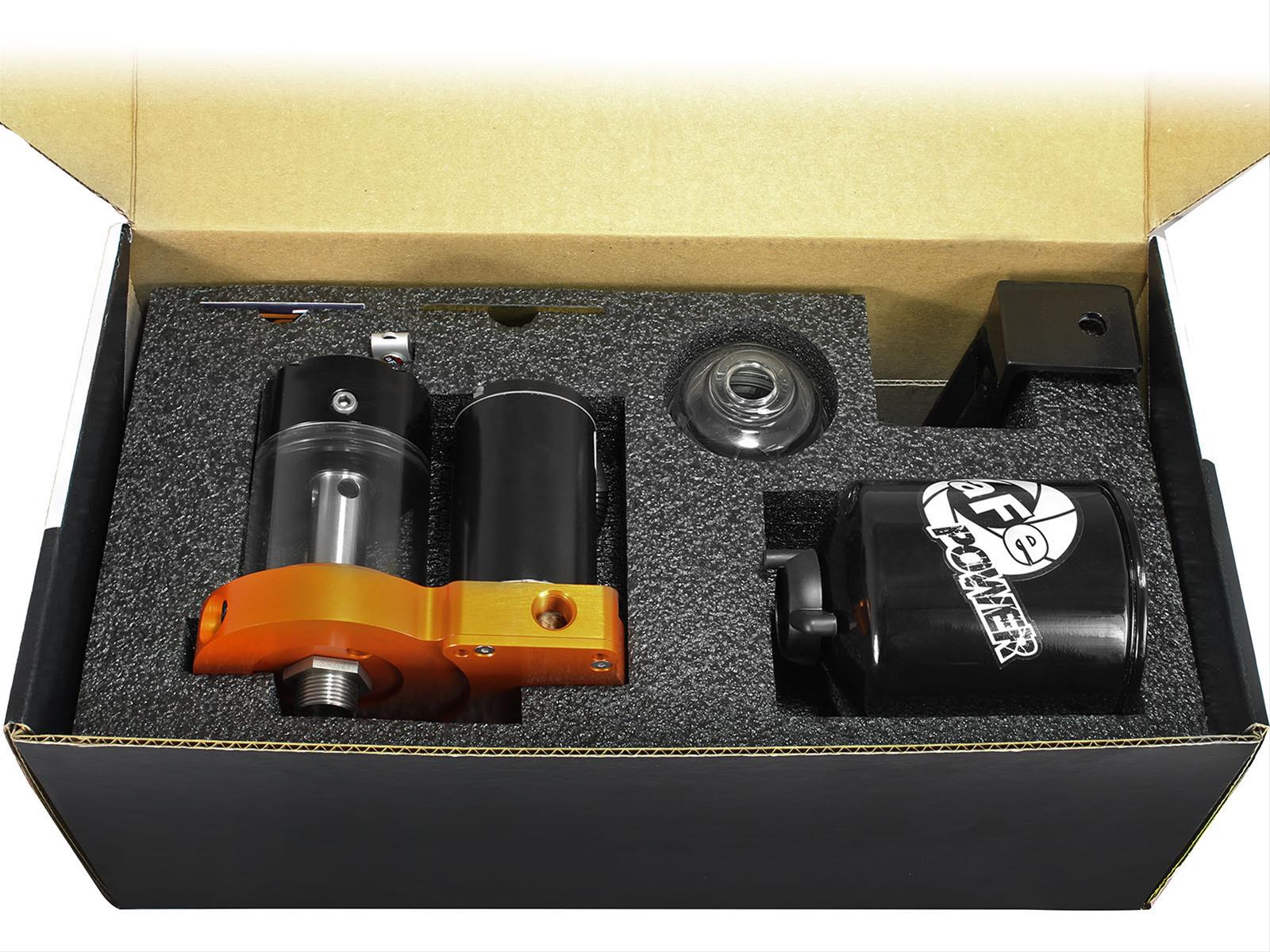

Product Attributes - Quantity: Sold as a kit.
Product Attributes - CARB EO Number(s): D-550-34
Product Attributes - Emissions: California EO Approved

Reference Information

Brand Name/s	Afe
StreetFX SKU	afe42-13011
SFX Item ID	4373405
Supplier Item Code	4373405
Manufacturer SKU	42-13011
Manufacturer UPC	802959420058
Alternative References	dfs780, 7.3L
