aFe Power Transmission Pan Black Machined 09-14 Ford 6R80 F-150 Trucks

SKU: AFE46-70172

Automatic Transmission Pans

AFE Diff/Trans/Oil Covers...

aFe Power Transmission Pan Black Machined 09-14 Ford 6R80 F-150 Trucks

Afe

aFe Power Transmission Pan Black Machined 09-14 Ford 6R80 F-150 Trucks

SKU: AFE46-70172

Automatic Transmission Pans

AFE Diff/Trans/Oil Covers...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

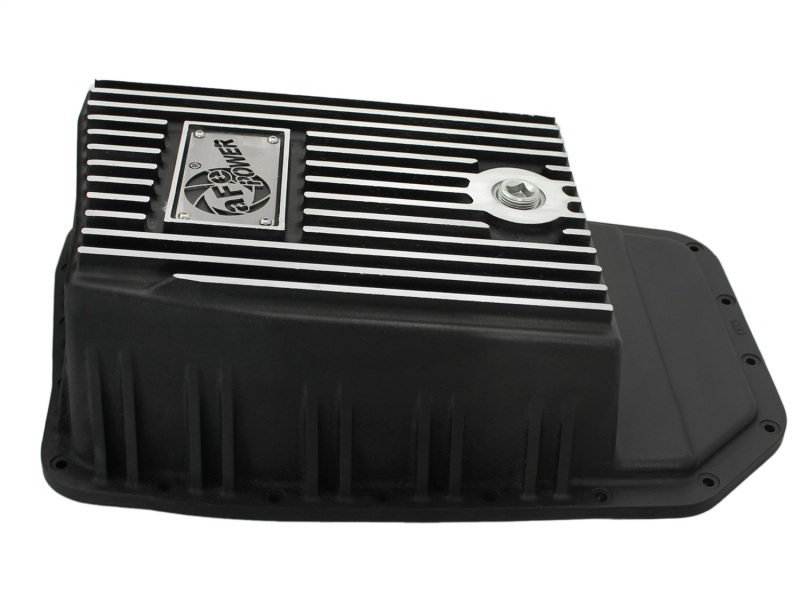

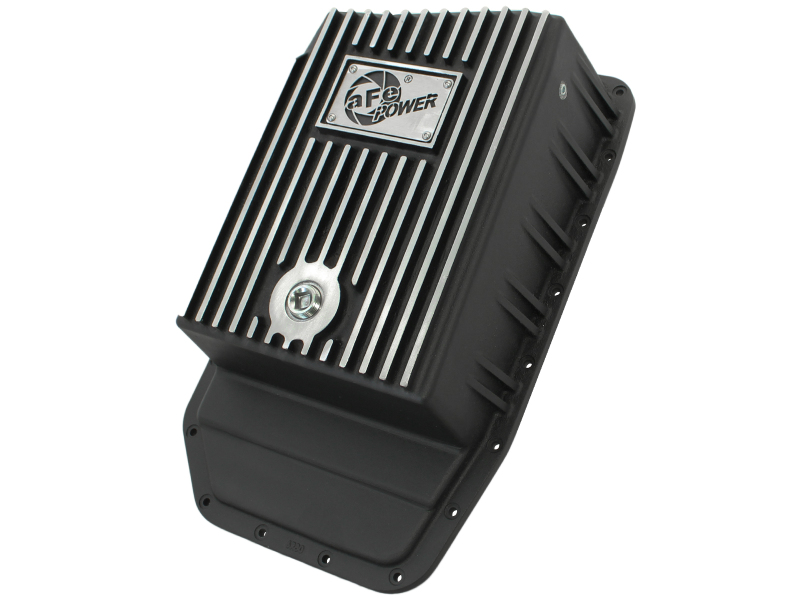

aFe Power's new deep transmission pan brings performance engineering to the protection of your 2009 to 2014 Ford truck's 6R80 transmission. aFe's transmission pan adds an additional 7 quarts over stock. Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. This transmission pan is constructed out of durable A380 aluminum with reinforced ribs for maximum strength. This pan also features a black, powder-coated finish with machined fins for protection and styling.

Product Overview

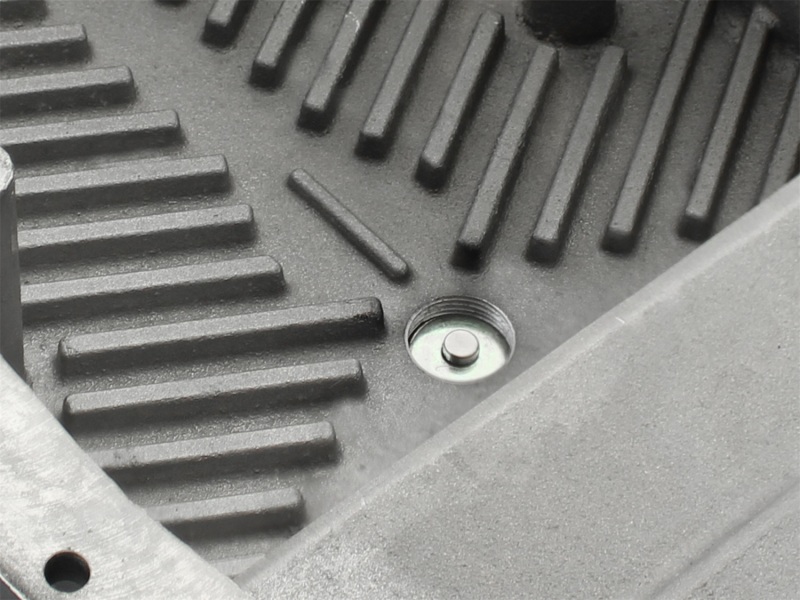

aFe Power's new deep transmission pan brings performance engineering to the protection of your transmission. aFe's transmission pan adds additional oil capacity over stock. Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. Constructed out of durable A380 aluminum with reinforced ribs for maximum strength. This pan also features a black, powder-coated finish with machined fins for protection and styling. Internal and External Fins: Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. Magnetic Drain Plug: This system incorporates a large neodymium magnetic drain plug that captures loose particles for maximum transmission protection and can be tightened using a 1/2" square socket drive. 1/8" NPT Port: Threaded 1/8" NPT port comes ready to use for your transmission temperature sensor. Hassle-Free Installation: Transmission pan comes complete with all necessary hardware to bolt directly to factory location for a hassle-free installation. Compatible with stock filter and able to reuse stock factory gasket. When it comes to engineering for power, performance, protection and value, aFe Power is the only choice

Features and Benefits

0.125 in. NPT Port
Magnetic Drain Plug
Compatible w/Stock Filter
7 Quarts Over Stock
Hassle Free Installation
Internal And External fins
Reuses Factory Gasket
Retains Factory Magnet

Product Details

Description:	aFe POWER Pro Series Transmission Pan Black w/ Machined Fins
Material:	Cast Aluminum
Part Number:	afe46-70172
Trans Model:	Ford- 6R80 (Auto)6 Speed
WARNING CA Proposition 65 Message:	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Application Summary

Ford F-150 Trucks 09-20 (6R80 Transmission)

Part Type

Auto Trans Oil Pan

Data: v4.2 - Upd: 2026-10-13 21:26:08

Features

0.125 in. NPT Port
7 Quarts Over Stock
Compatible w/Stock Filter
Hassle Free Installation
Internal And External fins
Magnetic Drain Plug
Retains Factory Magnet
Reuses Factory Gasket

Specifications

Product Attributes - UPC: 802959461594
Product Attributes - Brand: AFE Power
Product Attributes - Notes: Machined fins and logo.
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Automatic Transmission Pans
Product Attributes - Product Line: aFe Automatic Transmission Pans
Product Attributes - Filter Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Capacity Increase: 7.0 qt.
Product Attributes - Drain Plug Included: Yes
Product Attributes - Bolts/Studs Included: No
Product Attributes - Transmission Pan Style: Deep
Product Attributes - Transmission Pan Finish: Black powdercoated
Product Attributes - Filter Extension Included: No
Product Attributes - Transmission Pan Material: Aluminum
Product Attributes - Manufacturer's Part Number: 46-70172
Product Attributes - Temperature Sender Bung Included: Yes

Reference Information

Brand Name/s	Afe
StreetFX SKU	afe46-70172
SFX Item ID	4372913
Supplier Item Code	4372913
Manufacturer SKU	46-70172
Manufacturer UPC	802959461594
Alternative References	6r80, F-150
