AEM VCU Universal LV Rear Harness

SKU: AEM30-8601

Wiring Harnesses

AEM Wiring Harnesses...

Sale ends in Calculating... Wed 14 Oct, 2:05 am AEST

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

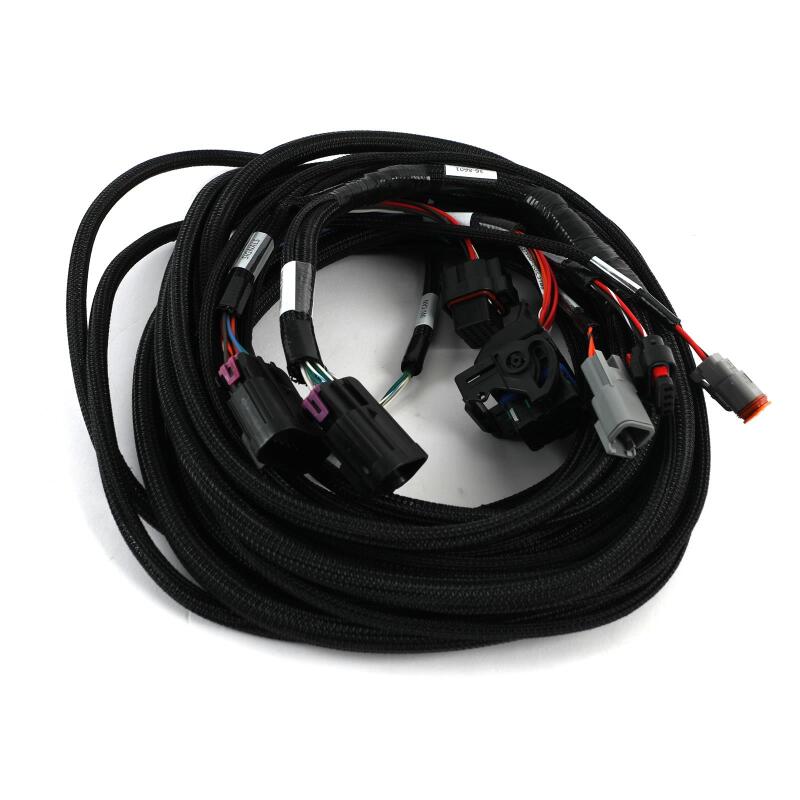

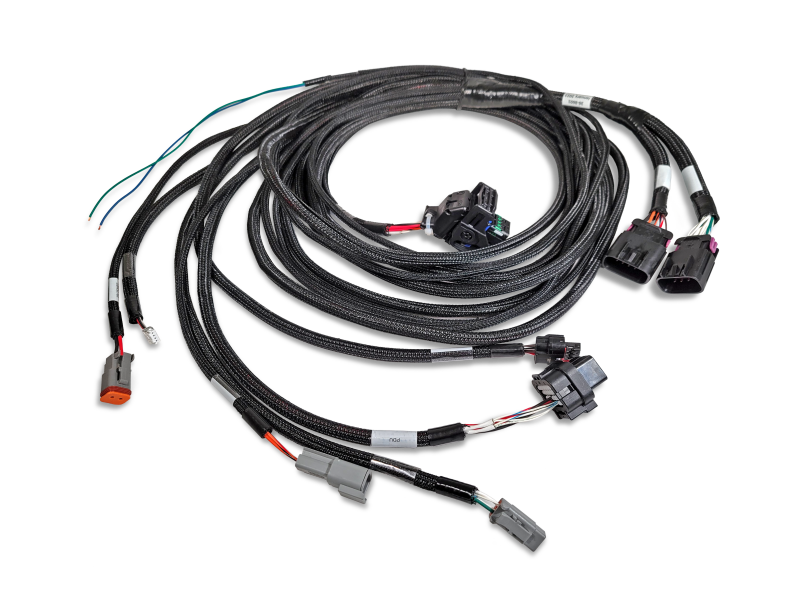

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.

Part Type

Wiring Harnesses

Data: v4.2 - Upd: 2026-10-13 18:39:00

Features

Combined Charging Unit (CCU)
Connector interface features include:
Inline CAN
Inline Signals
Inverter CAN (INV CAN)
Inverter High-Voltage Interlock (HVIL)
Inverter Power (INV PWR)
Isabellenhutte (IVTS) - current voltage shunt based measuring system
J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
Power Distribution Unit (PDU)

Specifications

Product Attributes - Brand: AEM Electronics
Product Attributes - Manufacturer's Part Number: 30-8601
Product Attributes - Part Type: Wiring Harnesses
Product Attributes - Product Line: AEM Electronics VCU 200 Low-Voltage Harnesses
Product Attributes - UPC: 810065217134
Product Attributes - Harness Length: Standard
Product Attributes - Fuse Block Included: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Rear harness

Reference Information

Brand Name/s	Aem
StreetFX SKU	aem30-8601
SFX Item ID	5532046
Supplier Item Code	5532046
Manufacturer SKU	30-8601
Manufacturer UPC	810065217134
Alternative References	AEI30-8601, AVM-30-8601
