AEM CD-7L Carbon Logging Flush Digital Dash Display
AEM CD-7L Carbon Logging Flush Digital Dash Display
Sale ends in Calculating...
A$3,386.08
A$4,380.41
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

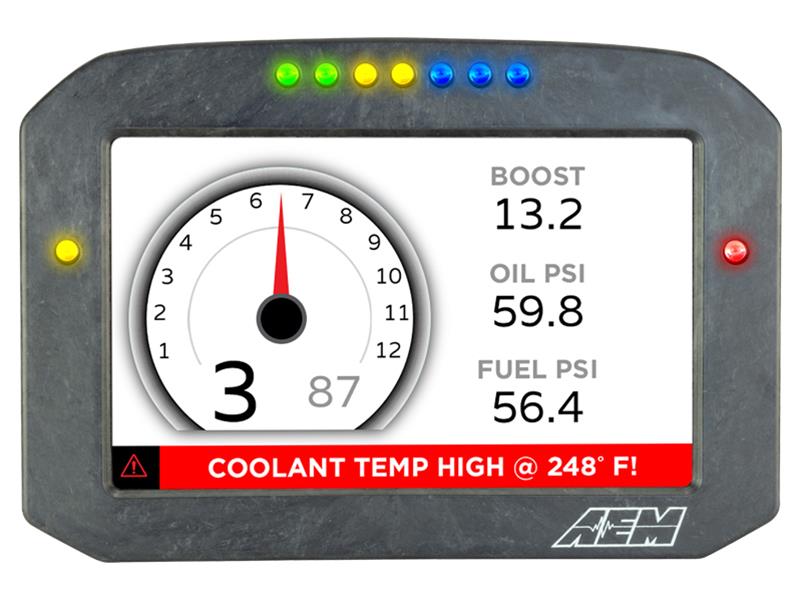

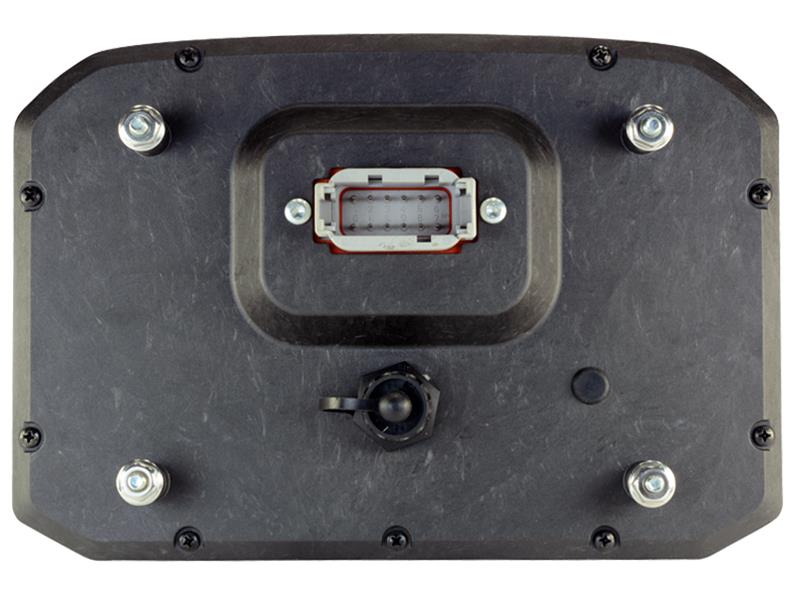

AEM CD7 Carbon Digital Flat Panel Displays have a compact enclosure that makes them perfect for flush mount installation or in-dash installations with tight tolerances. They include all of the robust features found in the original CD-7 Carbon Dash, but do not have buttons or an LED shade hood built into the enclosure.
Part Type
Information Display Module
Features
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
- Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- Available with or without onboard 20 Hz GPS receiver and antenna
- Convert CAN bus channel values to user-defined text
- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- Free DashDesign Graphics Editor software
- Full color 7" screen with 800x480 resolution
- Headlight-in' connection dims the dash and LEDs during night operation
- Install 8 additional temp inputs and send them to the CD-7 Carbon with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
- Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
- IP66 water resistance - open cockpit safe
- Layout files interchangeable between all CD Carbon Dashes
- Odometer function
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
- Two programmable LEDs
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- Use the included page layouts and input your channels and text, or create your own from scratch
- User supplied graphics can be changed based on channel values (up to the full screen size)
- Wiring interface/harnesses are identical between all CD Carbon Dashes
Specifications
- Product Attributes - Brand
- AEM Electronics
- Product Attributes - Manufacturer's Part Number
- 30-5701F
- Product Attributes - Part Type
- Data Acquisition Kits and Displays
- Product Attributes - Product Line
- AEM Electronics CD-7 Digital Racing Dash Displays
- Product Attributes - UPC
- 840879026455
- Product Attributes - Display Included
- Yes
- Product Attributes - Display Type
- LED
- Product Attributes - Display Customizable
- Yes
- Product Attributes - Display Housing Material
- Carbon fiber composite
- Product Attributes - Display Housing Color
- Natural
- Product Attributes - Data Logger
- No
- Product Attributes - Memory Style
- Internal
- Product Attributes - Internal Memory Size
- 200 MB
- Product Attributes - Memory Card Included
- No
- Product Attributes - OBD II Compatible
- Yes
- Product Attributes - WiFi Compatible
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Wiring Harness Terminated
- Yes
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- OBDII CAN adapter cable sold separately.
Reference Information
| Brand Name/s | Aem |
|---|---|
| StreetFX SKU | aem30-5701F |
| SFX Item ID | 5531945 |
| Supplier Item Code | 5531945 |
| Manufacturer SKU | 30-5701F |
| Manufacturer UPC | 840879026455 |
| Alternative References | AEI30-5701F, AVM-30-5701F, CD-7L |
