Digital Dash - CD-7LG Carbon - DTM Style - Connectors Included - GPS / Logging Display - Black - Each

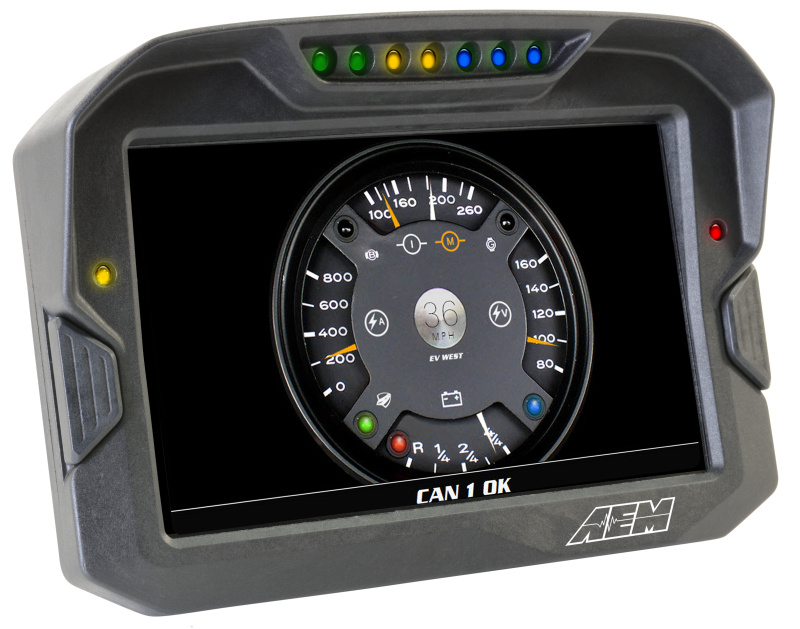

CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.

Additional Information

Digital Dash Display, CD-7LG logging, GPS enabled racing dash, CAN input only, 7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included (Does NOT Include Vehicle Dynamics Module)

Part Type

Information Display Module

Features and Benefits

• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Accepts channels from two separate user programmable CAN bus connections
• Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
• Convert CAN bus channel values to user-defined text in multiple languages
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Free DashDesign Graphics Editor software

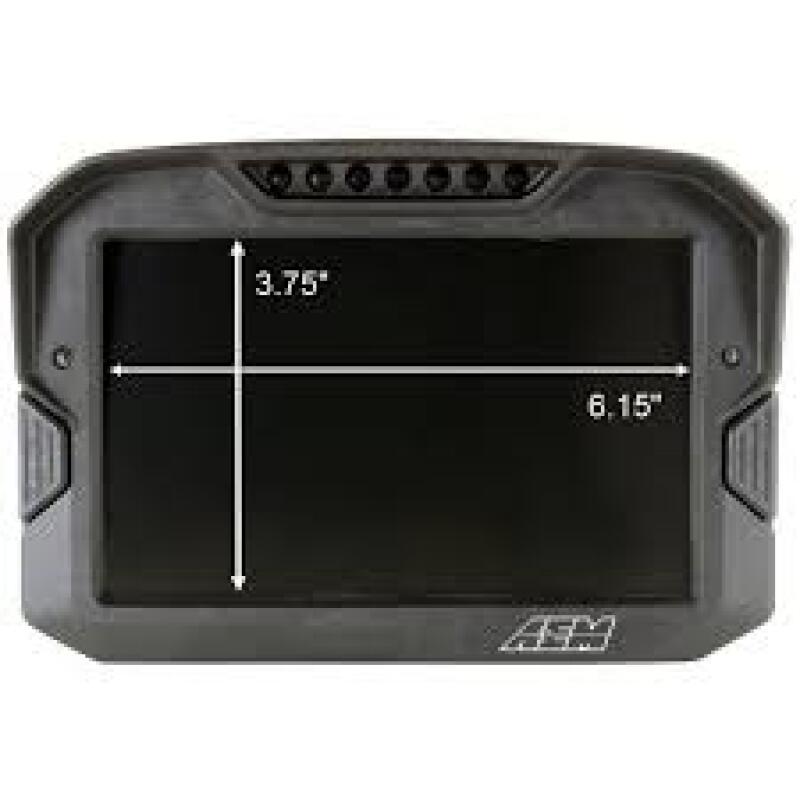

• Full color 7" screen with 800x480 resolution
• Headlight-in' connection dims the dash and LEDs during night operation
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• IP65 water resistance - open cockpit, marine and motorcycle safe
• Layout files interchangeable with all versions of the CD-5 Carbon
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Total display weight of 20.9 oz. / 595 grams
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Two programmable LEDs
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use included page layouts and input your channels and text, or create your own from scratch
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Wiring interface/harness is identical to the CD-5 Carbon

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Accepts channels from two separate user programmable CAN bus connections
• Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
• Convert CAN bus channel values to user-defined text in multiple languages
• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Free DashDesign Graphics Editor software
• Full color 7" screen with 800x480 resolution
• Headlight-in' connection dims the dash and LEDs during night operation
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• IP65 water resistance - open cockpit, marine and motorcycle safe
• Layout files interchangeable with all versions of the CD-5 Carbon
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Total display weight of 20.9 oz. / 595 grams
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Two programmable LEDs
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use included page layouts and input your channels and text, or create your own from scratch
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Wiring interface/harness is identical to the CD-5 Carbon

AEM Electronics CD-7 digital racing dash displays feature 7 in. full-color digital screens that are super bright, high contrast, and with sunlight-readable displays. To ensure visibility at all times, they also have integrated glare diffusers and shade hoods to overcome the brightest daylight conditions. The CD-7s are designed to accept channels from CAN bus connections—and two CAN bus channels are included so that they can receive and collect data from AEMnet-enabled devices. Seven ultra-bright LEDs span the top of the display housing for rpm and shift light indication. You can program them to ascend in specific increments based on rpm range, and flash when it's time to shift. Brightness is also programmable on the fixed color LEDs.

Two large buttons are included on the face of the display, allowing easy page changing and memory resetting—even with driving gloves on. These button functions are duplicated on the rear connector, allowing you to mount remote buttons on the steering wheel, if desired. Two additional programmable LEDs are located above the toggle buttons on the sides of the housing. AEM offers the CD-7 as "display only" (non-logging) or with built-in logger (CD-7L). The units are available in either a cast aluminum or carbon fiber composite housing—with sealed connectors on the rear and anti-vibration mounts.
