On sale
Acl
ACL Subaru EJ20/EJ22/EJ25 (For Thrust in #5 Position) Standard Size High Performance Main Bearing Se
acl5M8309H-STD
A$212.16
A$262.89
ACL Honda J35 3471cc V6 SOHC 4v Standard Size Race Series Main Bearing Set
ACL Honda J35 3471cc V6 SOHC 4v Standard Size Race Series Main Bearing Set
A$328.52
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
ACL Performance Race Series main bearing sets deliver everything performance bearings should be by utilizing design, metallurgy, engineering, precision quality control, and of course, years of knowledge and experience.
Main bearings feature multi-layered tri-metal copper alloy construction that blends characteristics to provide high strength and excellent seizure resistance. They are manufactured to exact tolerances ensuring a reliable fit and helping to maintain consistent clearances. Main bearings are augmented with extended grooves, as well as other bearing enhancements, like increased crush, bearing eccentricity, and enlarged I.D. chamfers.
ACL Performance Race Series main bearing sets are produced in standard and extra clearance versions, with or without friction reducer coating, and with modifications to meet specific build requirements, such as narrowed bearings that permit additional edge clearance when running crankshafts with exceptionally large fillet radii.
In the heat of competition proven technology always comes through. The choice for your build should always be ACL Performance Race Series engine bearings. Choose the main bearing set designed for your vehicle.
Product Overview

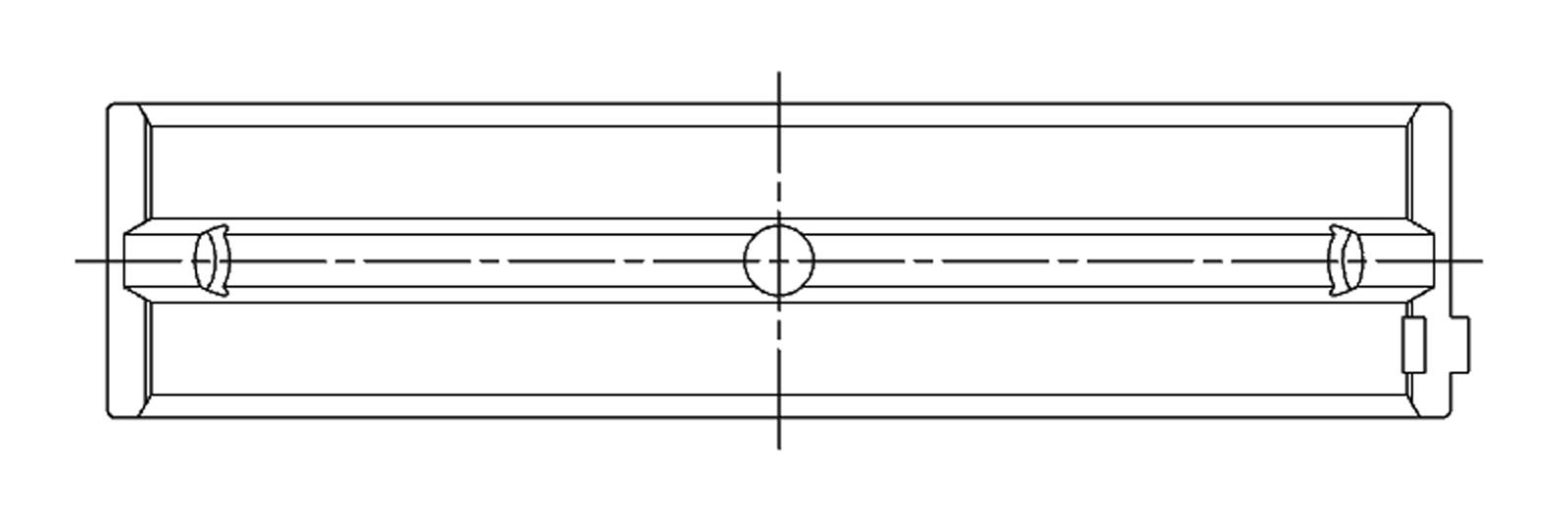

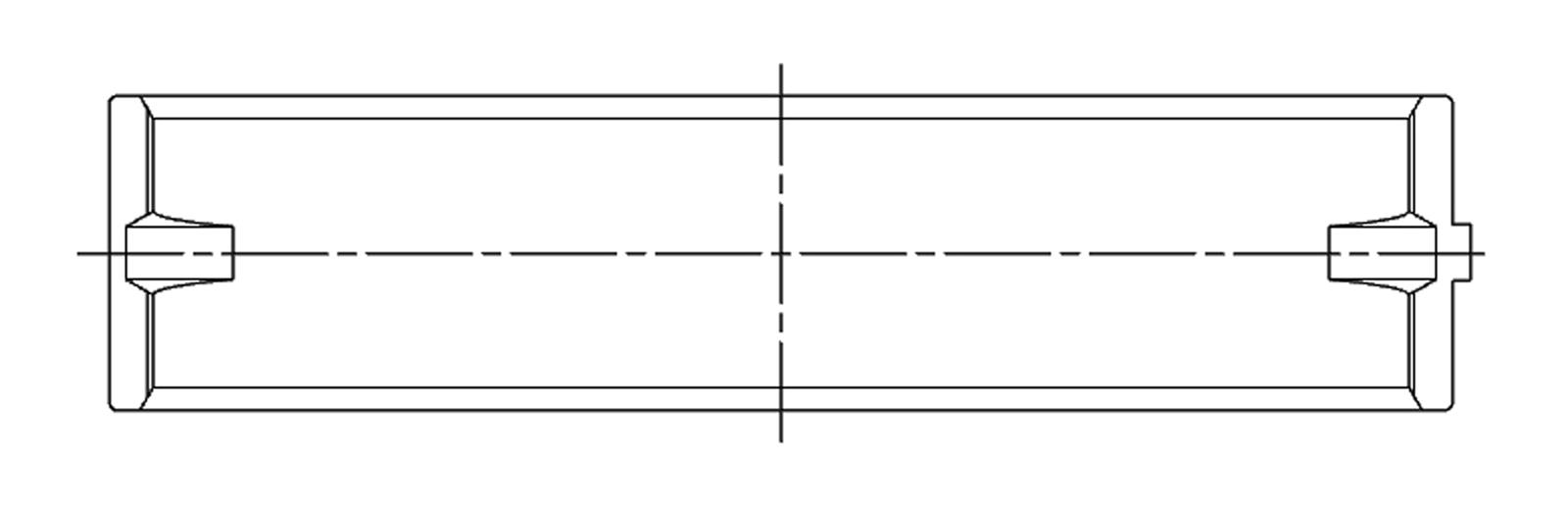

ACL Honda J35 3471cc V6 SOHC 4v Standard Size Race Series Main Bearing Set
Product Details
| Description: | Honda J37A Series 3664cc V6 SOHC 4v |
|---|---|
| Grade Type: | Performance |
| Max Wall: | 2.489 |
| Outside Diameter: | 3.0315 |
| Part Number: | acl4M1996HX-STD |
| Shaft Diameter: | 2.8337 |
| Width: | 0.707 |
Part Type
Main Bearings
Specifications
- Product Attributes - Brand
- ACL Race Series Performance Engine Bearings
- Product Attributes - Manufacturer's Part Number
- 4M1996HX-STD
- Product Attributes - Part Type
- Main Bearings
- Product Attributes - Product Line
- ACL Performance Race Series Main Bearing Sets
- Product Attributes - UPC
- 9315726447369
- Product Attributes - Bearing Usage
- Performance
- Product Attributes - Engine Crankshaft Undersize (in.)
- Stock
- Product Attributes - Engine Crankshaft Undersize (mm)
- Stock
- Product Attributes - Grooved Bearing
- Yes
- Product Attributes - Groove Location
- Upper and lower
- Product Attributes - Groove Style
- 3/4
- Product Attributes - Thrust Bearing Oversize
- Stock
- Product Attributes - Bearing Material
- Tri-metal copper-lead alloy
- Product Attributes - Quantity
- Sold as a set of 4.
- Product Attributes - Notes
- .0005 in. thinner wall bearing for .001 in. extra oil clearance.
Reference Information
| Brand Name/s | Acl |
|---|---|
| StreetFX SKU | acl4M1996HX-STD |
| SFX Item ID | 4072881 |
| Supplier Item Code | 4072881 |
| Manufacturer SKU | 4M1996HX-STD |
| Manufacturer UPC | 9315726447369 |
| Alternative References | PEB-4M1996HX-STD, J35, 3471cc |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
